Repair (#77)
| Status | Repaired |
|---|---|
| Location | Yuhua |
| Date | 20 Oct. 2025 |
Faults
No power (wall socket)
The device does not show any signs of life when plugged in and turned on.
Problem description

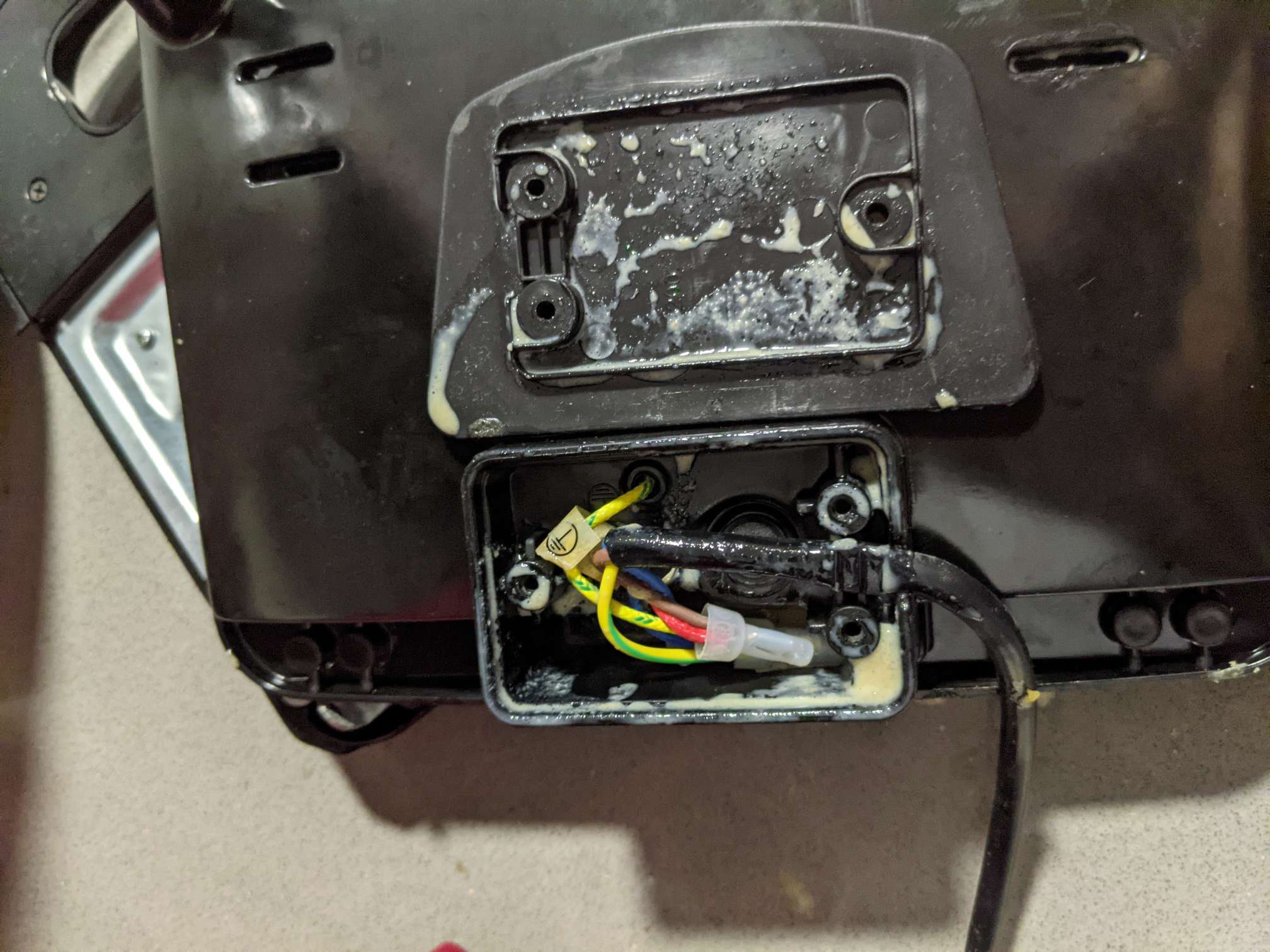

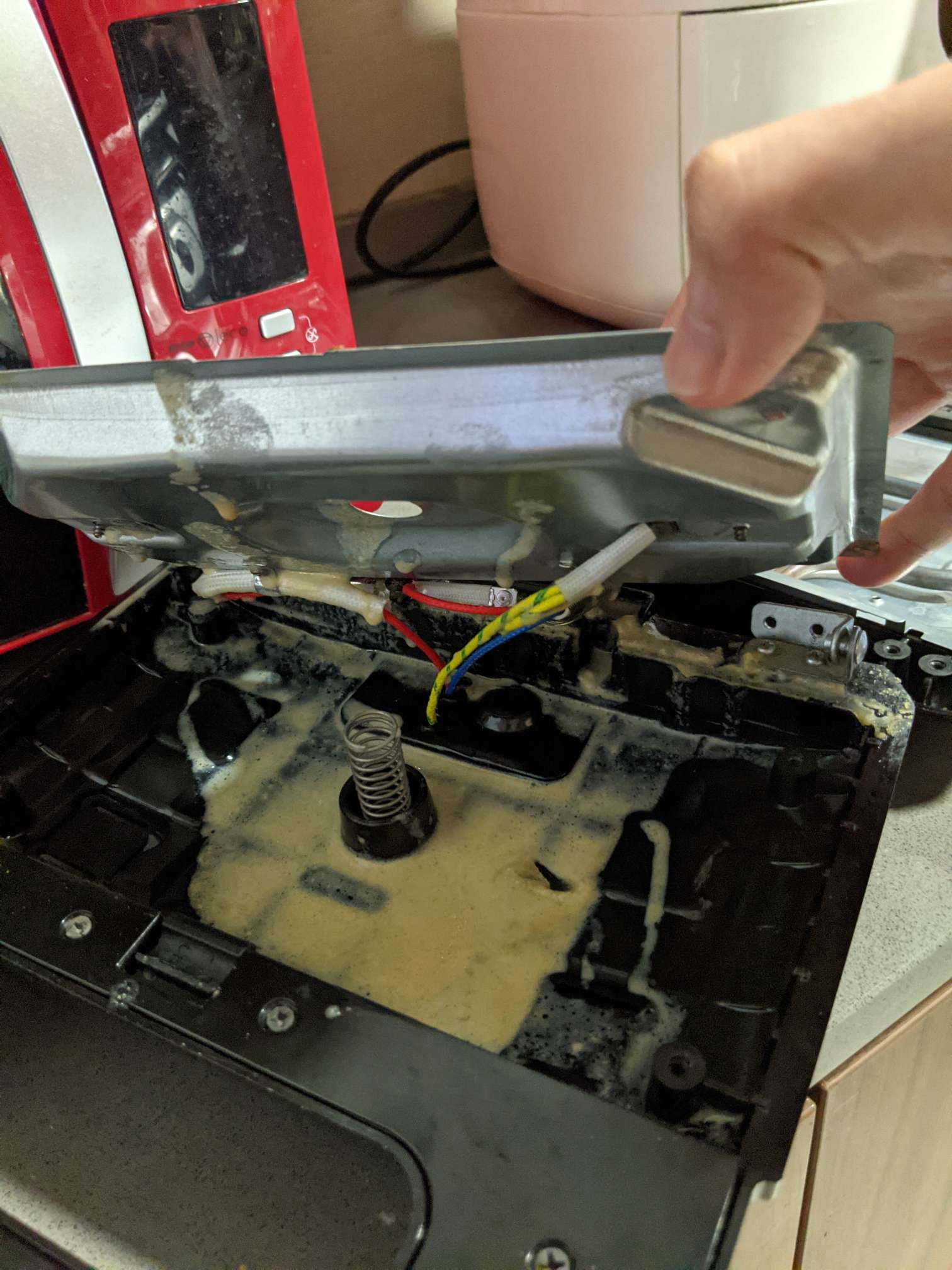

it suffered liquid damage to the internals. it tripped the house circuit breaker.
Photos
Repair Notes
all the parts have dried. reassembled and tested, the appliance turns on without tripping any breakers.
when it got hot enough there was a burning smell/smoke coming from small amounts of caked-on pancake mix burning off. it lasted about a few minutes. after it works normally.

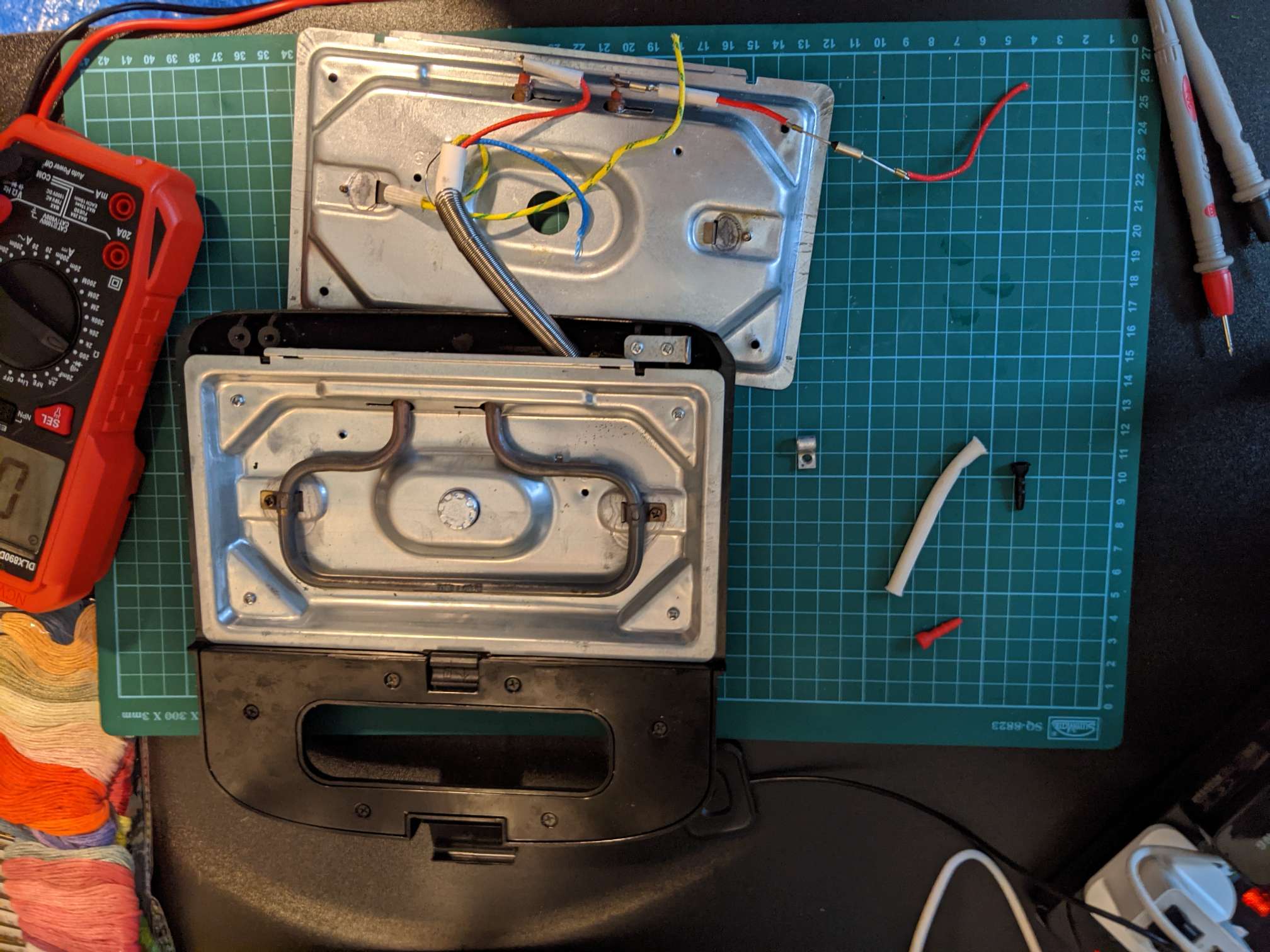

checked
thermal fuse OK
plug 7a fuse OK

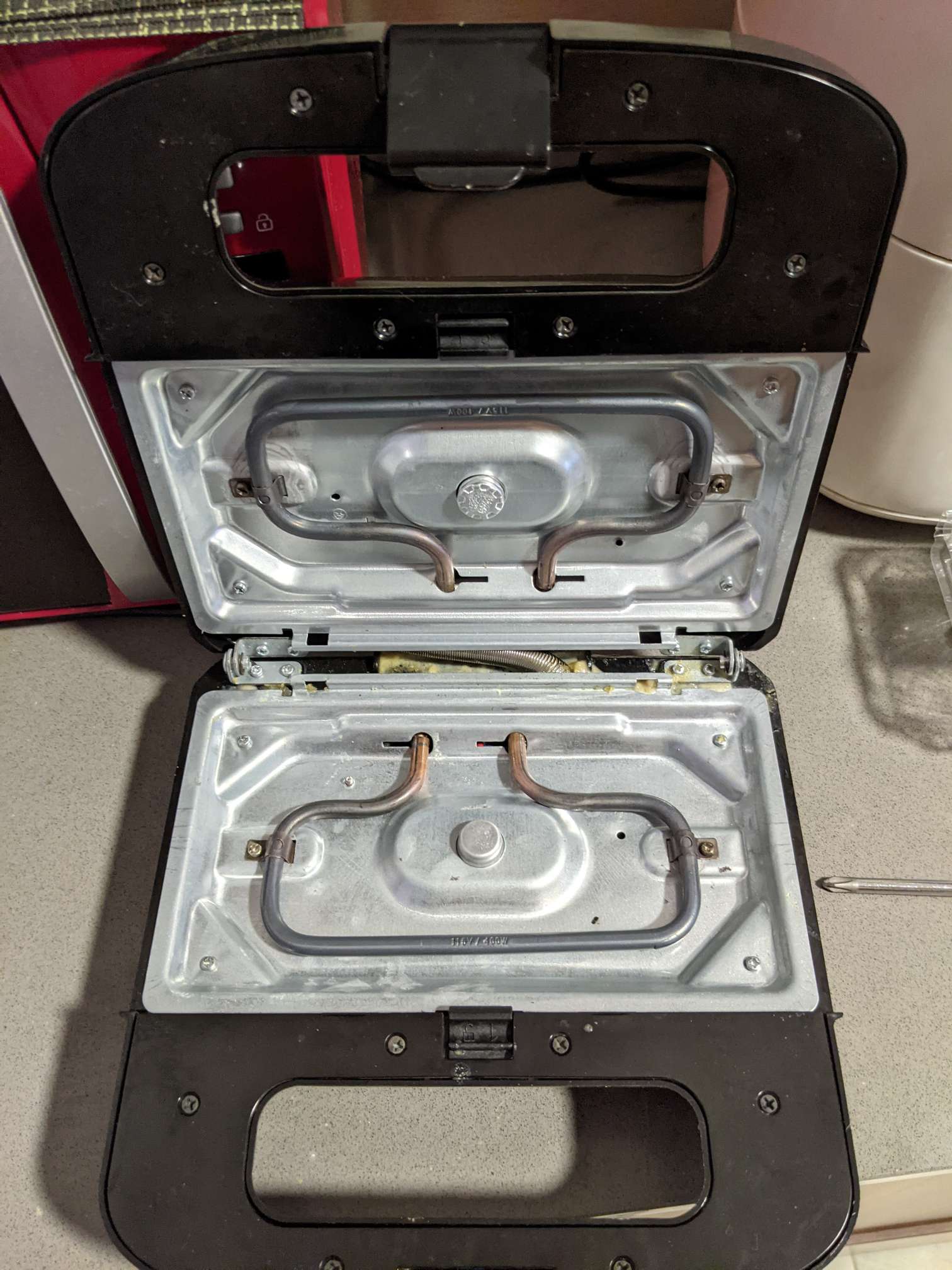

heating coil resistance OKwaiting for components to dry for reassembling for testing

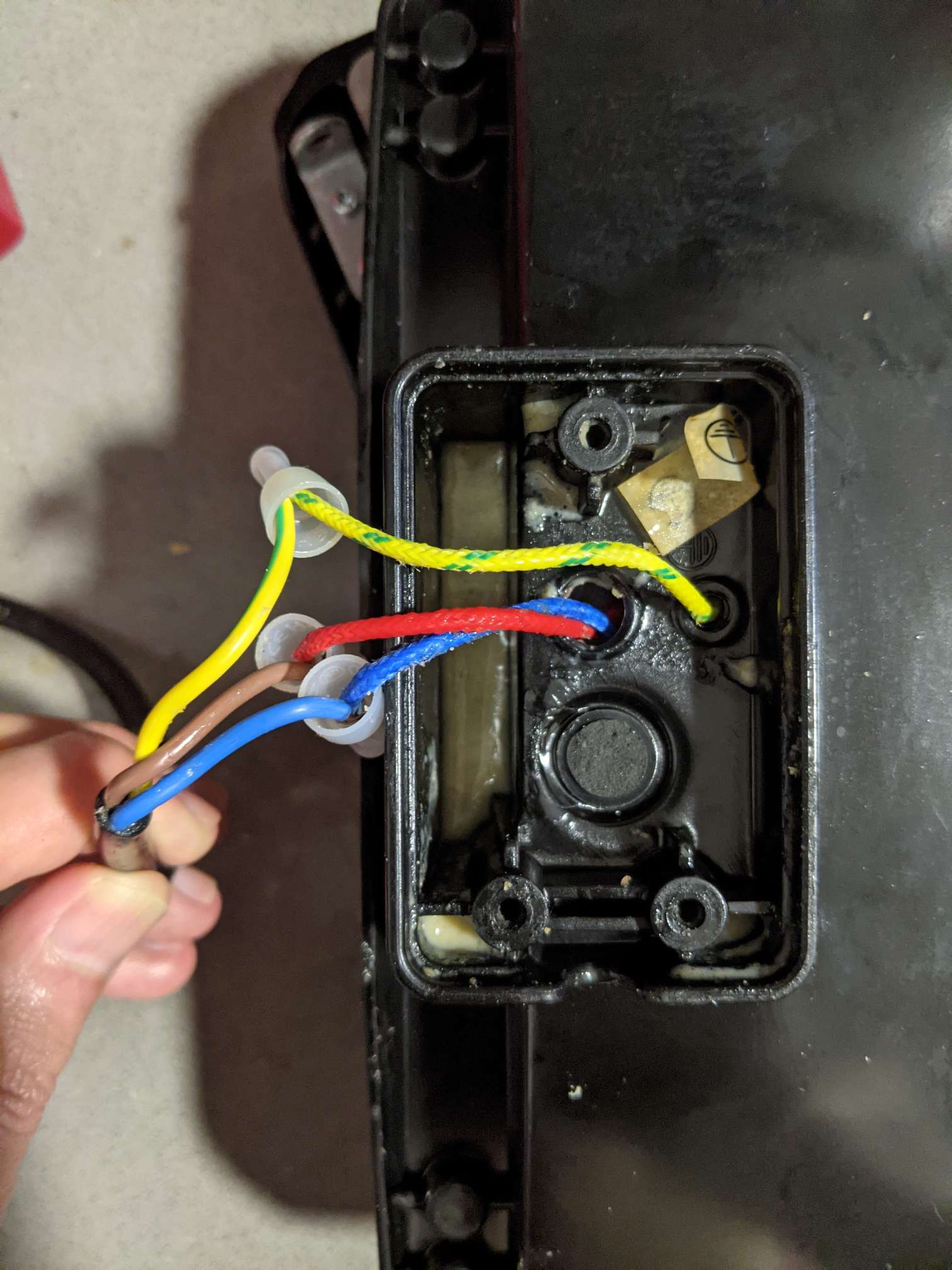

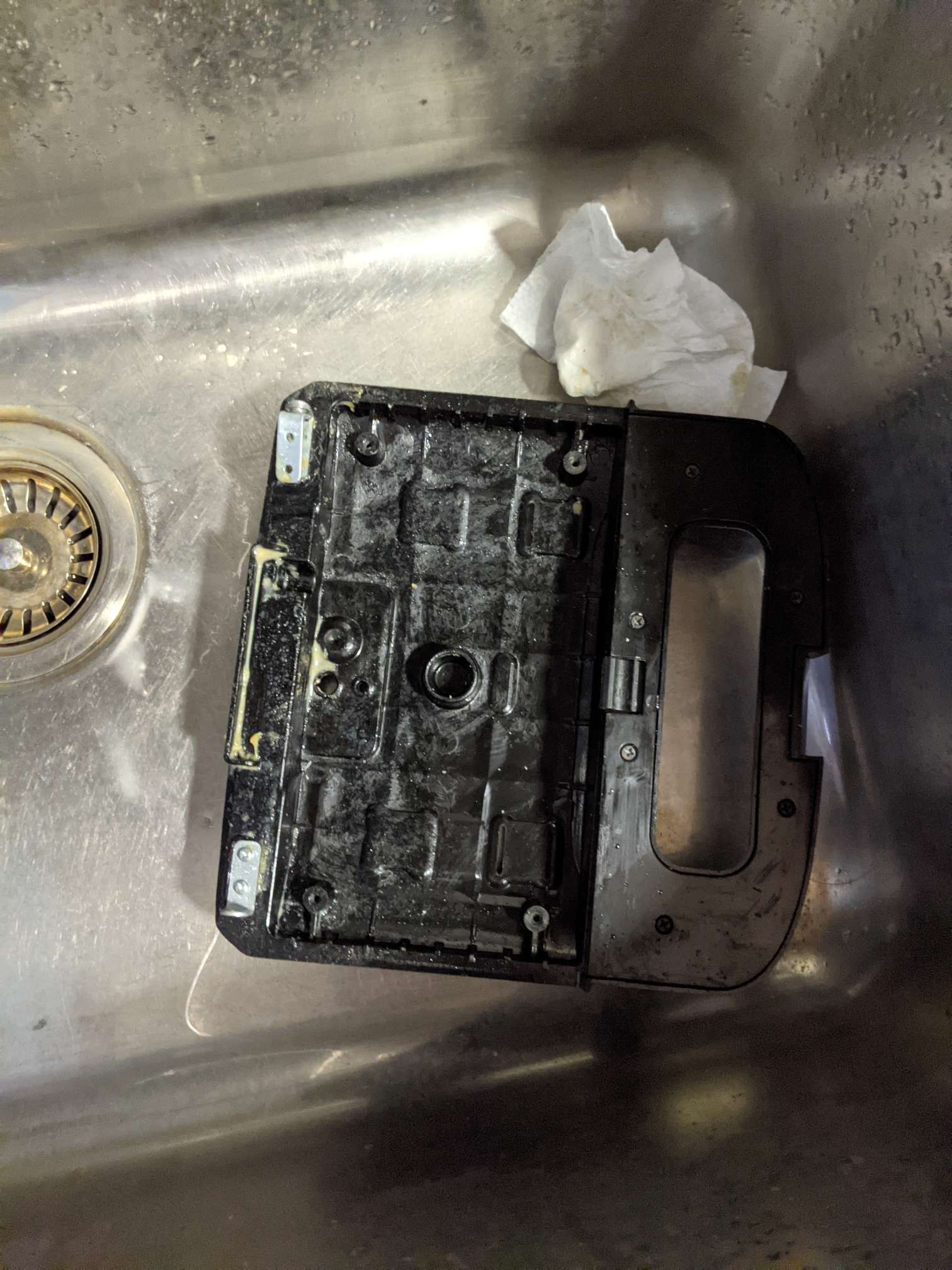

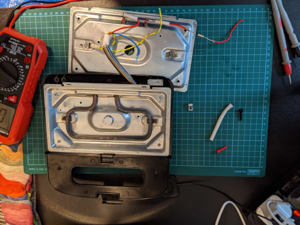

dismantle and cut wires to allow scrubbing of flooded plastic shell with soap and water.

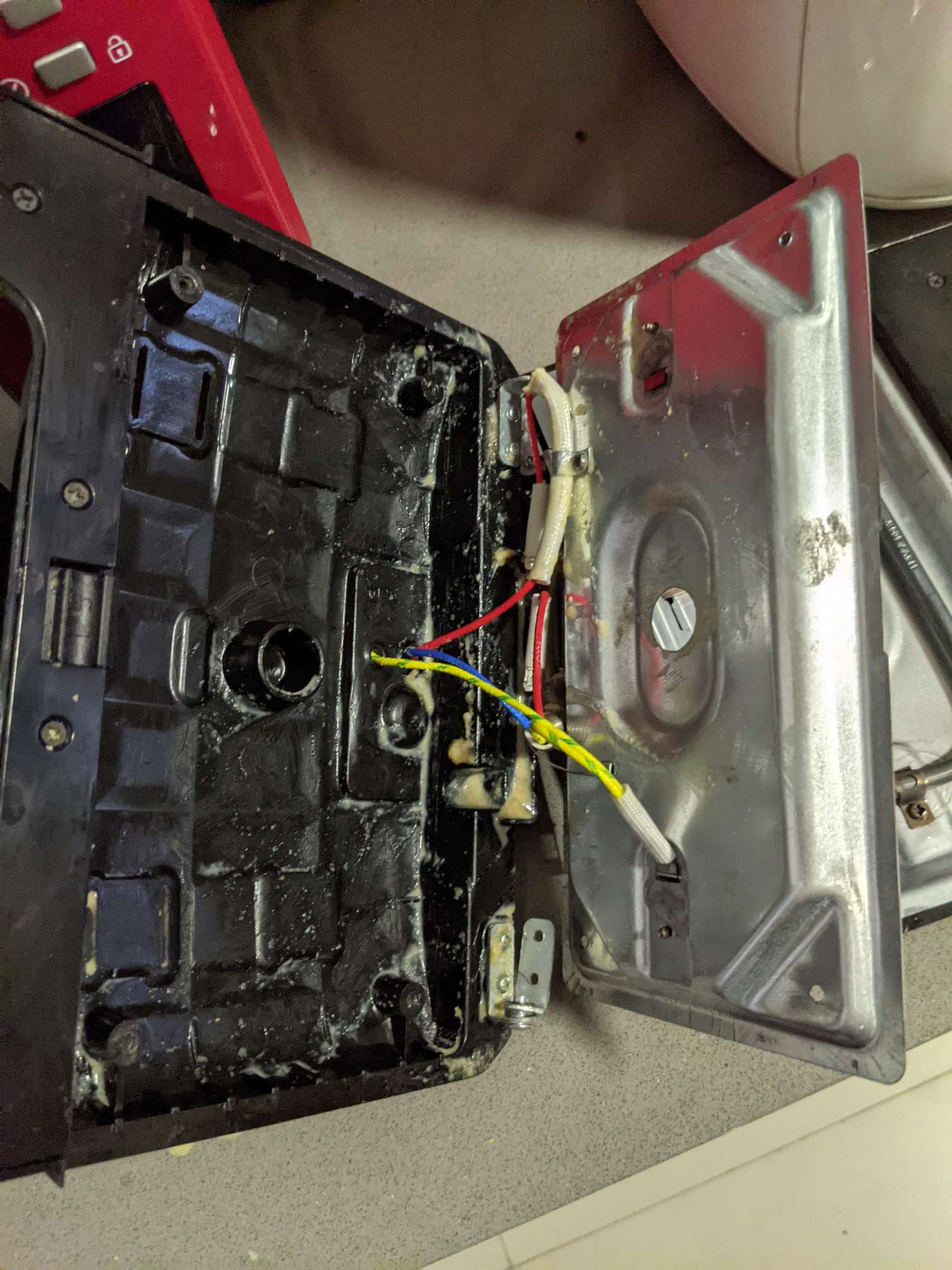

many parts needed spot cleaning including the leads of the heating element, the thermal fuse/sleeve, hinges/screws
