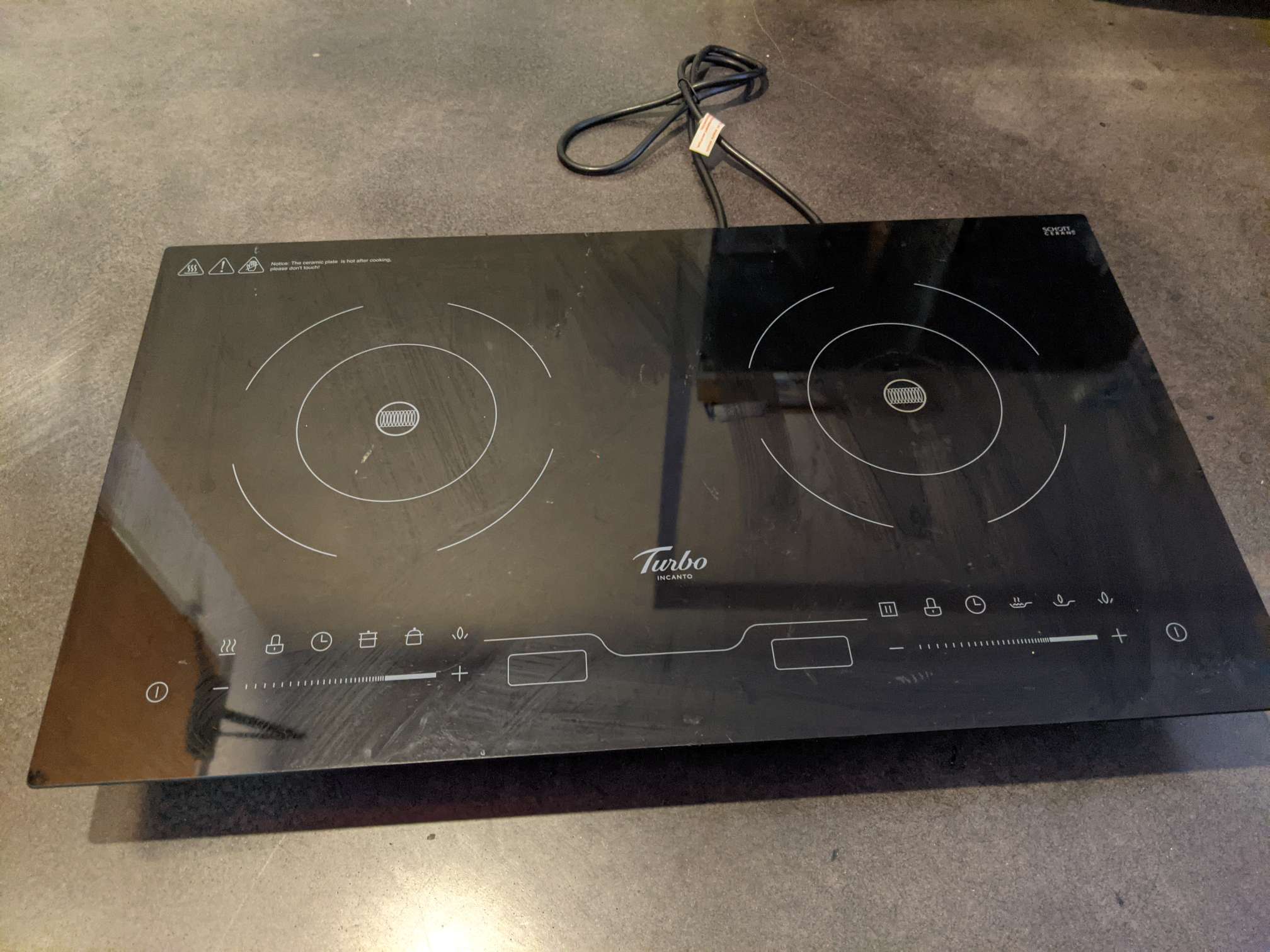

Item (#66)
| Type | |
|---|---|

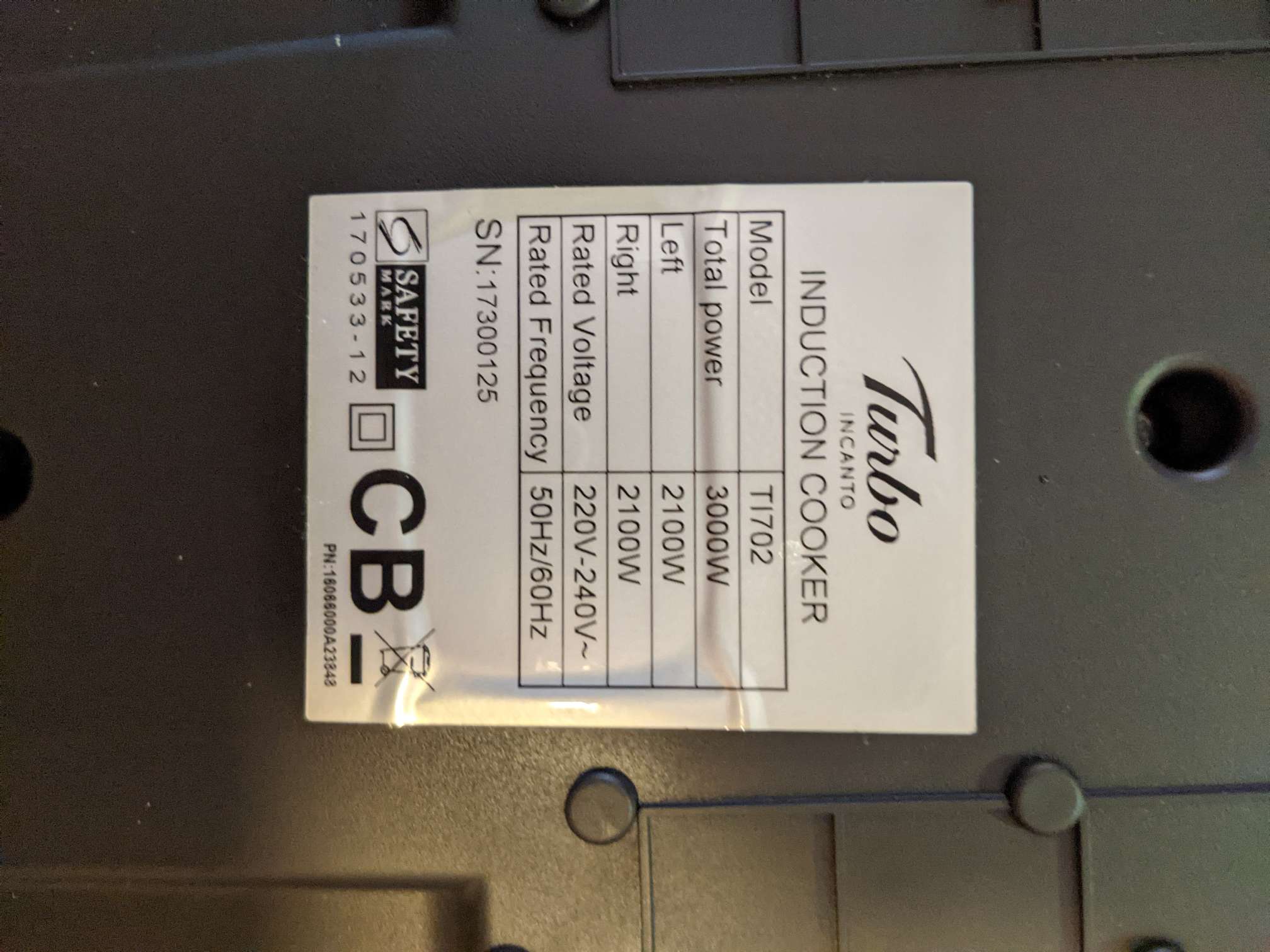

| Brand | Turbo |
| Model | TI702 / Incanto |
| Serial | 17300125 |
| Colour | Black |
| Description | dual hob induction cooker 3000w |
Other repairs
Repair (#68)
| Status | Requires parts to repair |
|---|---|
| Location | Yuhua |
| Date | 17 Sept. 2025 |
Faults
No power (wall socket)
The device does not show any signs of life when plugged in and turned on.
Problem description

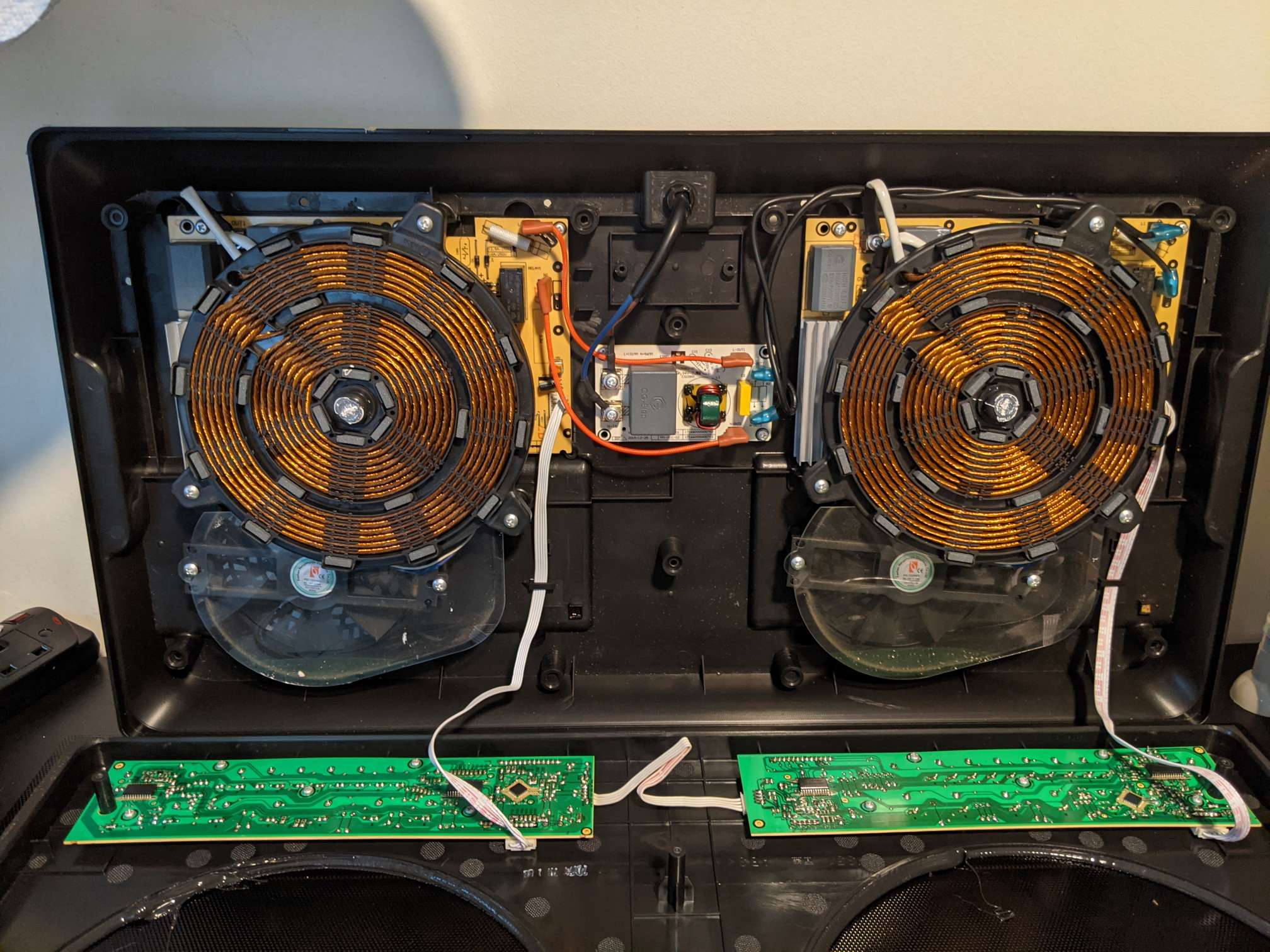

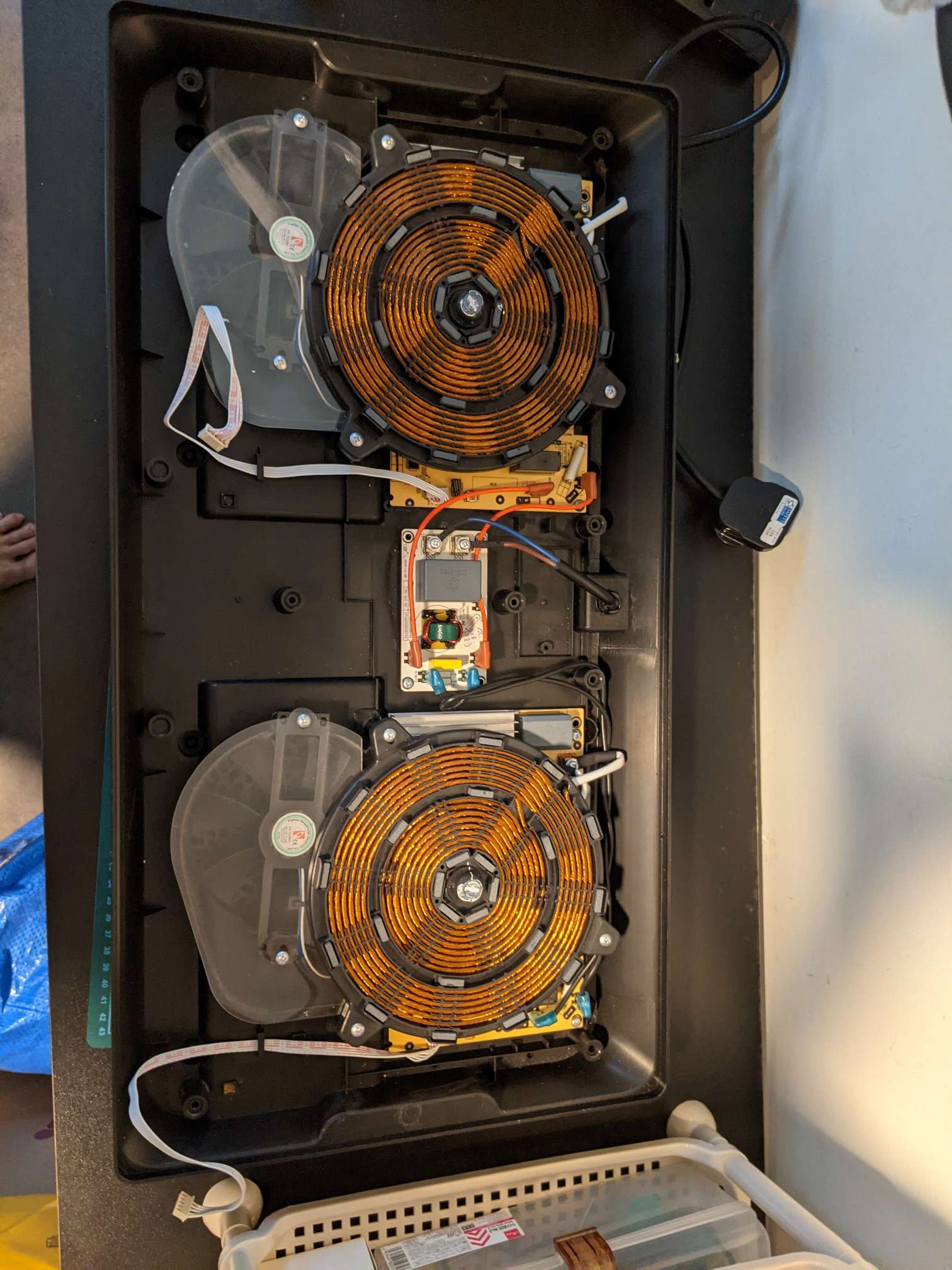

the right hob cannot be powered on.
Photos
Repair Notes

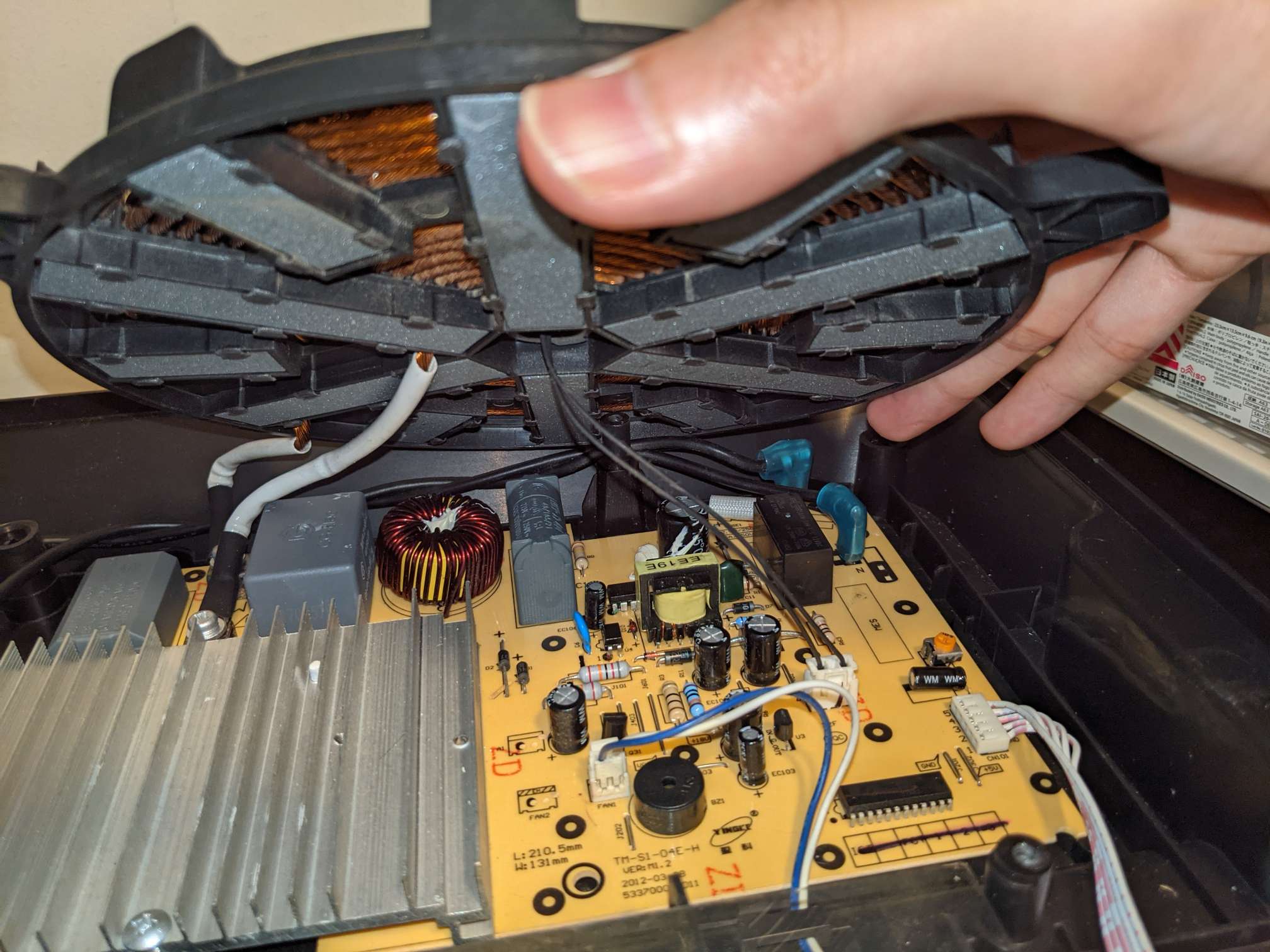

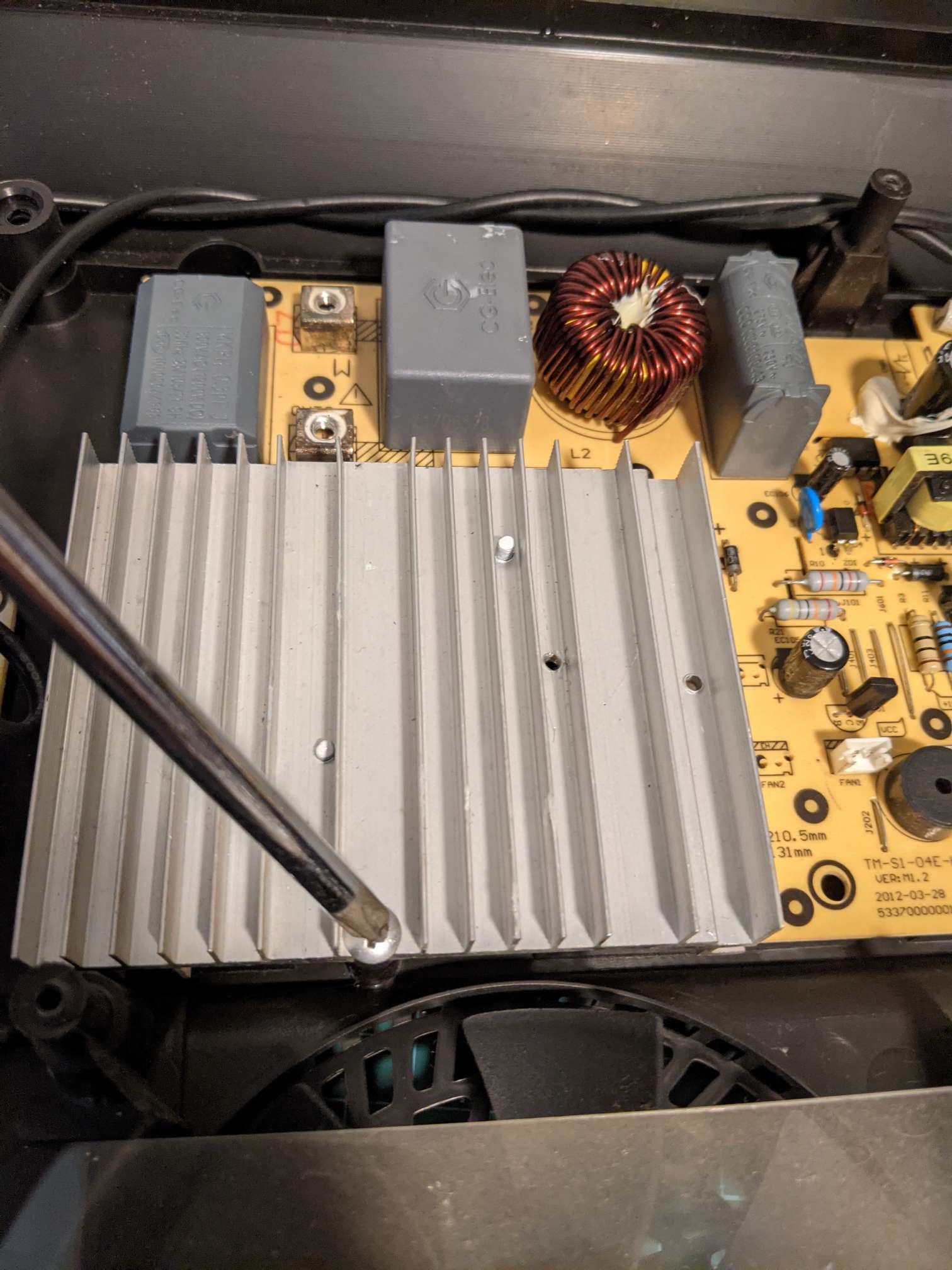

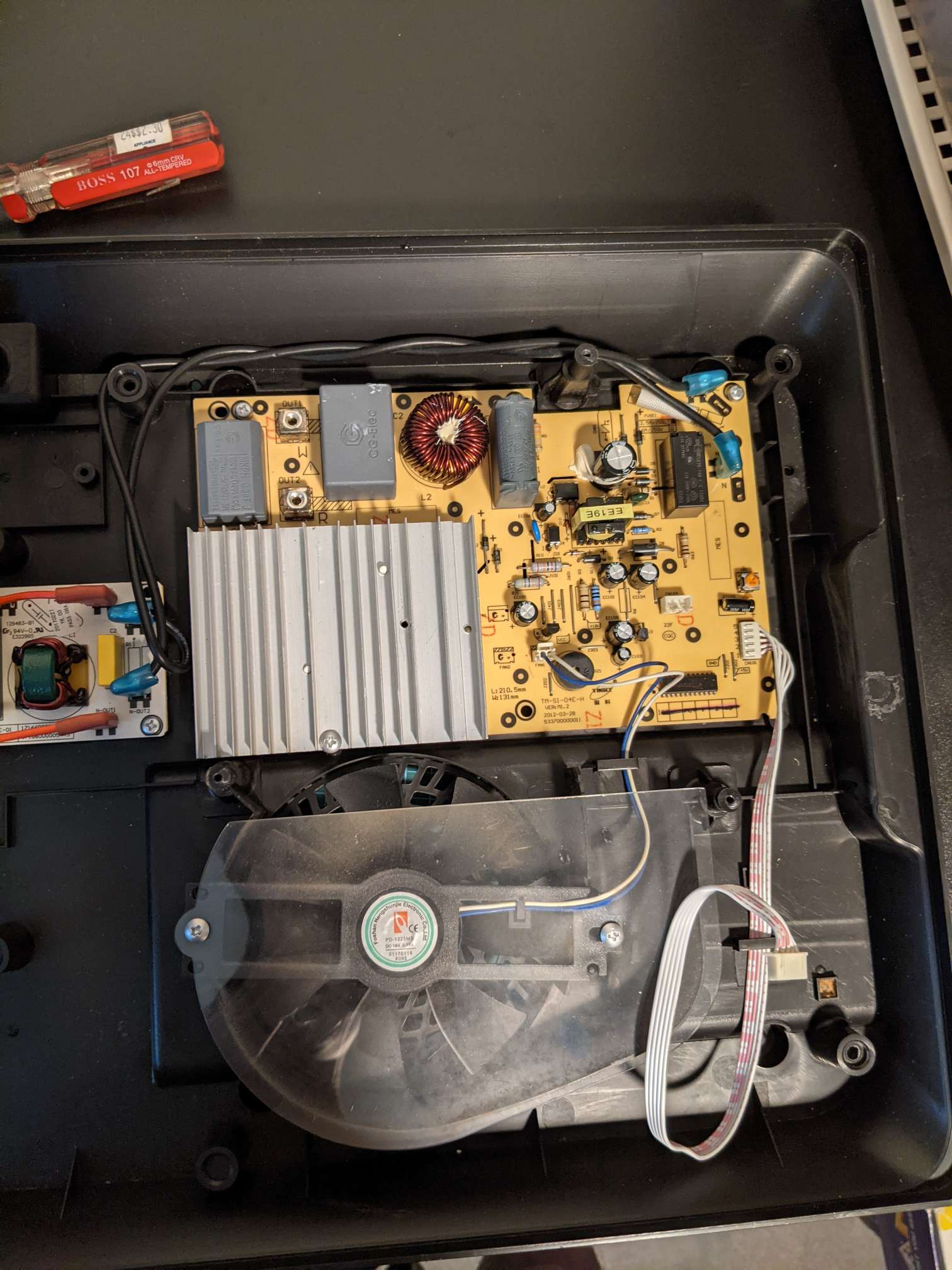

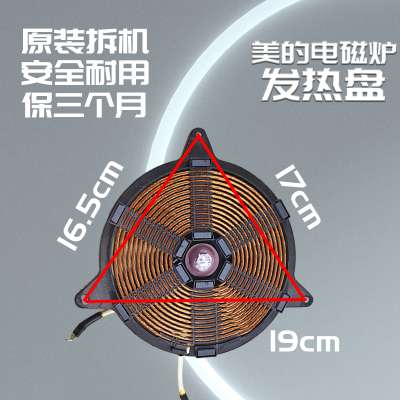

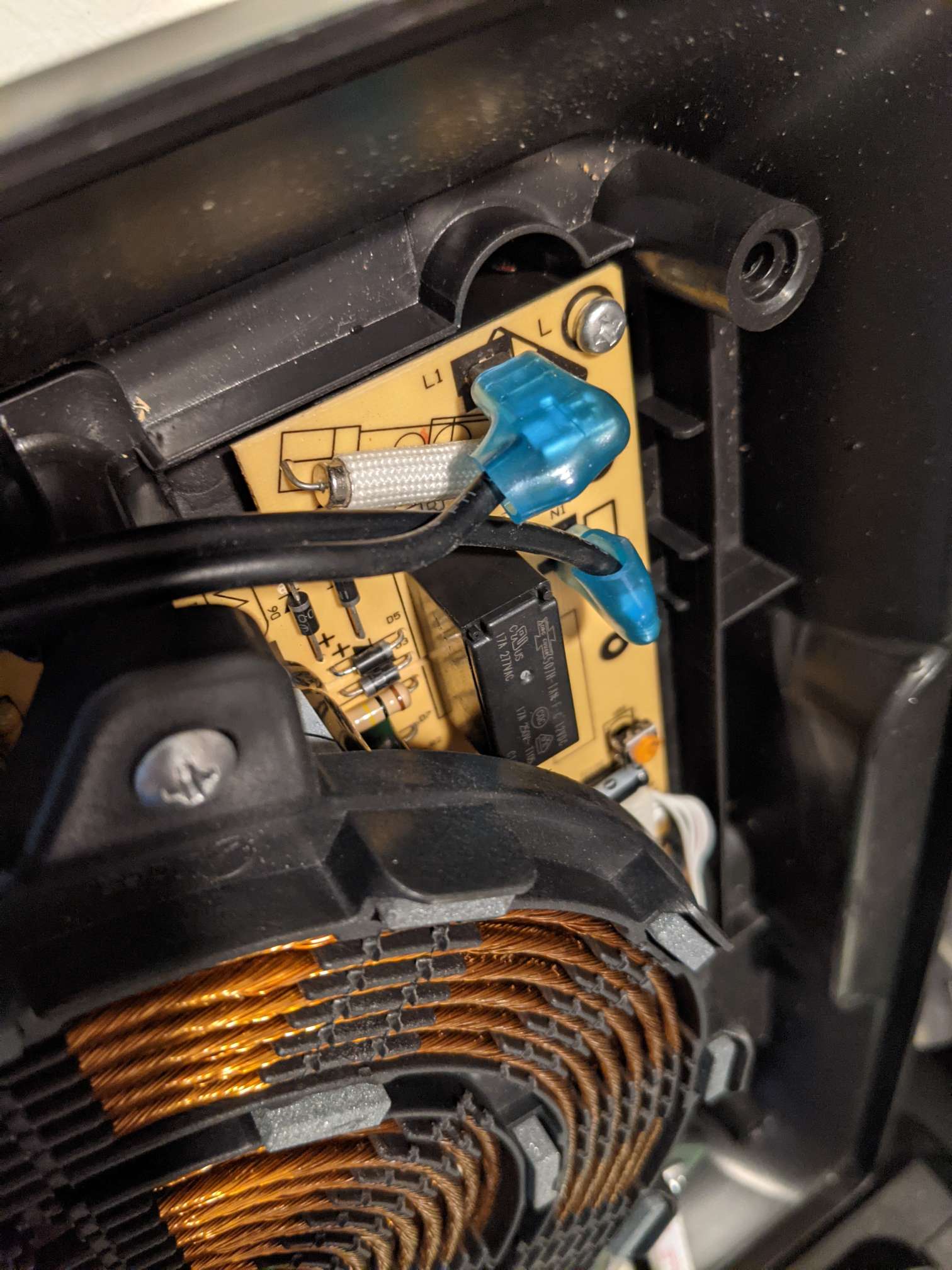

circuit board is tm-s1-04e-h , cannot find exact model but similar ones with 5 pin controls can be found (midea part)

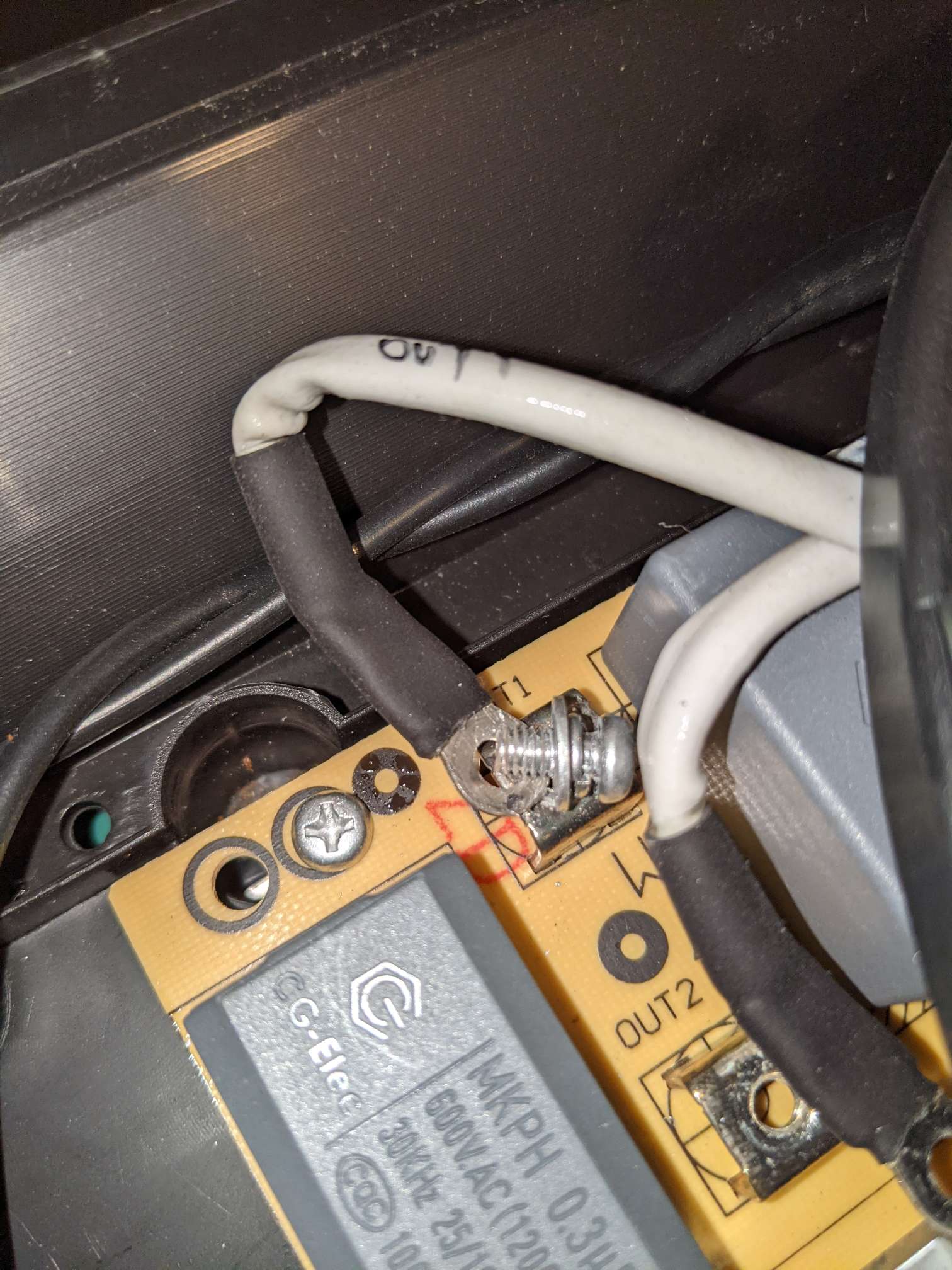

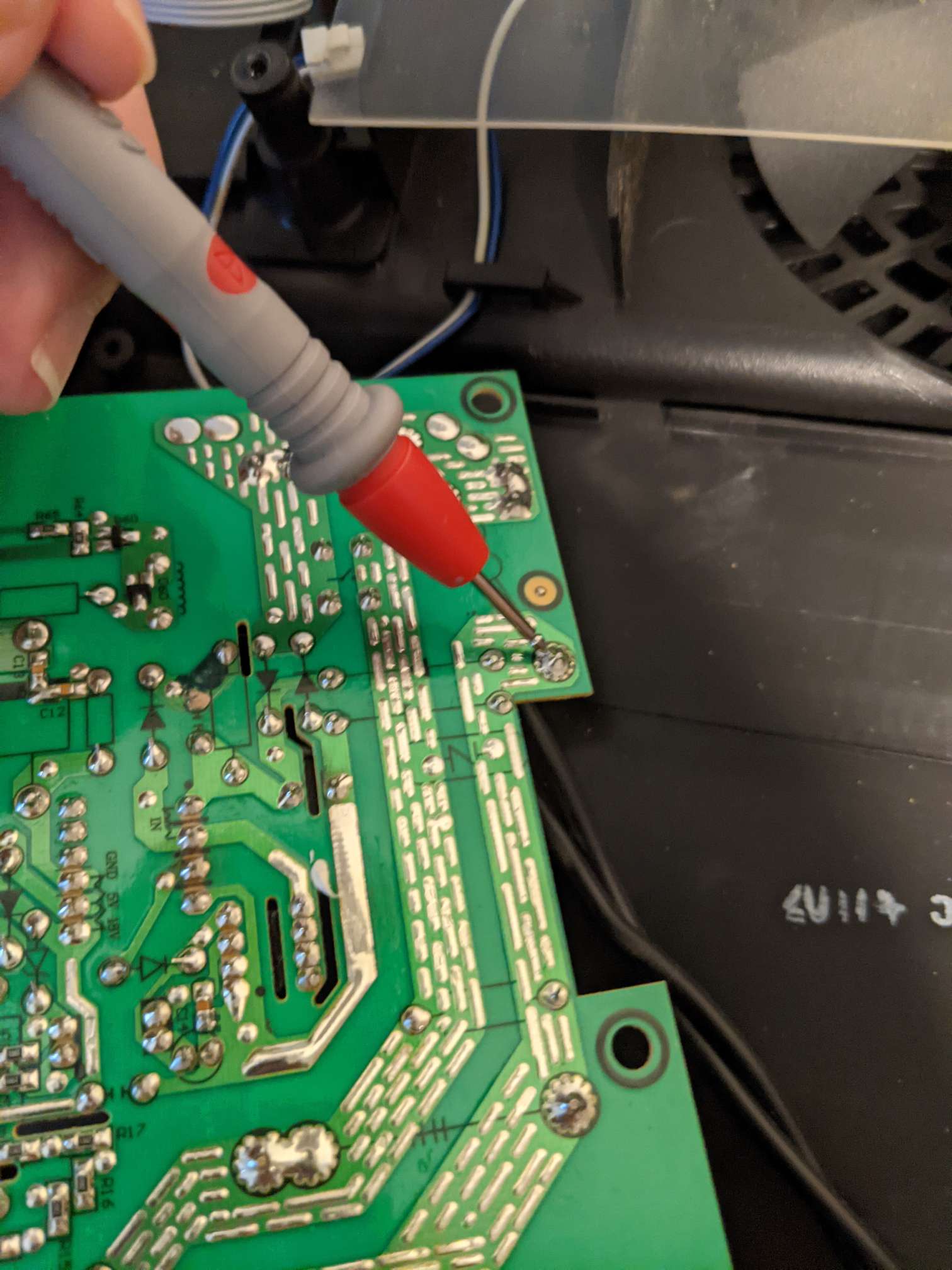

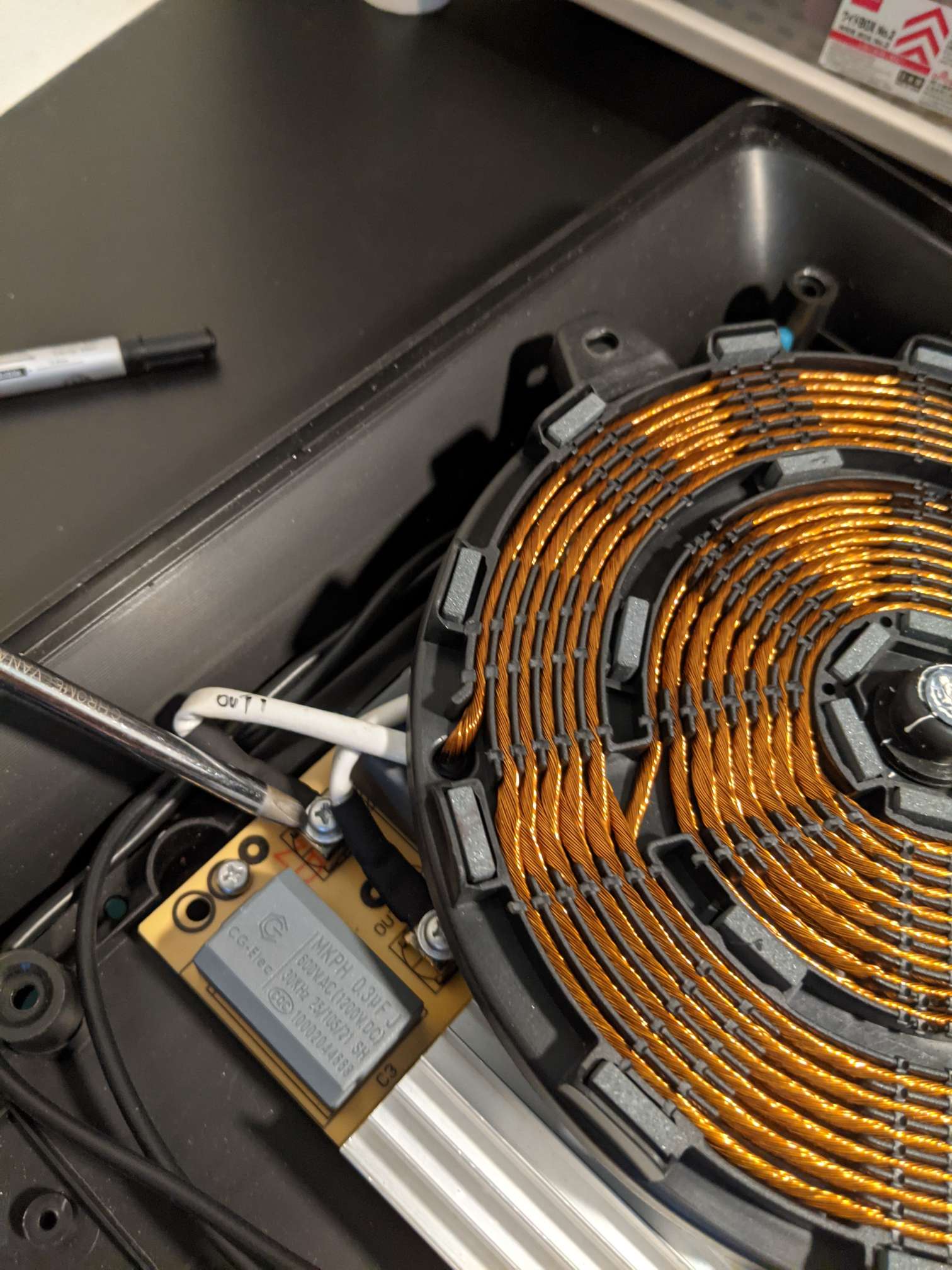

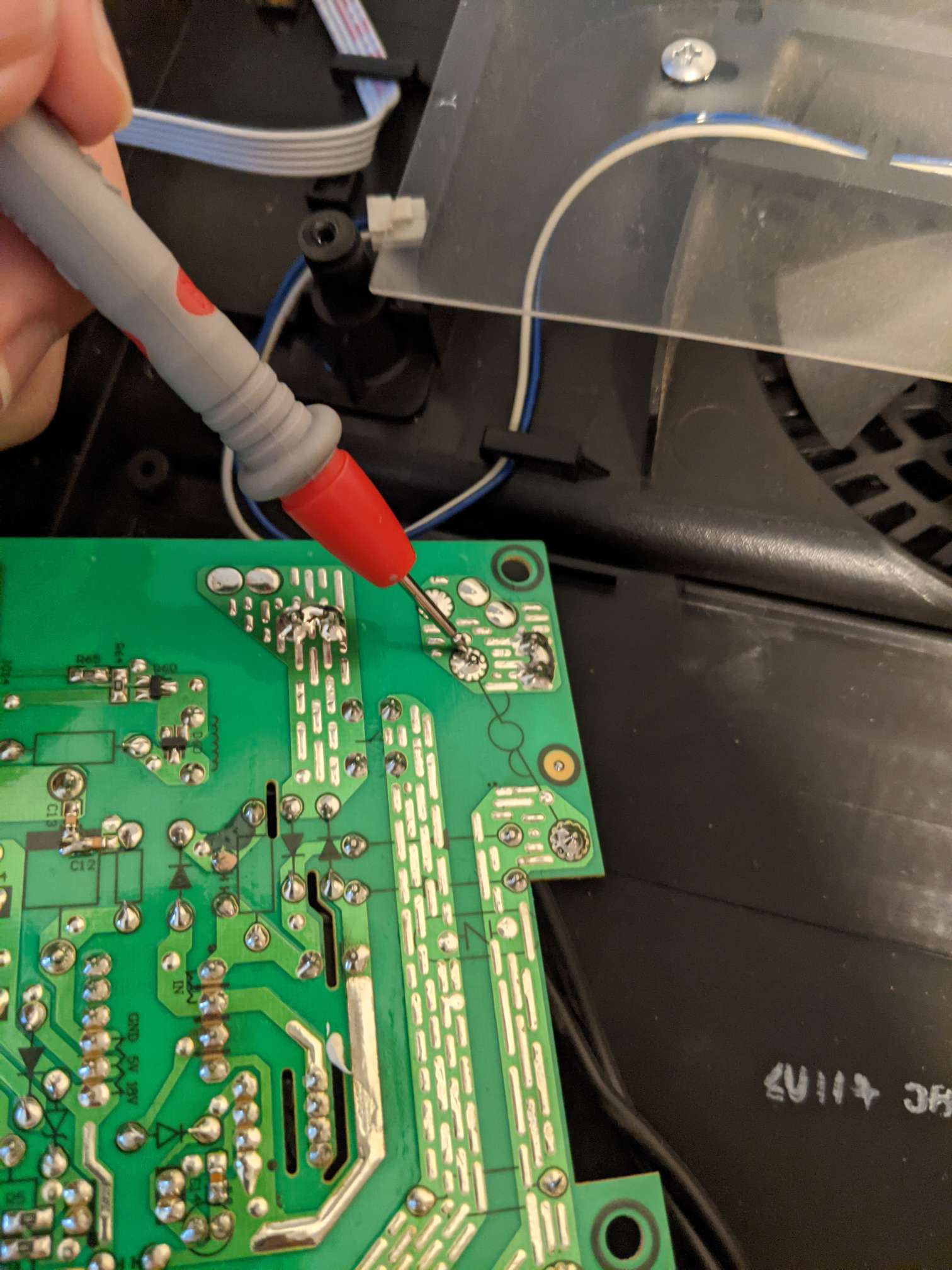

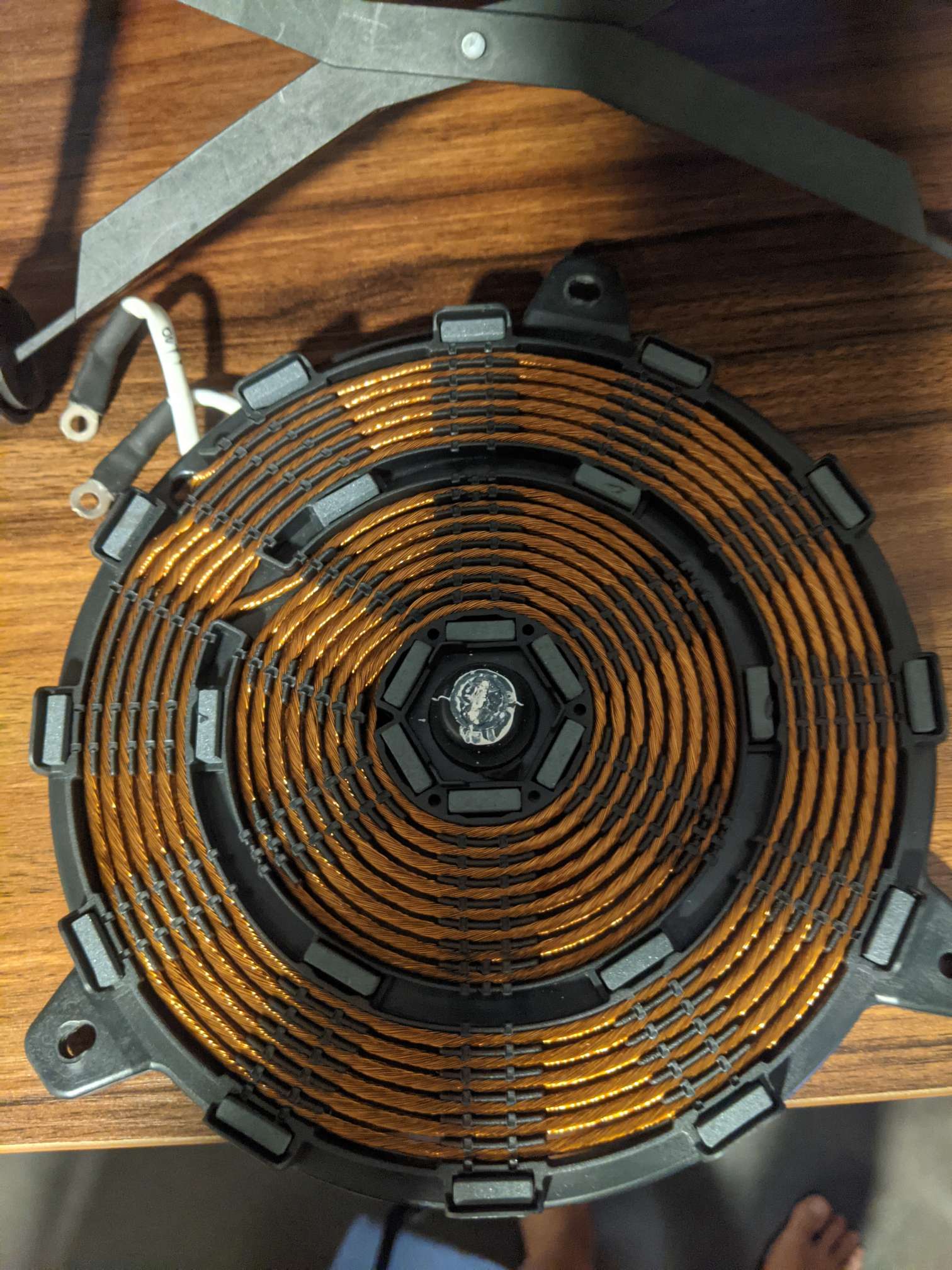

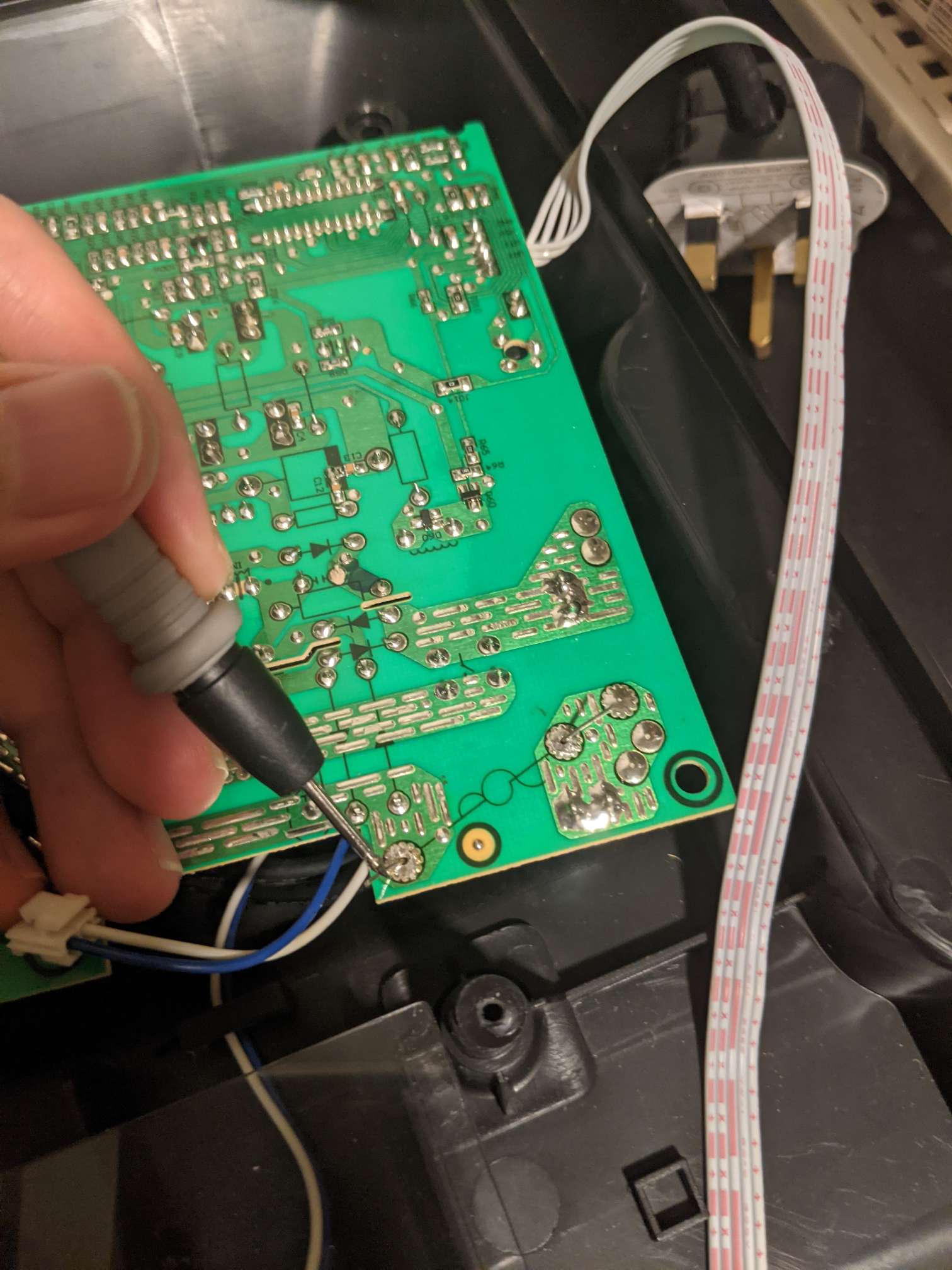

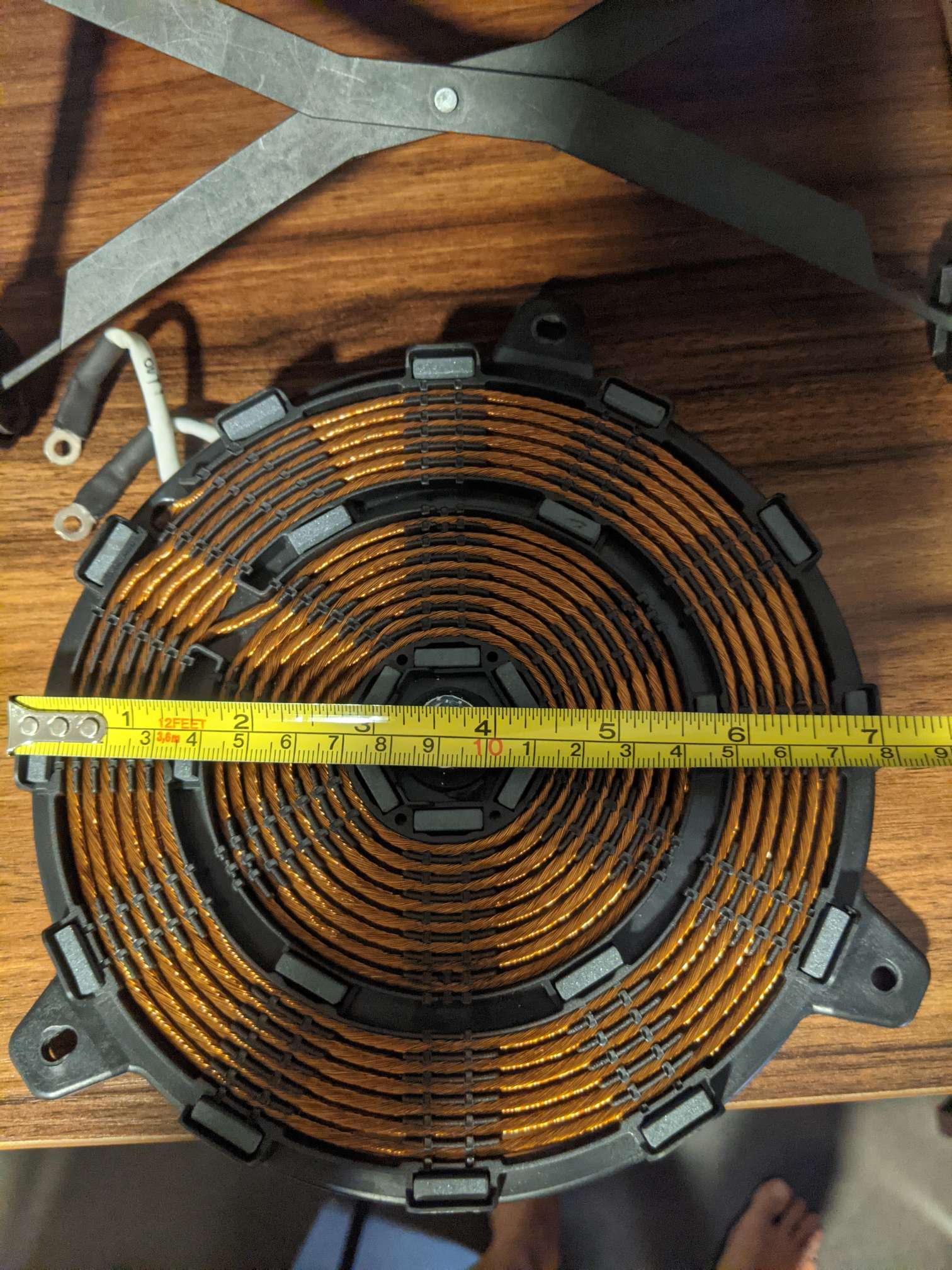

checked resistance of induction coil, it is continuous (2-3ohms). unsure if that's normal

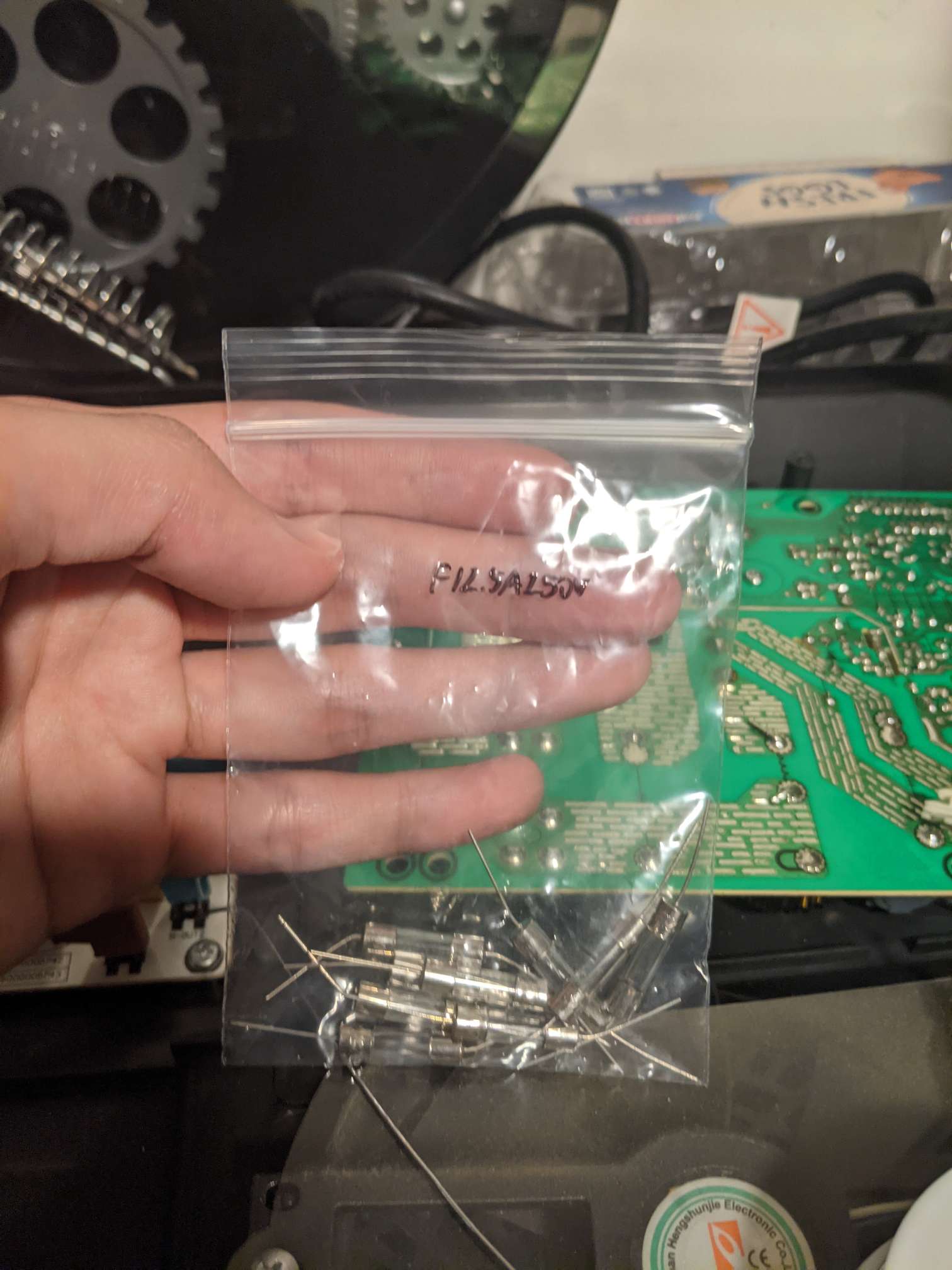

replaced fuse, it immediately blew again. now suspecting induction coil as the root cause of short circuit. can try to change that.

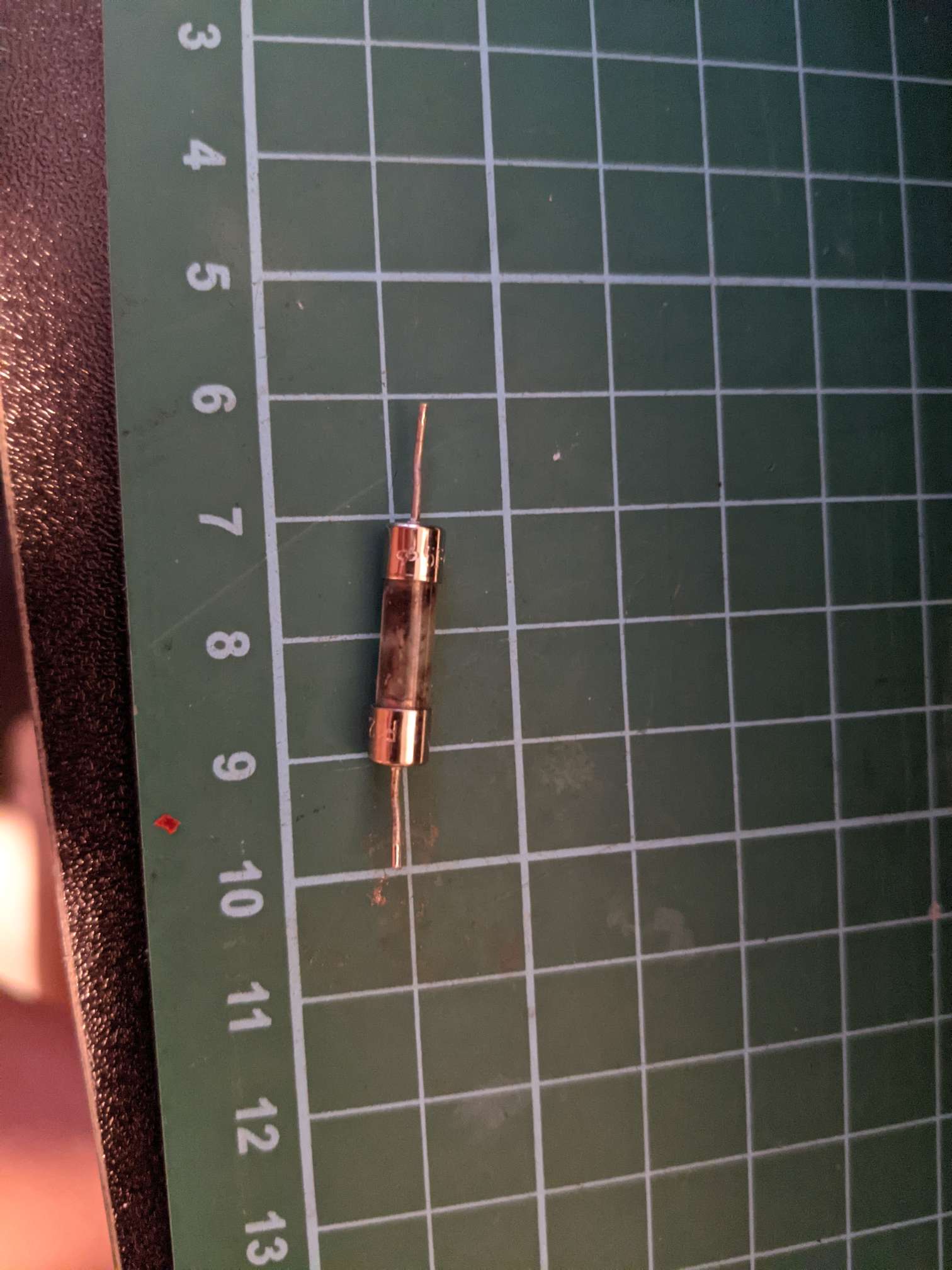

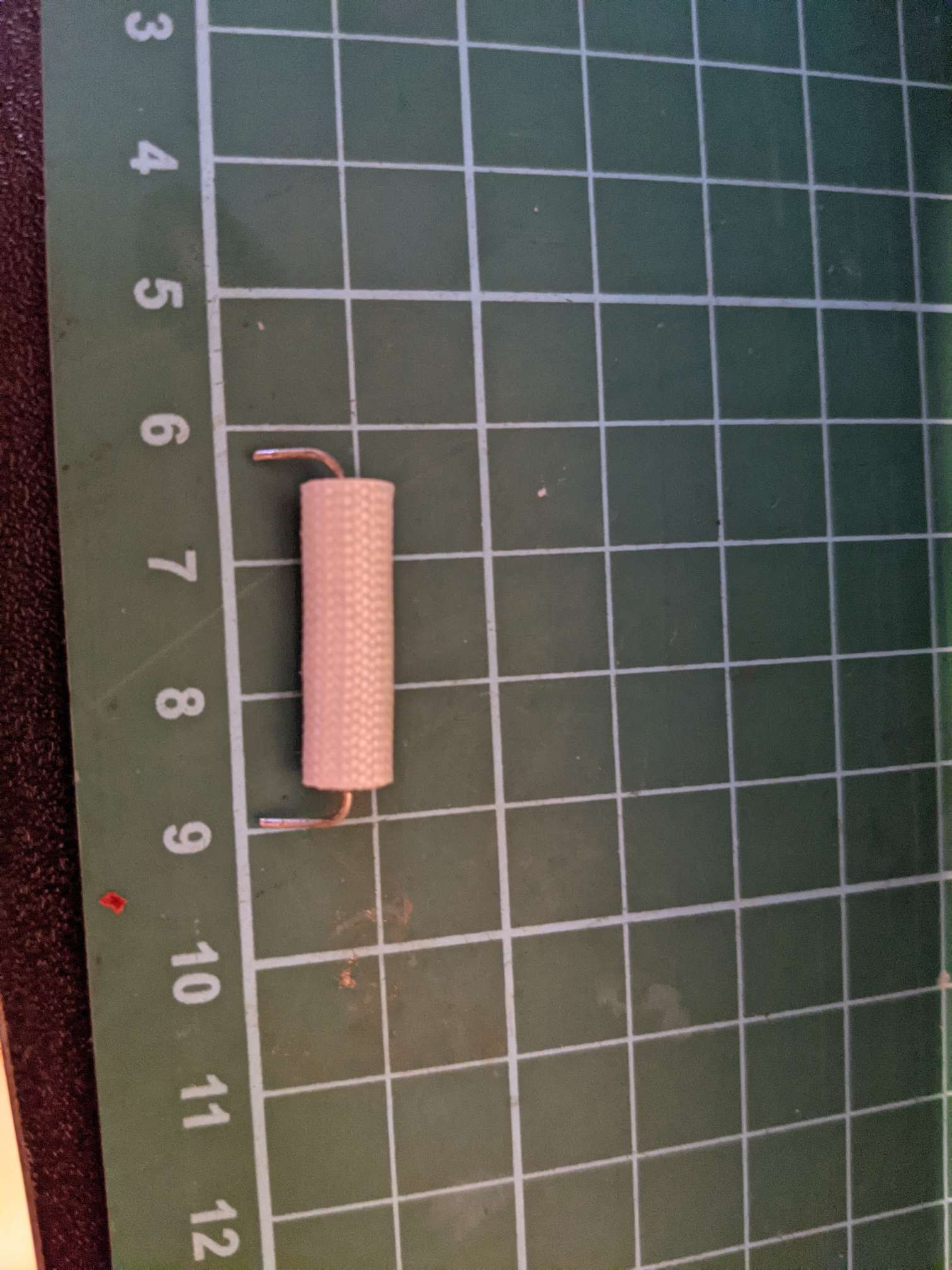

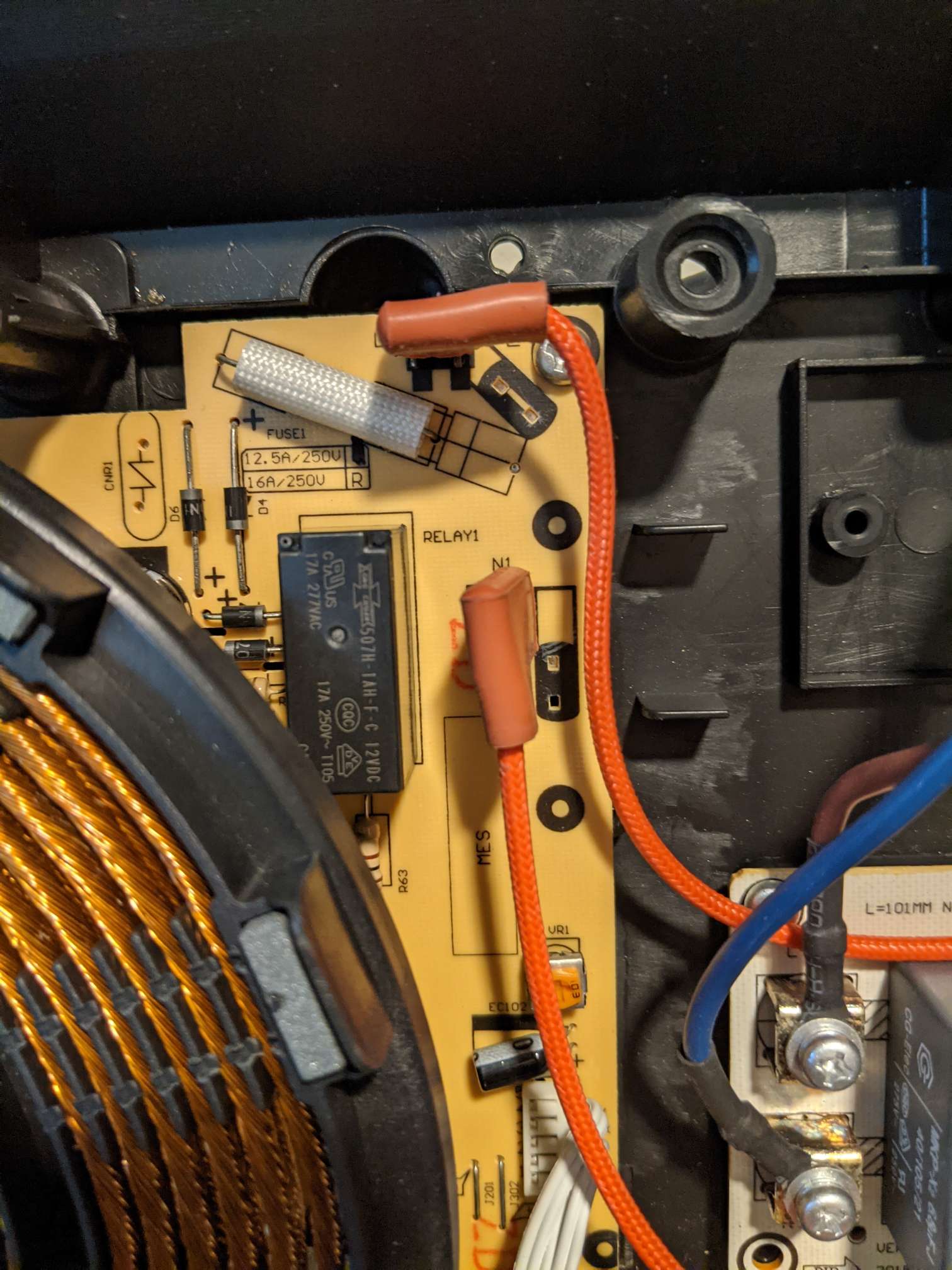

the 12.5a 250v fuse for the right hob has blown. it needs to be replaced.
