Item (#5)
| Type | |
|---|---|
| Brand | electrolux |
| Model | e2cm1-200w / Create 2 |
| Serial | 31700373 |
| Colour | white |
| Description | drip coffeemaker |
Other repairs
Repair (#4)
| Status | Requires parts to repair |
|---|---|
| Location | Yuhua |
| Date | 17 Jan. 2025 |
Faults
No common faults selected
Problem description
cannot on
Photos
Repair Notes
desoldered capacitors to check 1 by 1, one of the 10 uF capacitor is reading only 13 nF. will try to replace it.

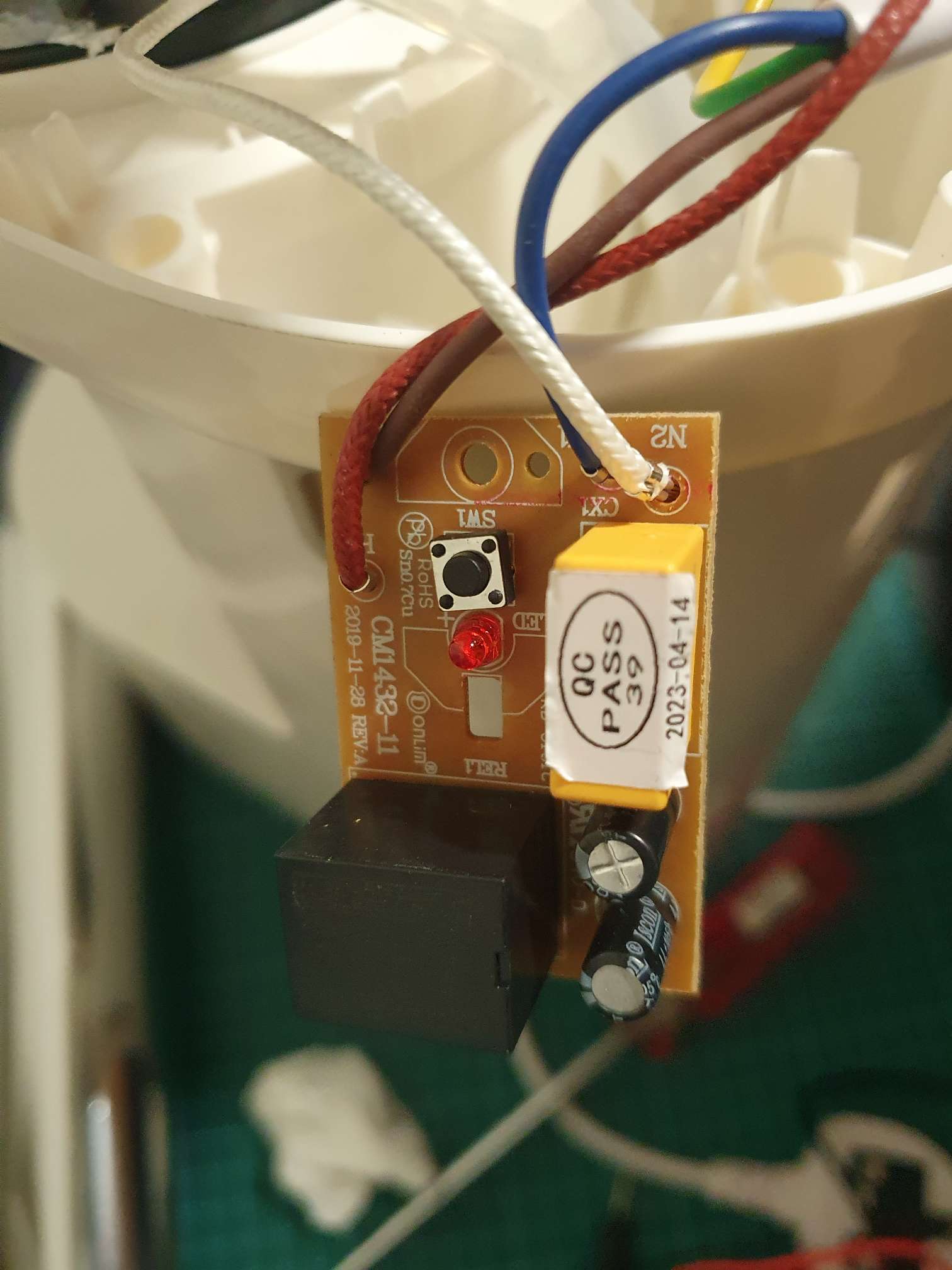

given that the capacitors lead to the input (24v) of the relay (which was the original part that broke) this seems a likely root cause

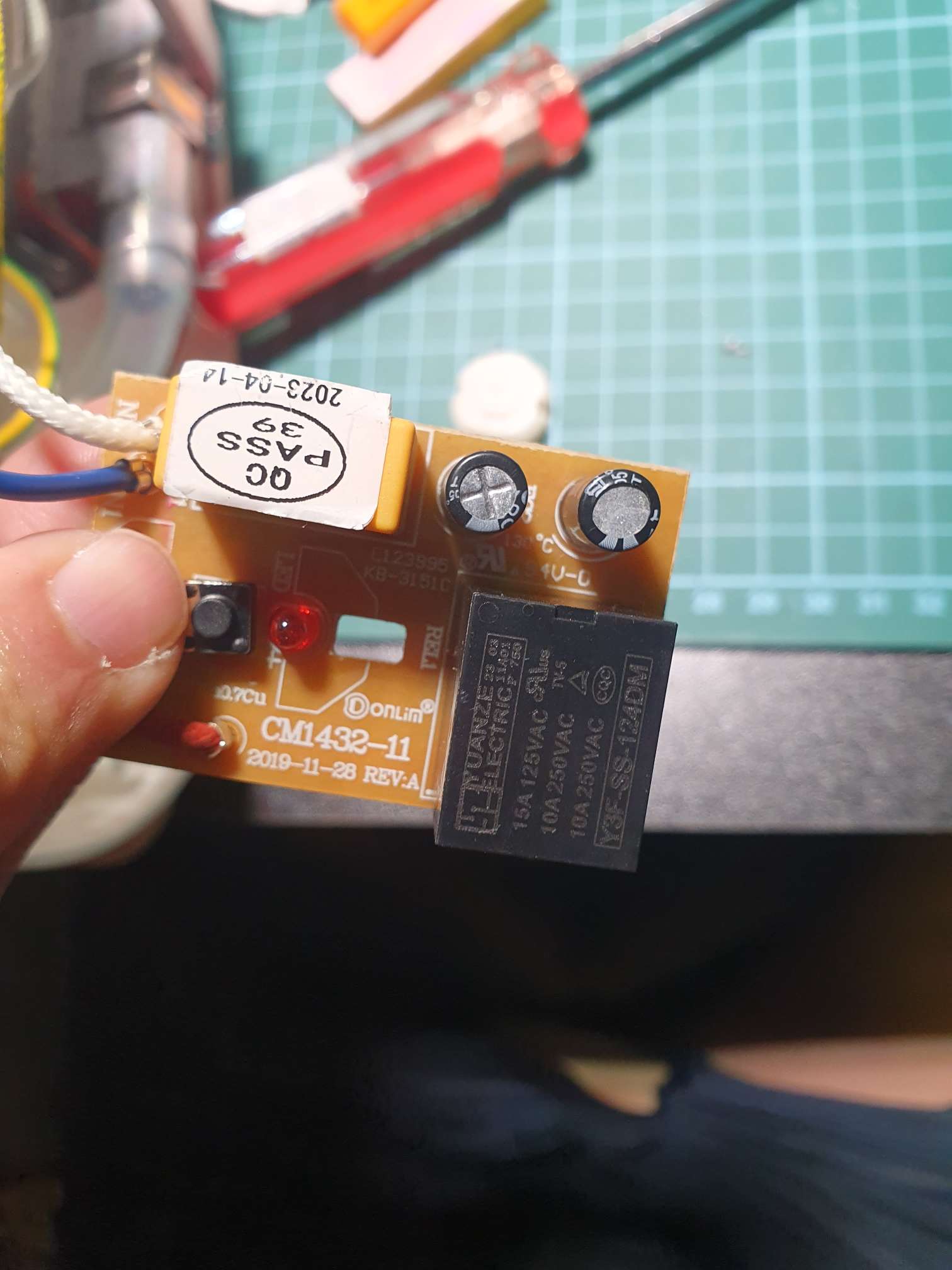

soldered in new y3f-ss-124dm, still not working. suspect either microcontroller is broken. considering bypass to 'manual' coffee machine
Seller mistakenly sent 112dm (compatible wth 12 volts) rather than 124dm (compatible with 24 volts).
Unable to proceed yet pending next parts delivery.

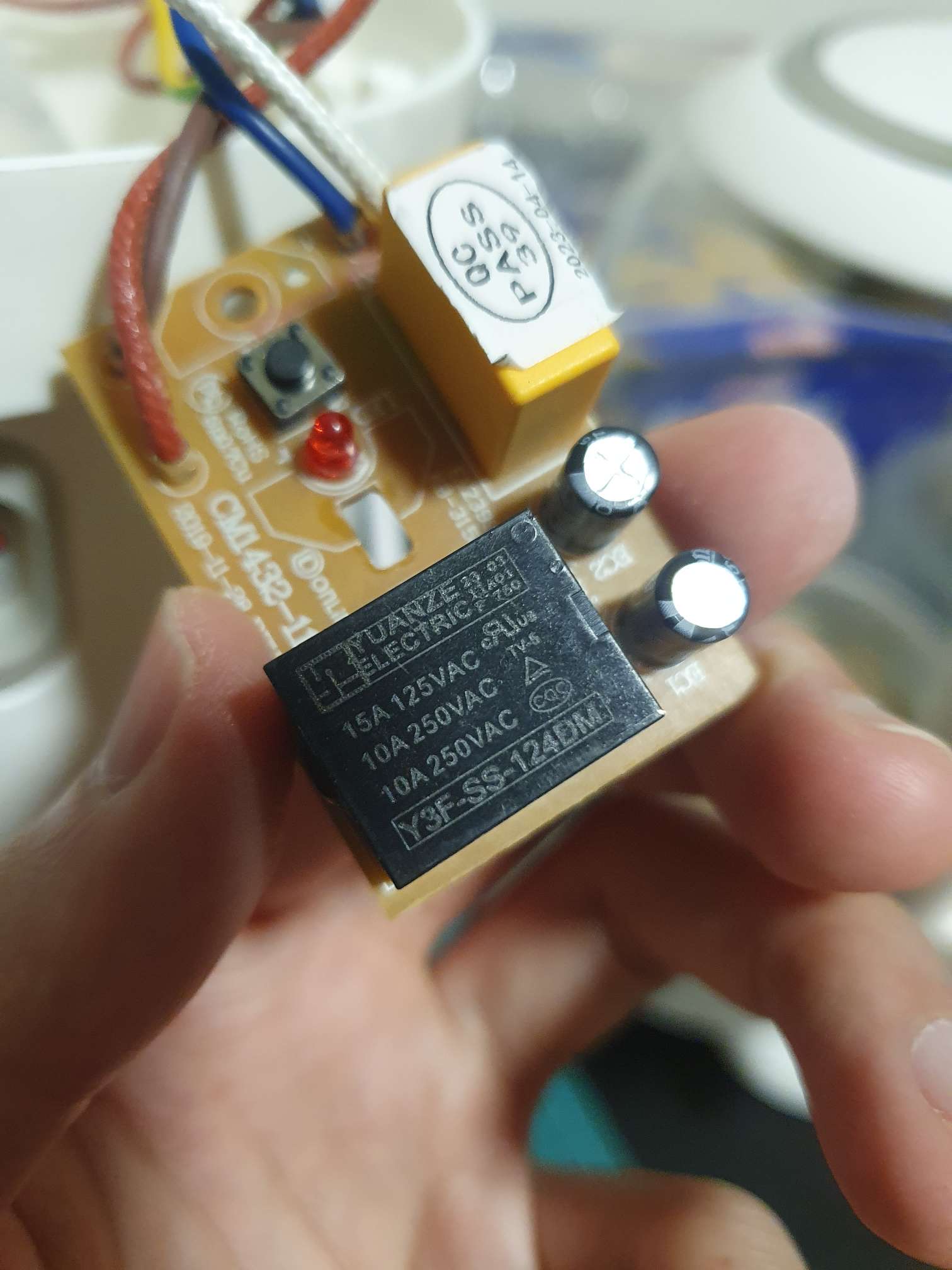

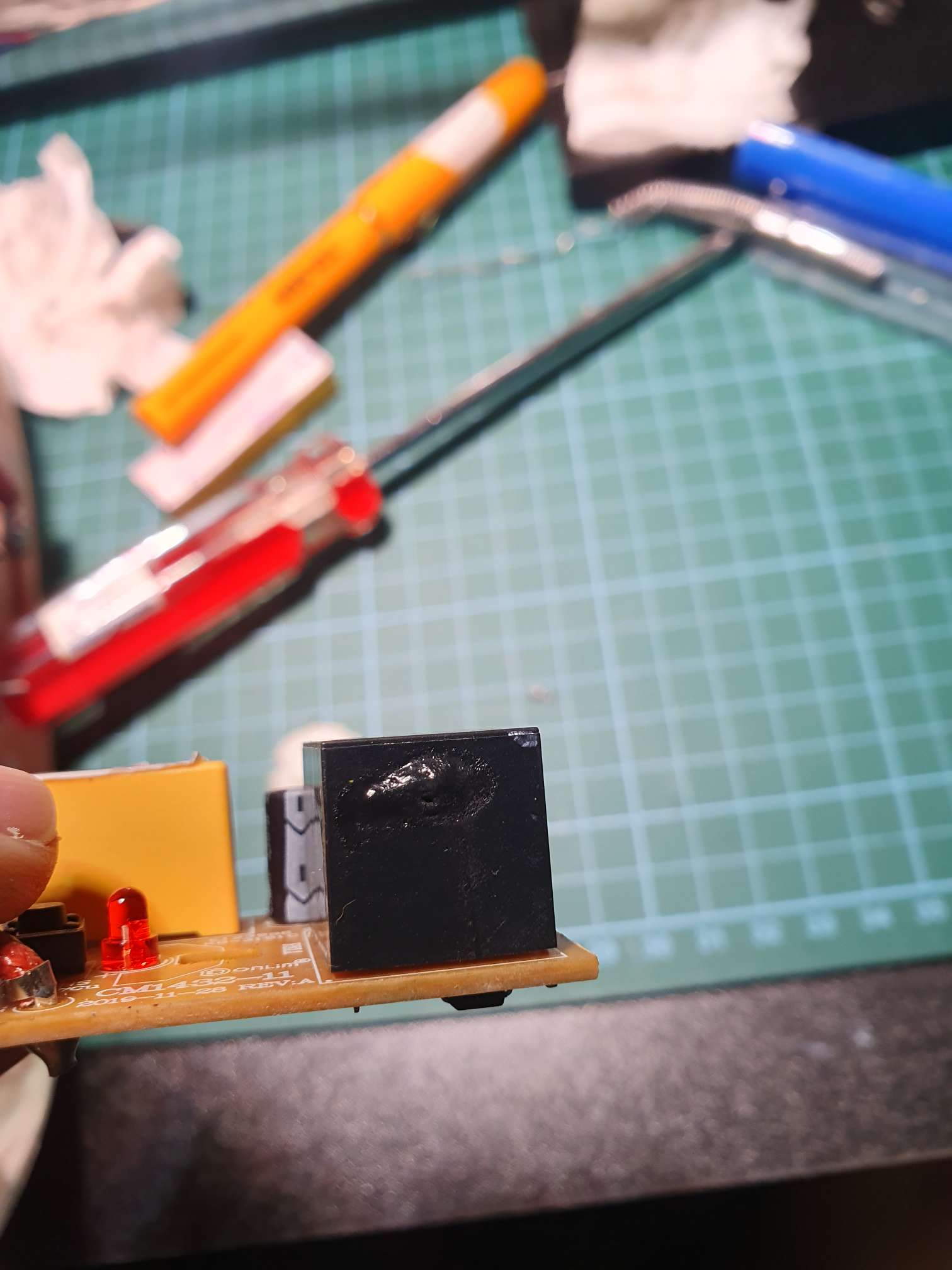

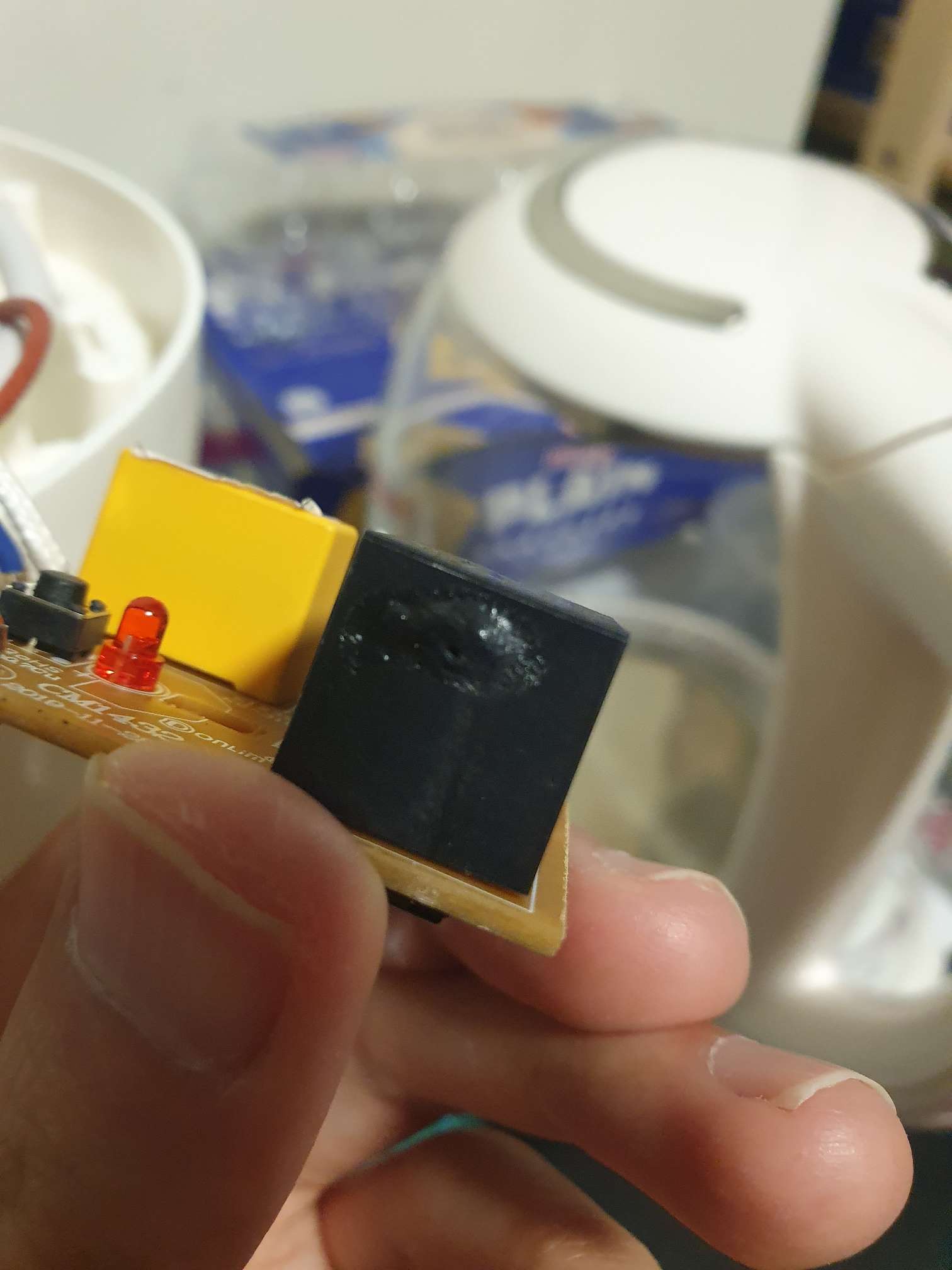

faulty relay y3f-ss-124dm, already ordered it and it arrived. plan to solder it on sunday at market demonstration booth.

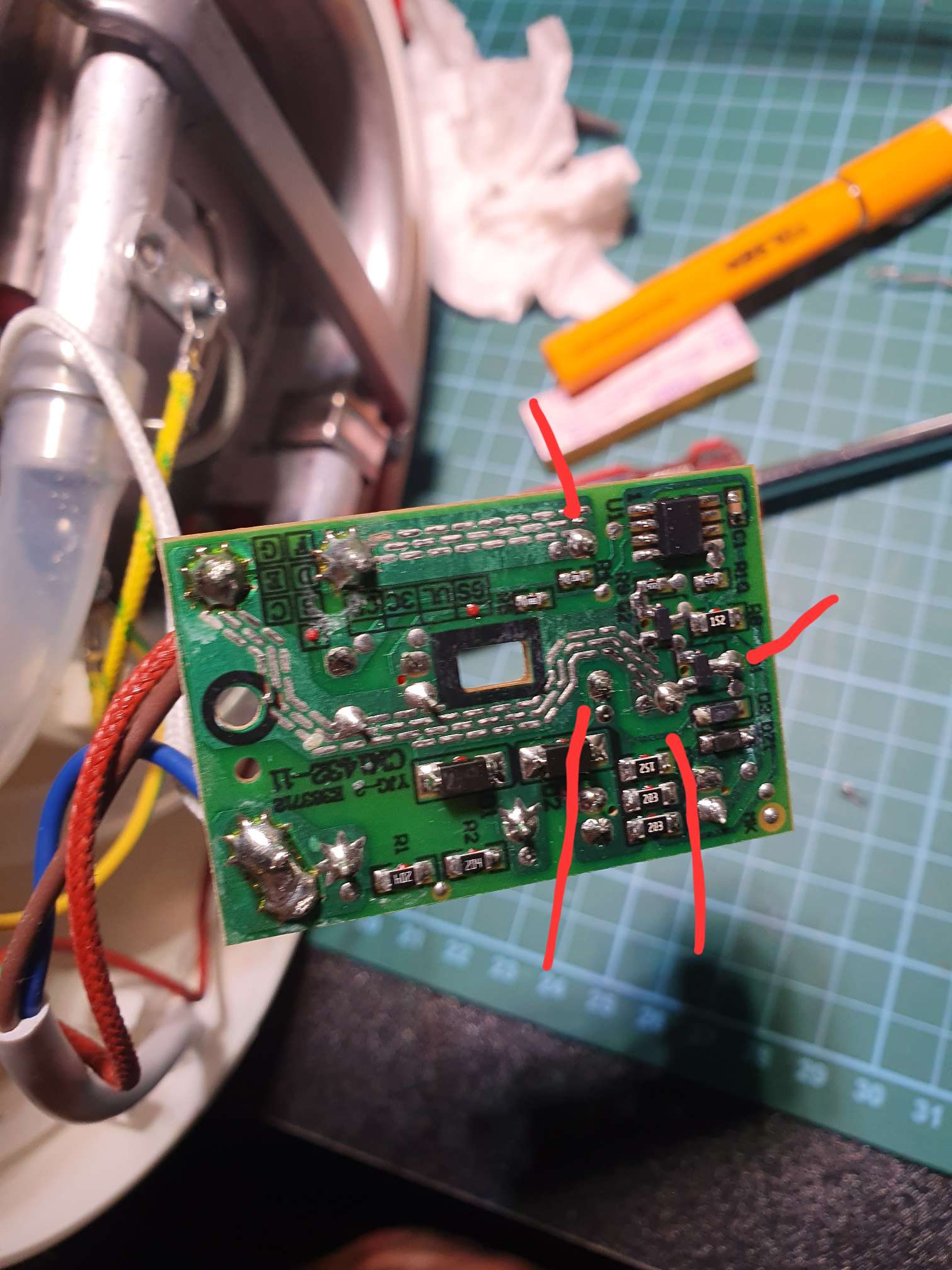

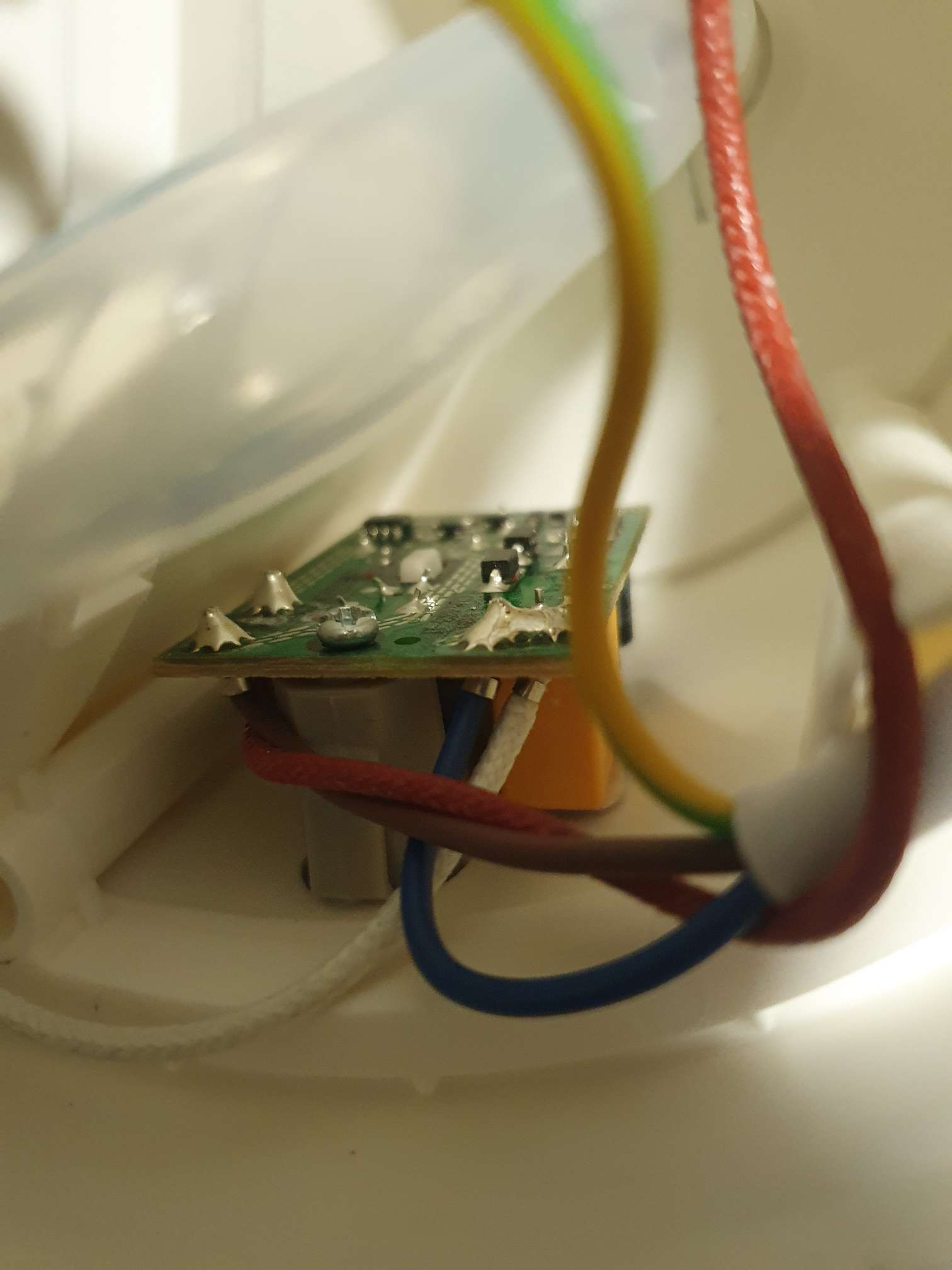

refer to photos with 4 red arrows for soldering points
