Item (#33)
| Type | |
|---|---|
| Brand | Philips |
| Model | HX6730 / Sonicare |
| Serial | 160624 |
| Colour | White |
| Description | rechargeable toothbrush. 3 speed. changeable brush head. charger is wireless type ipx7 about 1watt. |
Other repairs
Repair (#36)
| Status | Repair not possible |
|---|---|
| Location | Yuhua |
| Date | 9 May 2025 |
Faults
No common faults selected
Problem description
weird noise. vibration not strong
Photos
Repair Notes
despite introducing a gap it is still faulty. the noise is less but the vibration is less strong and intermittent.
the magnet and coil are too close, without a gap it's hard to vibrate.
followed guide https://www.youtube.com/watch?v=ESsRHo6PfOU

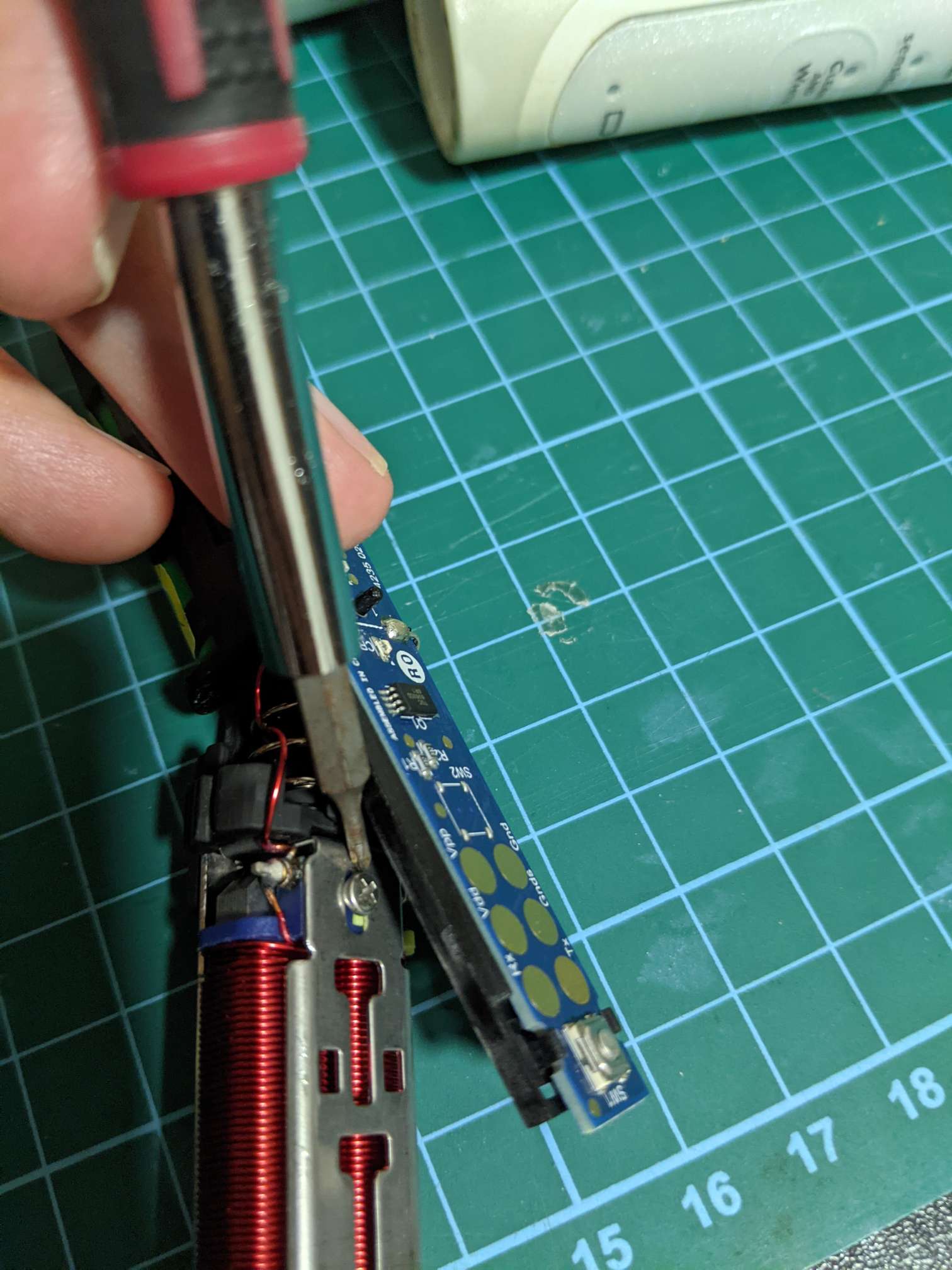

basically disassemble until you can loosen 2 screw (one of them is hidden under the circuit board assembly) holding the red coil. once loosened, insert a credit card to shim the gap between magnet and coil. then tighten the 2 screws and reassemble
the charger is narrower (12mm) than standard uk plug (14mm), have to use physical adapter before it'll fit into socket.
device does charge and power on but vibration is weak
