Item (#32)
| Type | |
|---|---|
| Brand | Ubiquiti |
| Model | ERLite-3 / Edgerouter Lite |
| Serial | 1619K802AA84F5E72 |
| Colour | Black |
| Description | Router with 3 ethernet, 1 console port |
Other repairs
No other repairs for this item
Repair (#35)
| Status | Repaired |
|---|---|
| Location | Yuhua |
| Date | 5 May 2025 |
Faults
No common faults selected
Problem description
it does power on but all ports are unresponsive.
cannot be reset.
Photos
Repair Notes

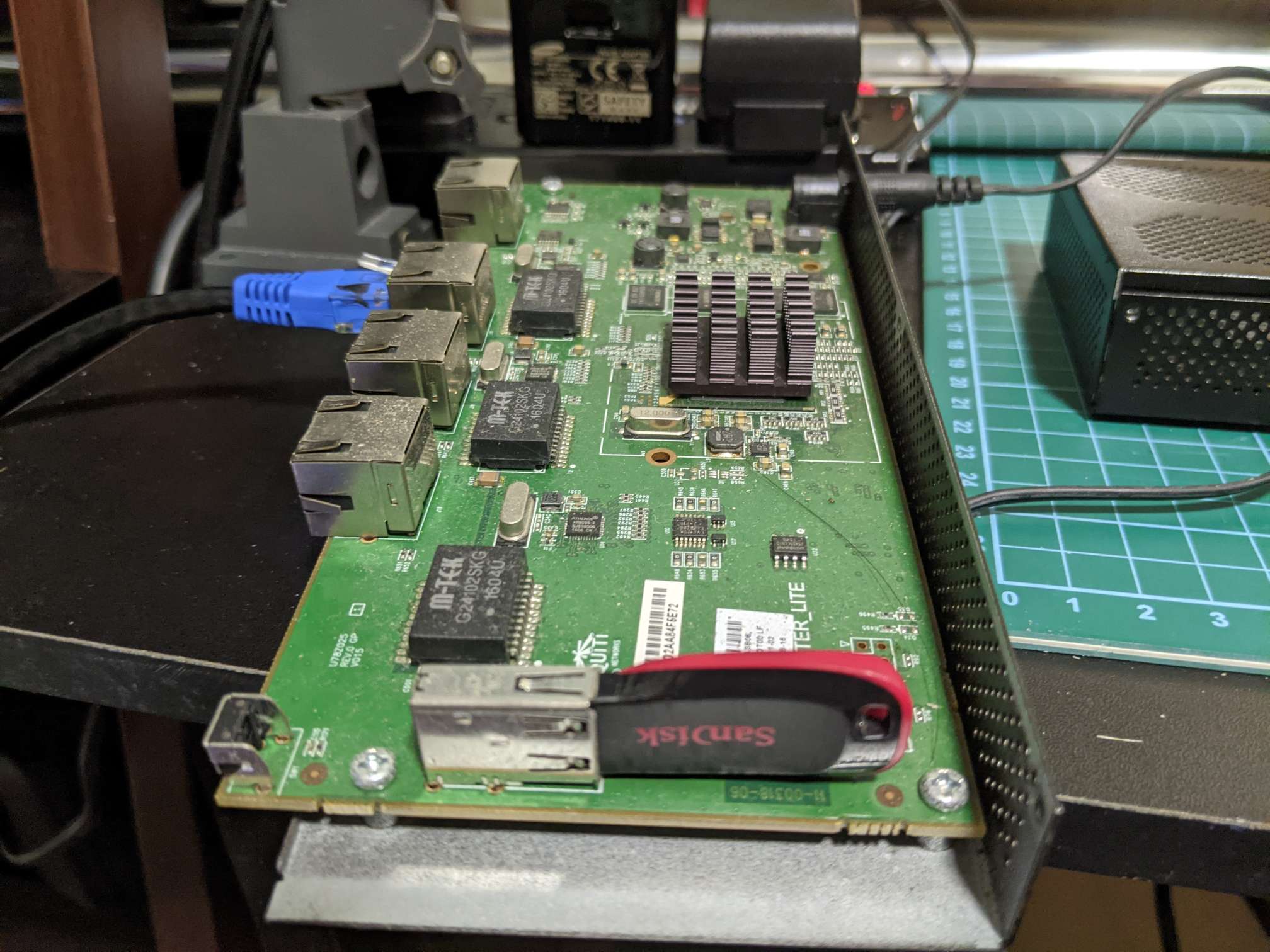

opened it up and discovered its flash drive was missing.

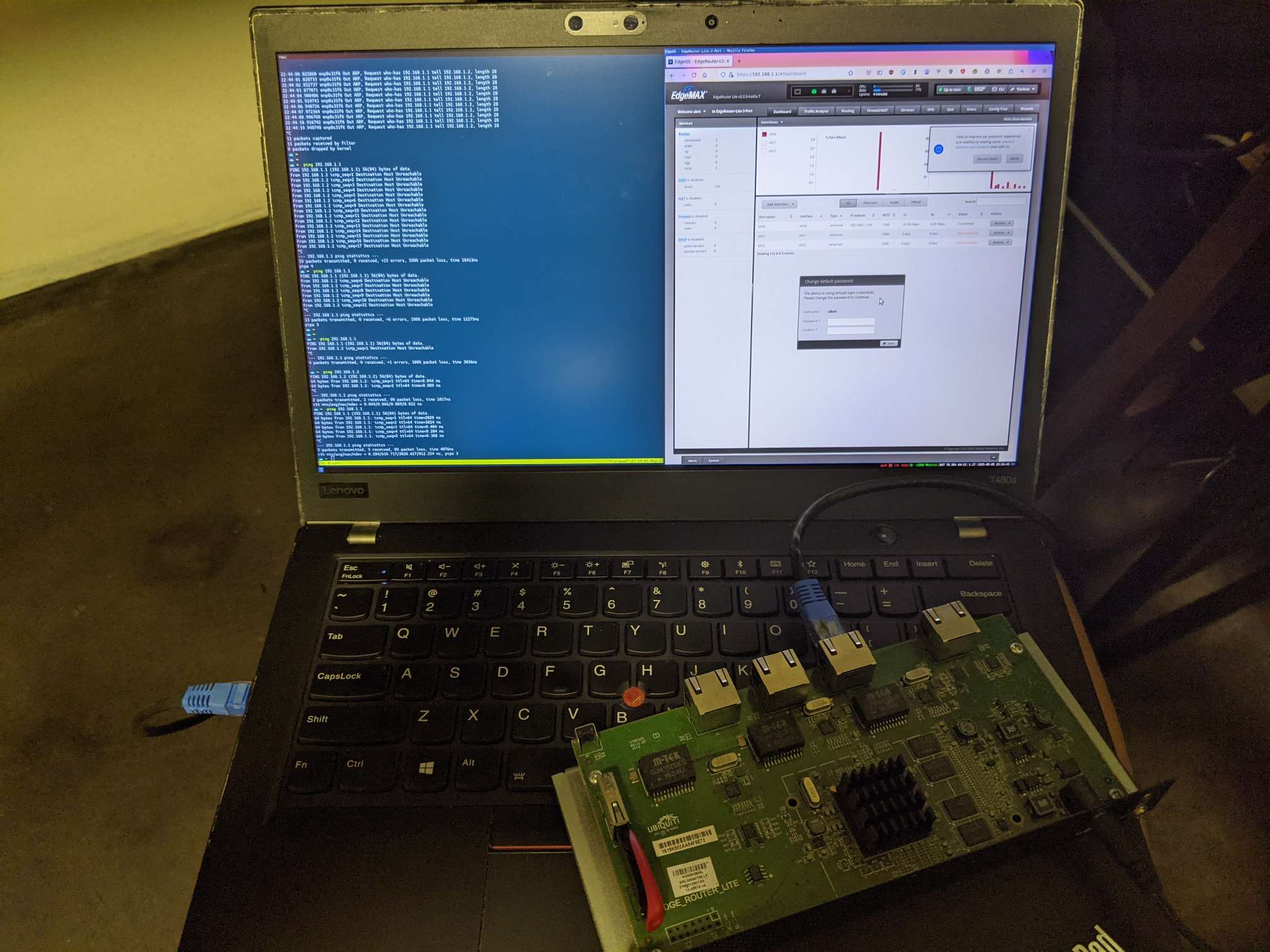

flashed a spare thumbdrive with compatible edgeos (ER-e100.v2.0.9-hotfix7) and plugged it in and boot the router, port 1 responds again to static ip 192.168.1.1 and default credentials.
followed this guide:
https://www.stackallocated.com/blog/2021/edge-router-os-restore/
specifically this flashing utility
https://github.com/sowbug/mkeosimgto flash the firmware tarball ER-e100.v2.0.9-hotfix7
downloaded from ui.com
