Item (#14)

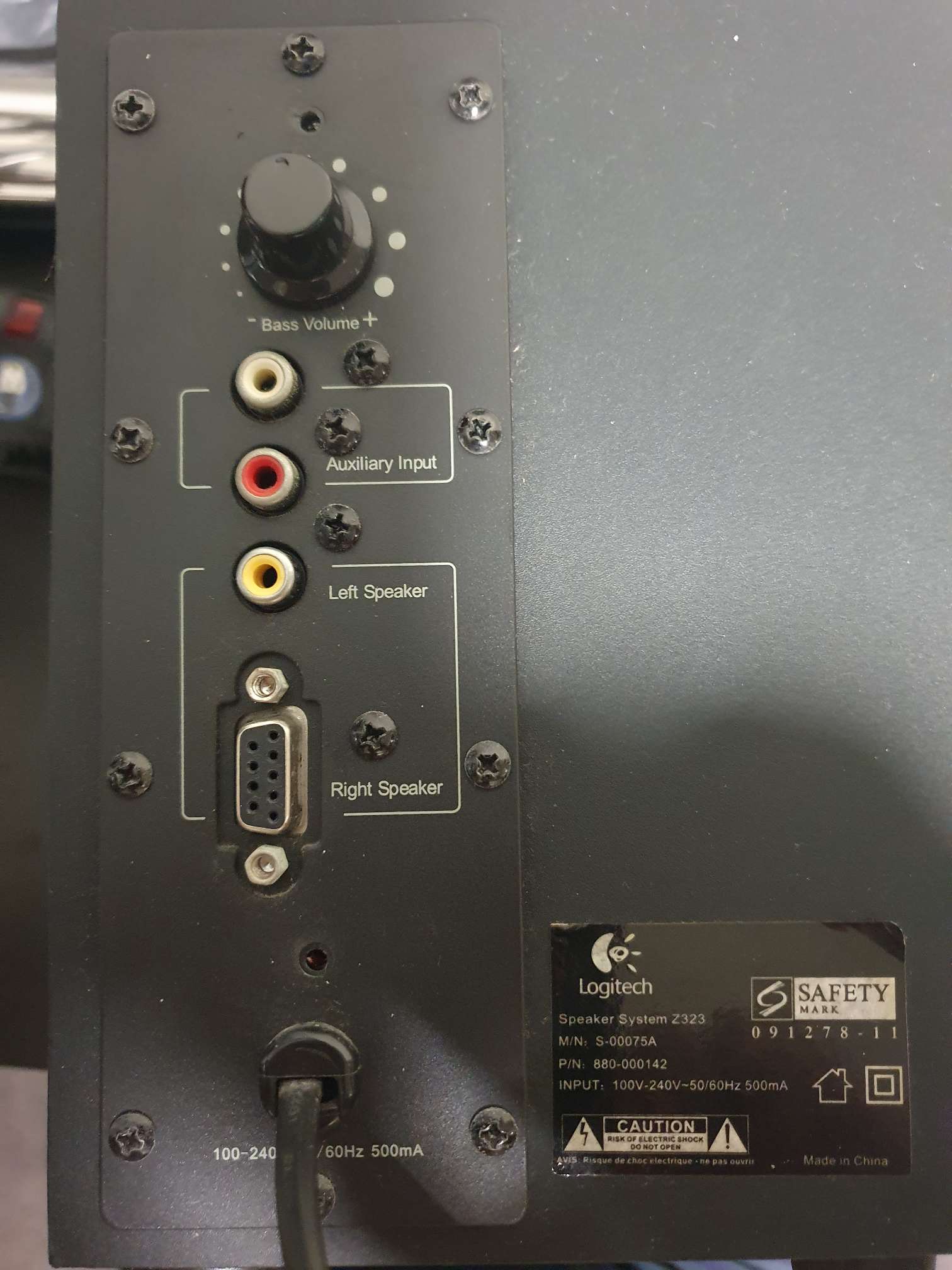

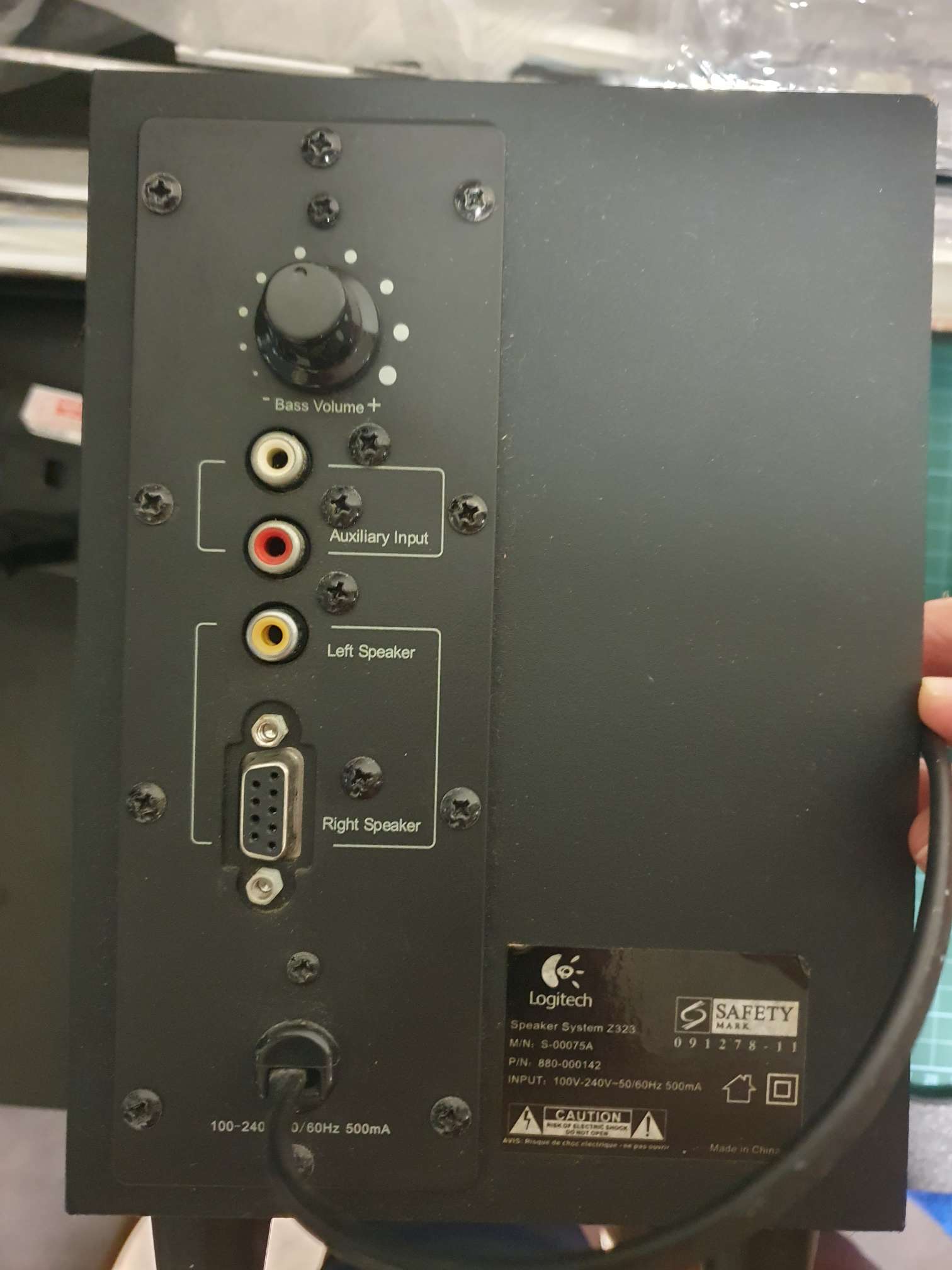

| Type | |
|---|---|
| Brand | Logitech |
| Model | S-00075A / Speaker System Z323 |
| Serial | 880-000142 |
| Colour | Black |
| Description | 2.1 speaker system |
Other repairs
Repair (#15)
| Status | Repair not possible |
|---|---|
| Location | Yuhua |
| Date | 3 Feb. 2025 |
Faults
No power (battery)
The device does not show any signs of life when batteries are inserted and turned on.
Problem description
turn the knob on right speaker to on but cannot

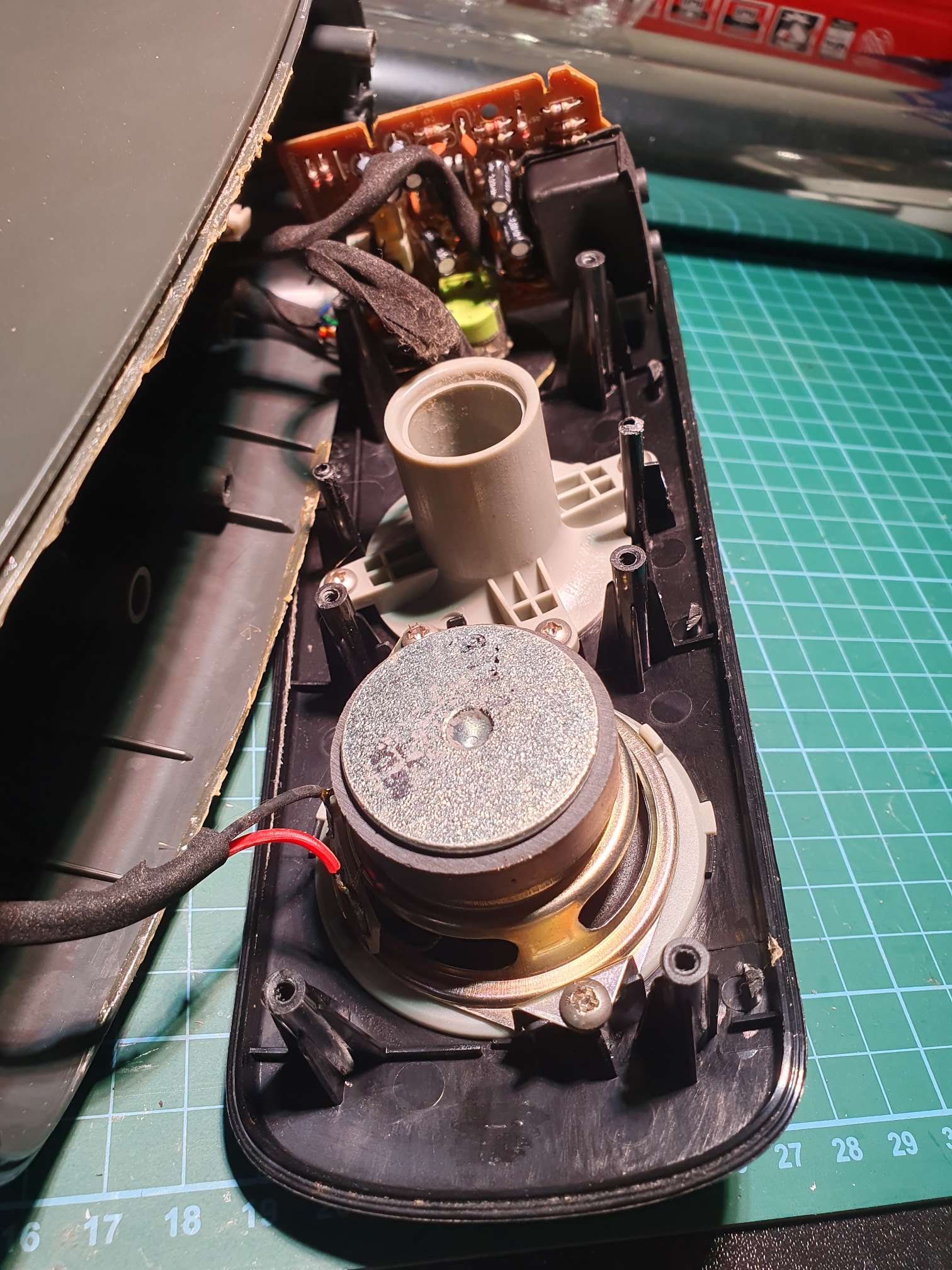

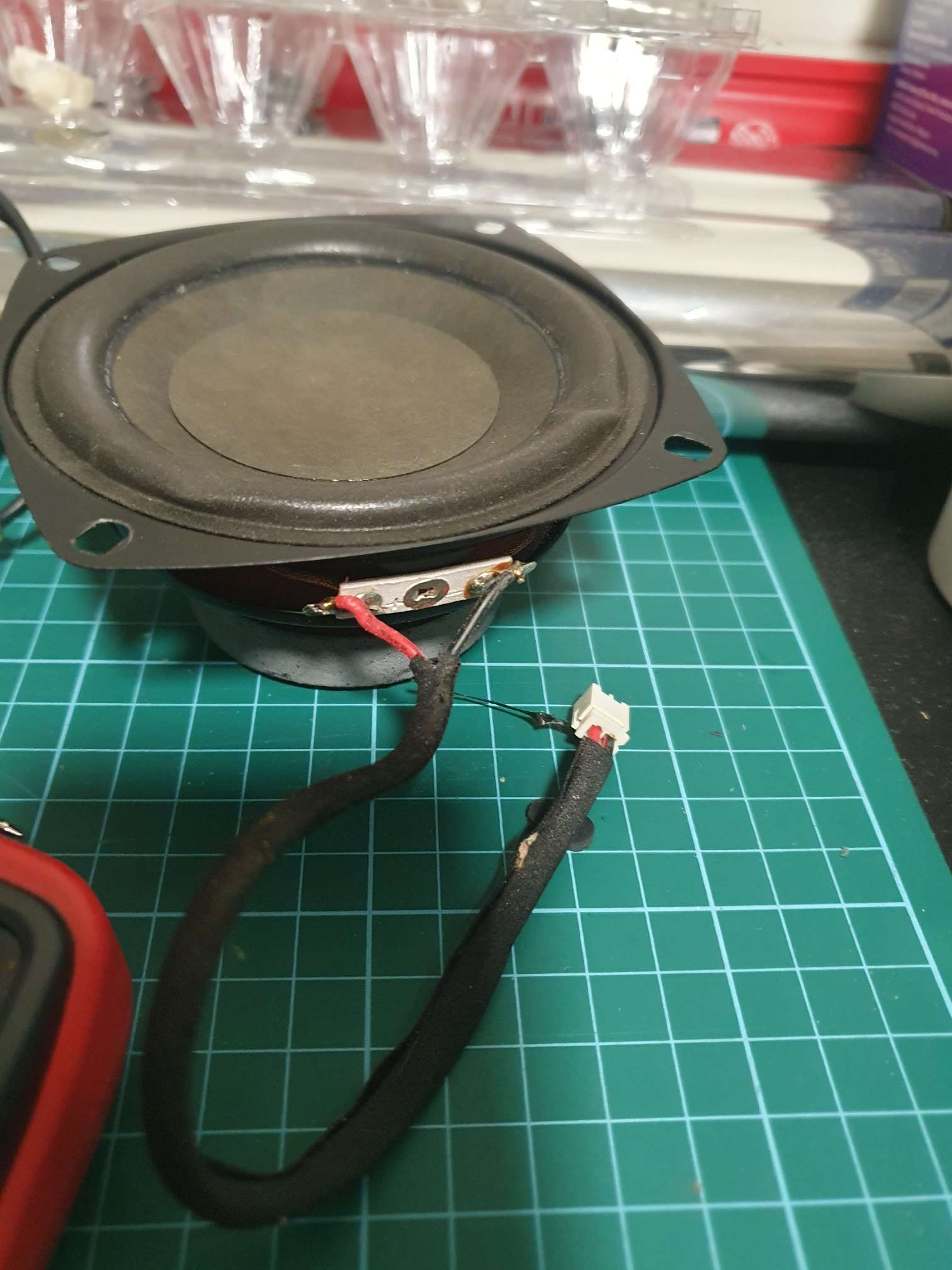

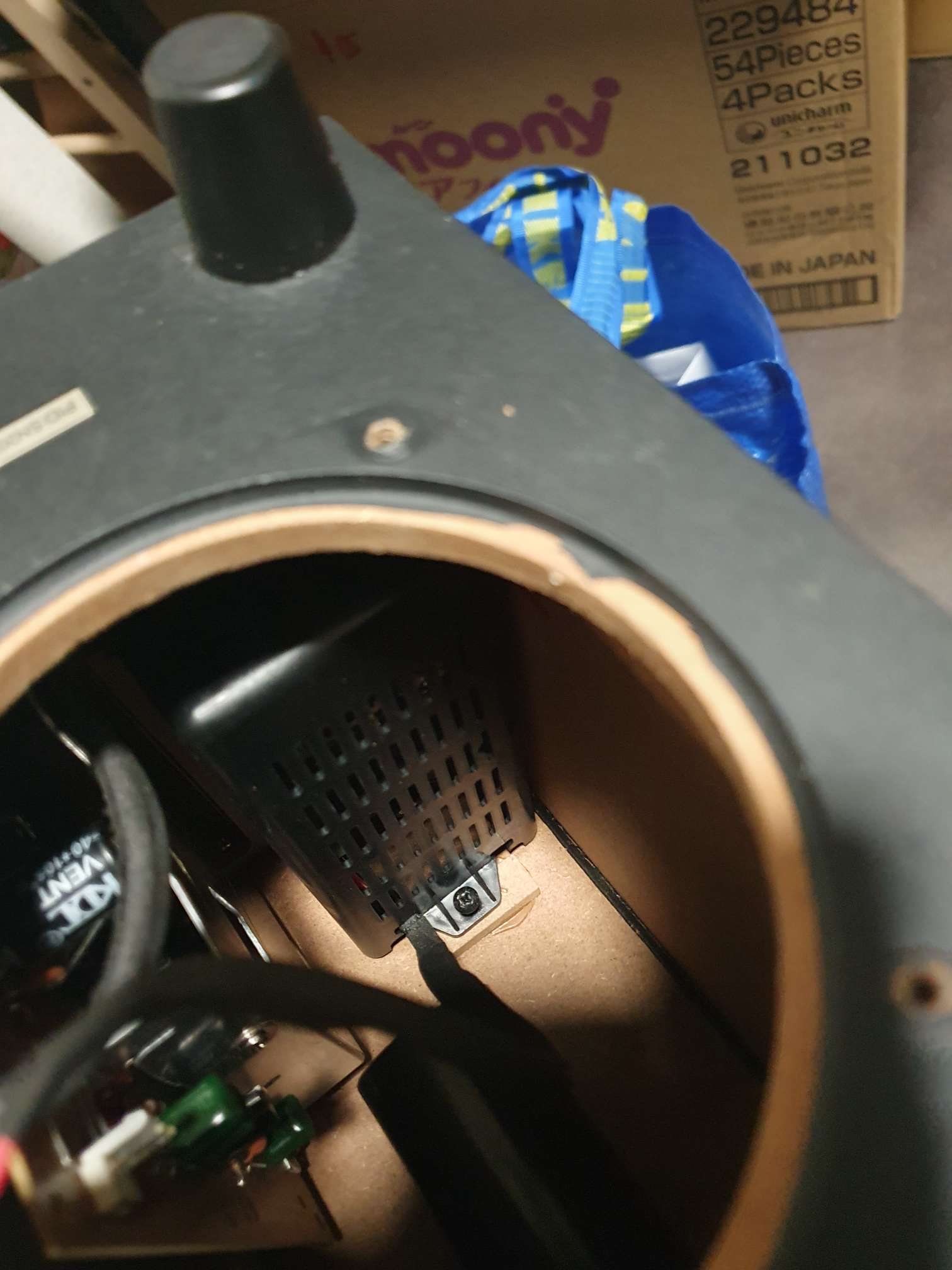

Photos
Repair Notes

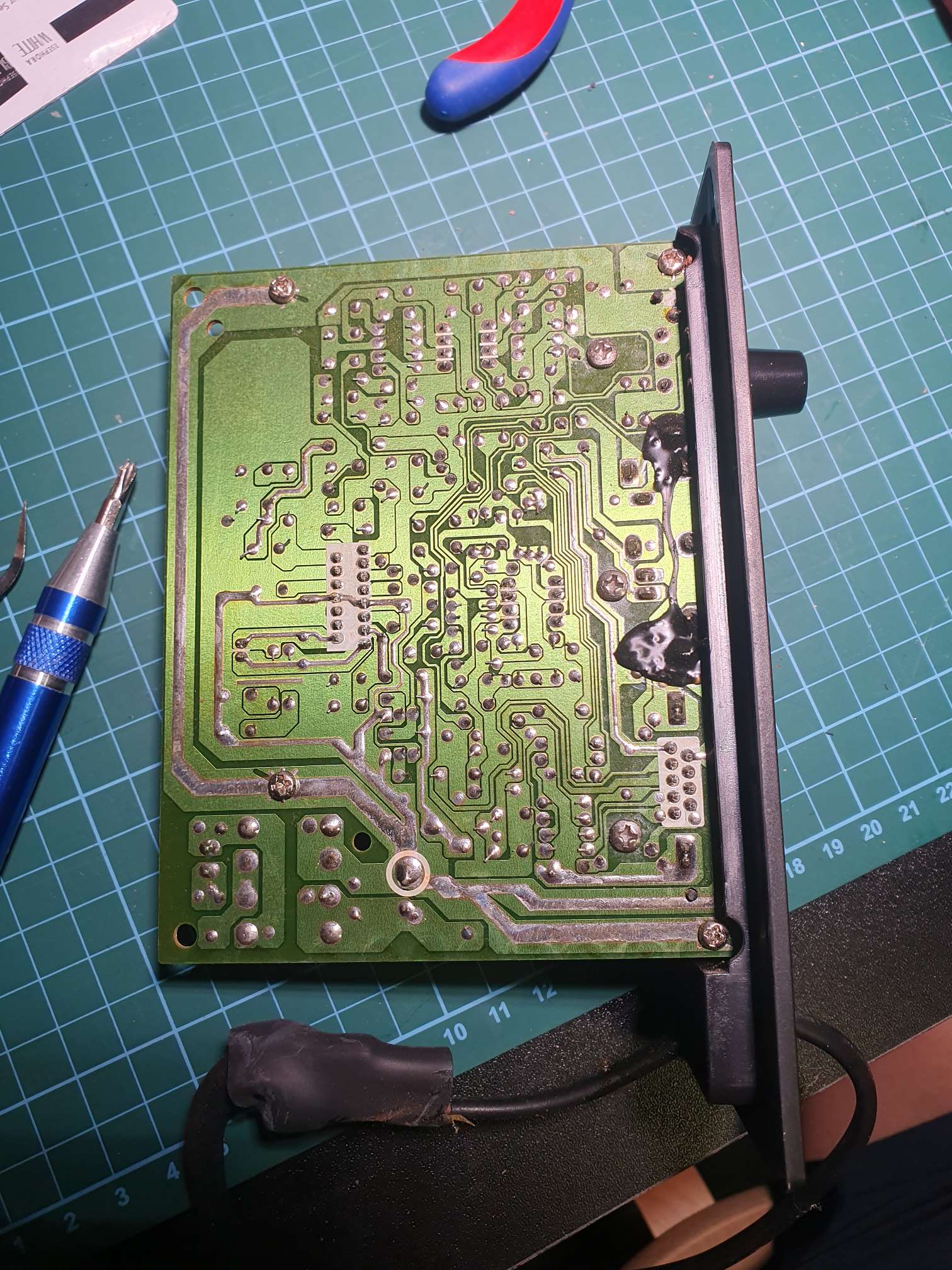

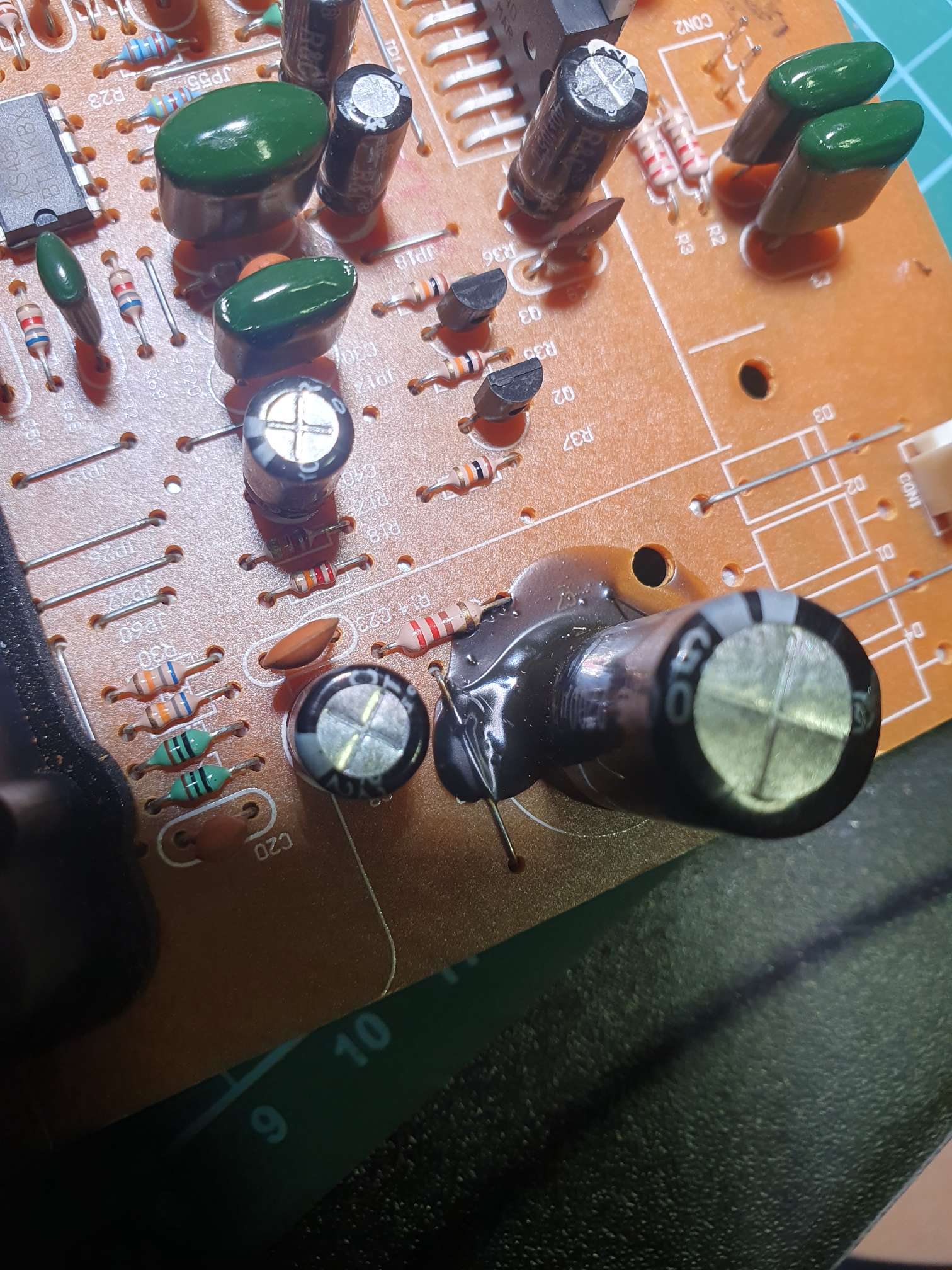

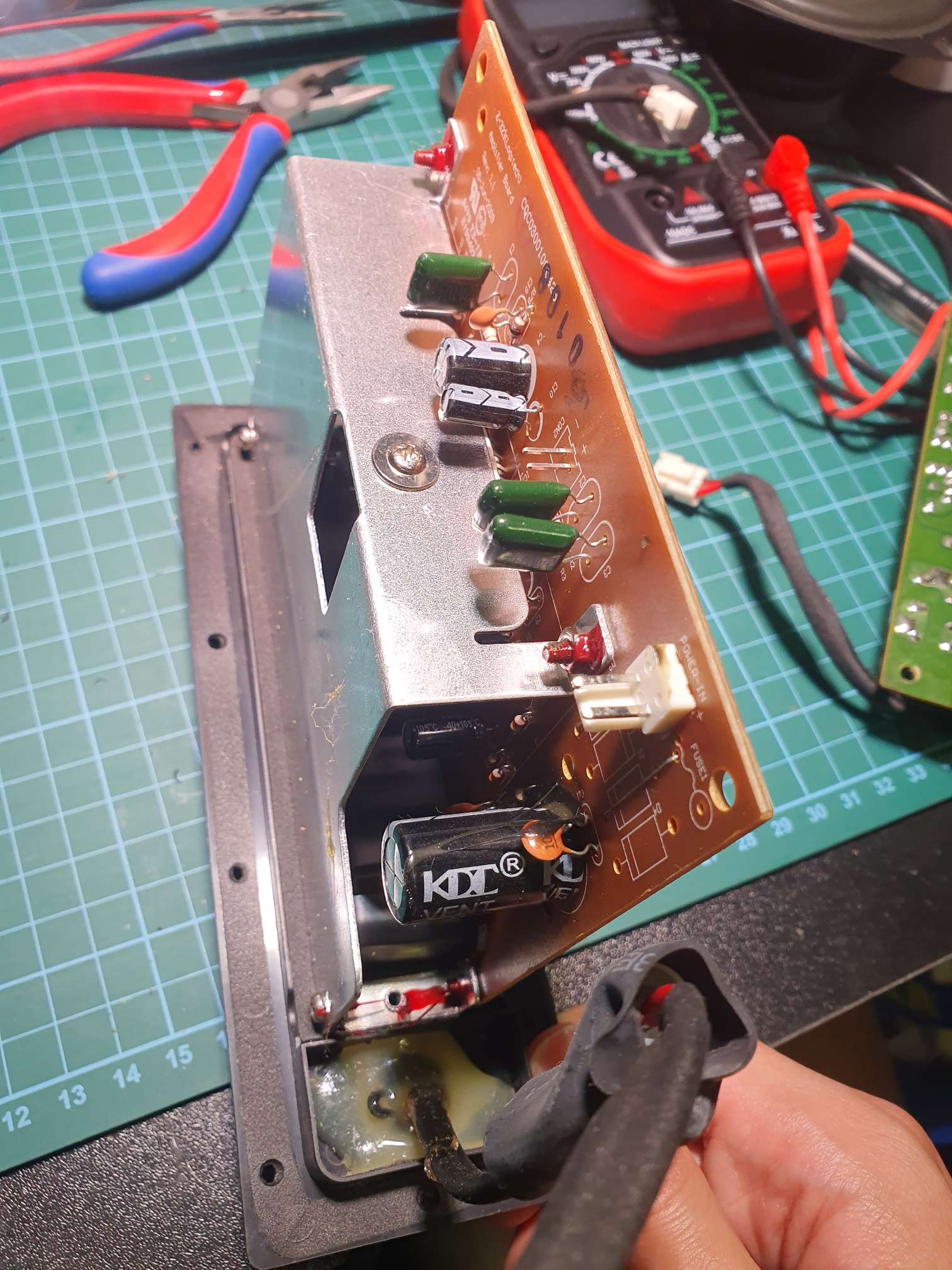

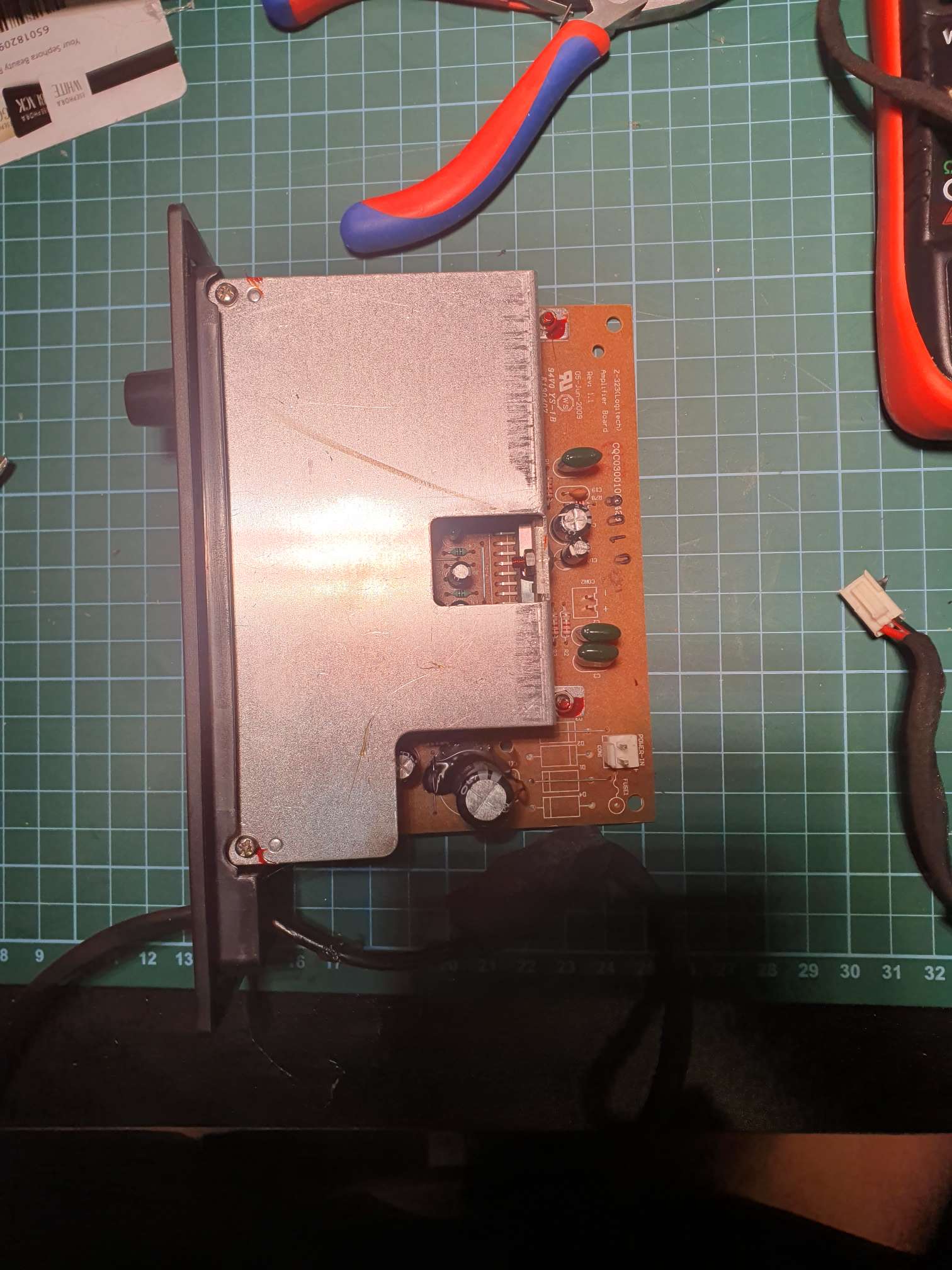

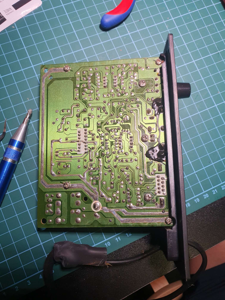

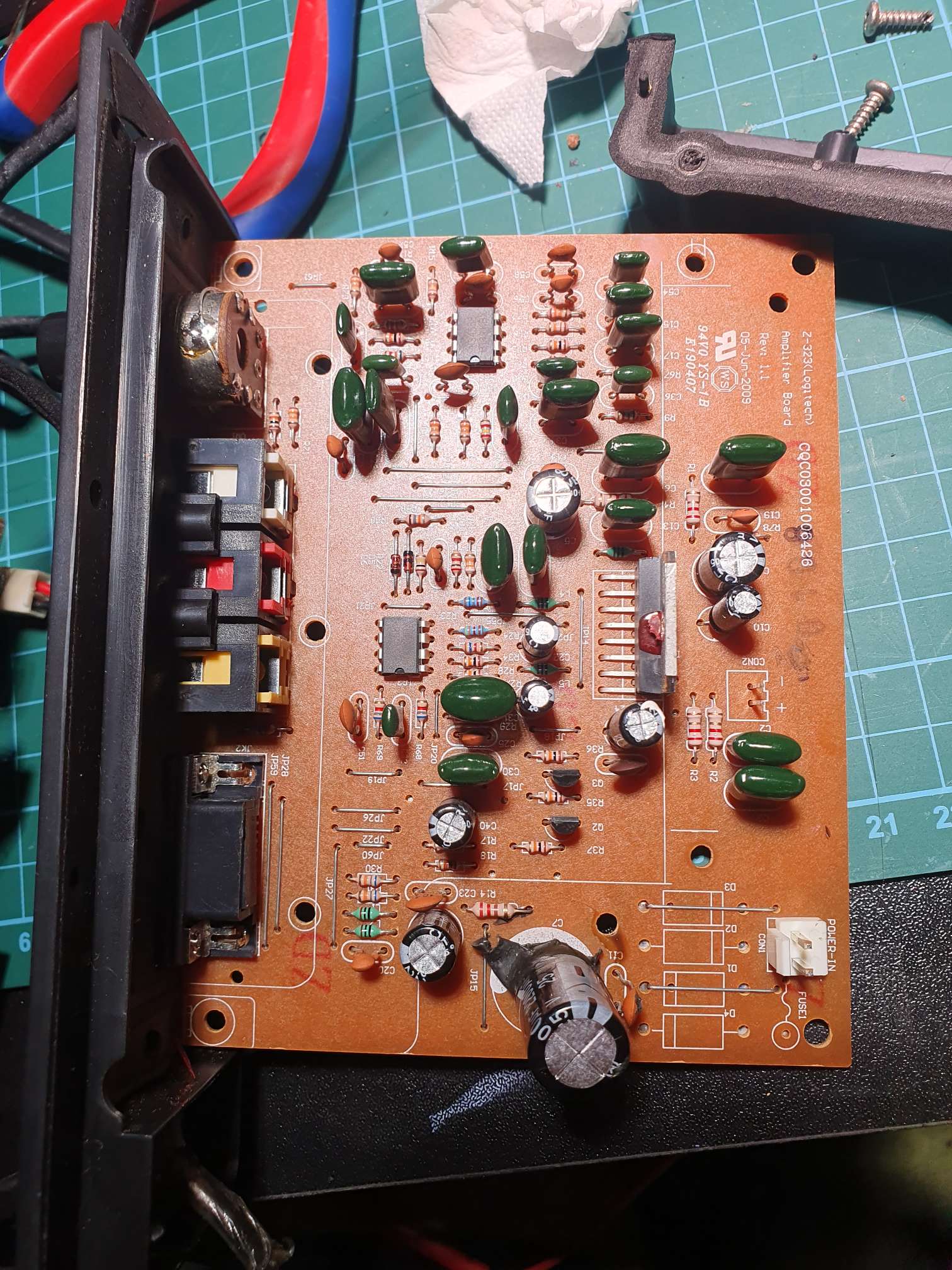

too difficult to identify short in amp board. model is too old to find direct replacement. it's possible to use a 3rd party amp but need to find/guesstimate the specs of the sound drivers.
changed another known-good 12v power supply, confirm amp board is shorted (voltage drops to zero).
giving up on repair

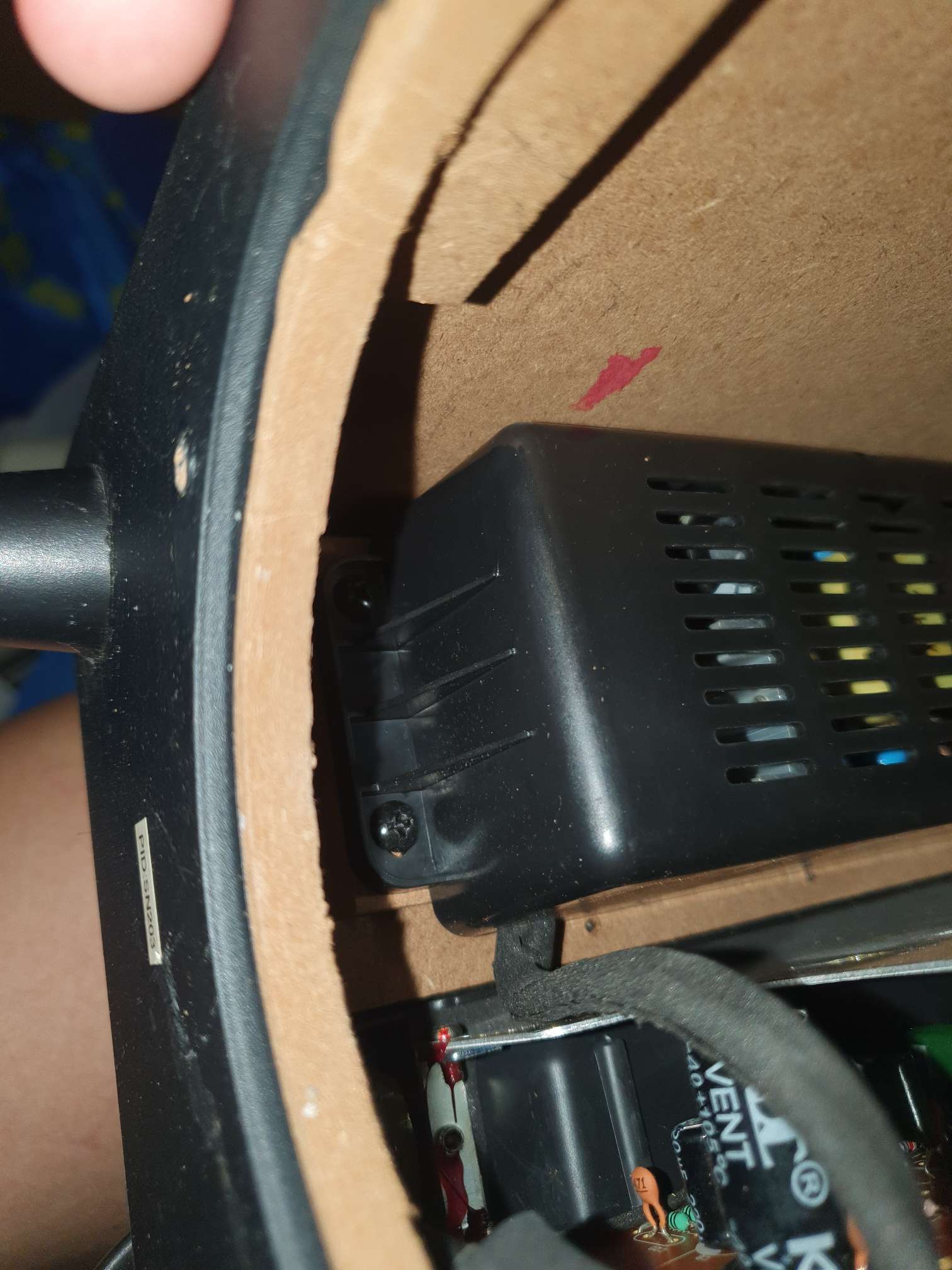

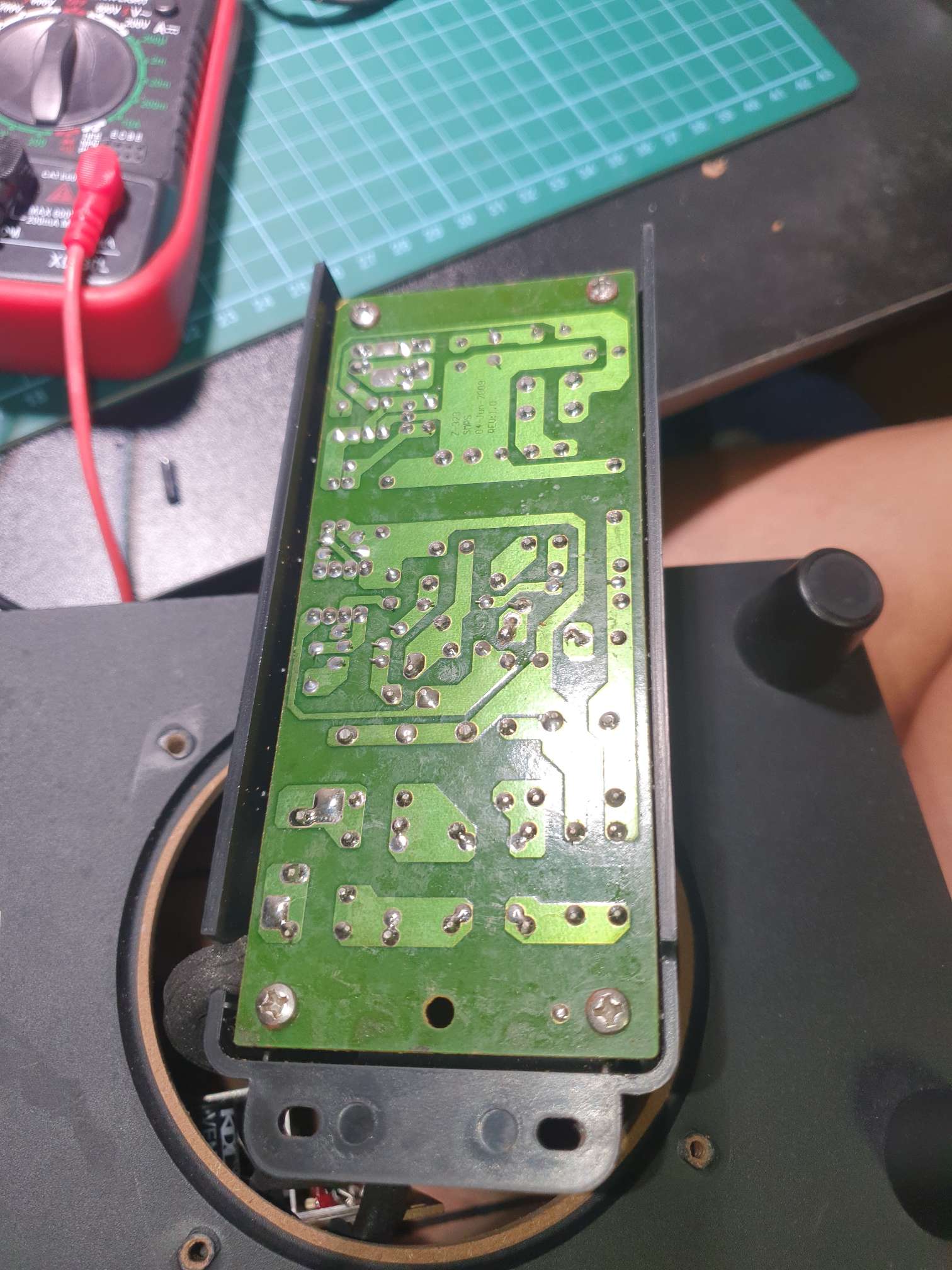

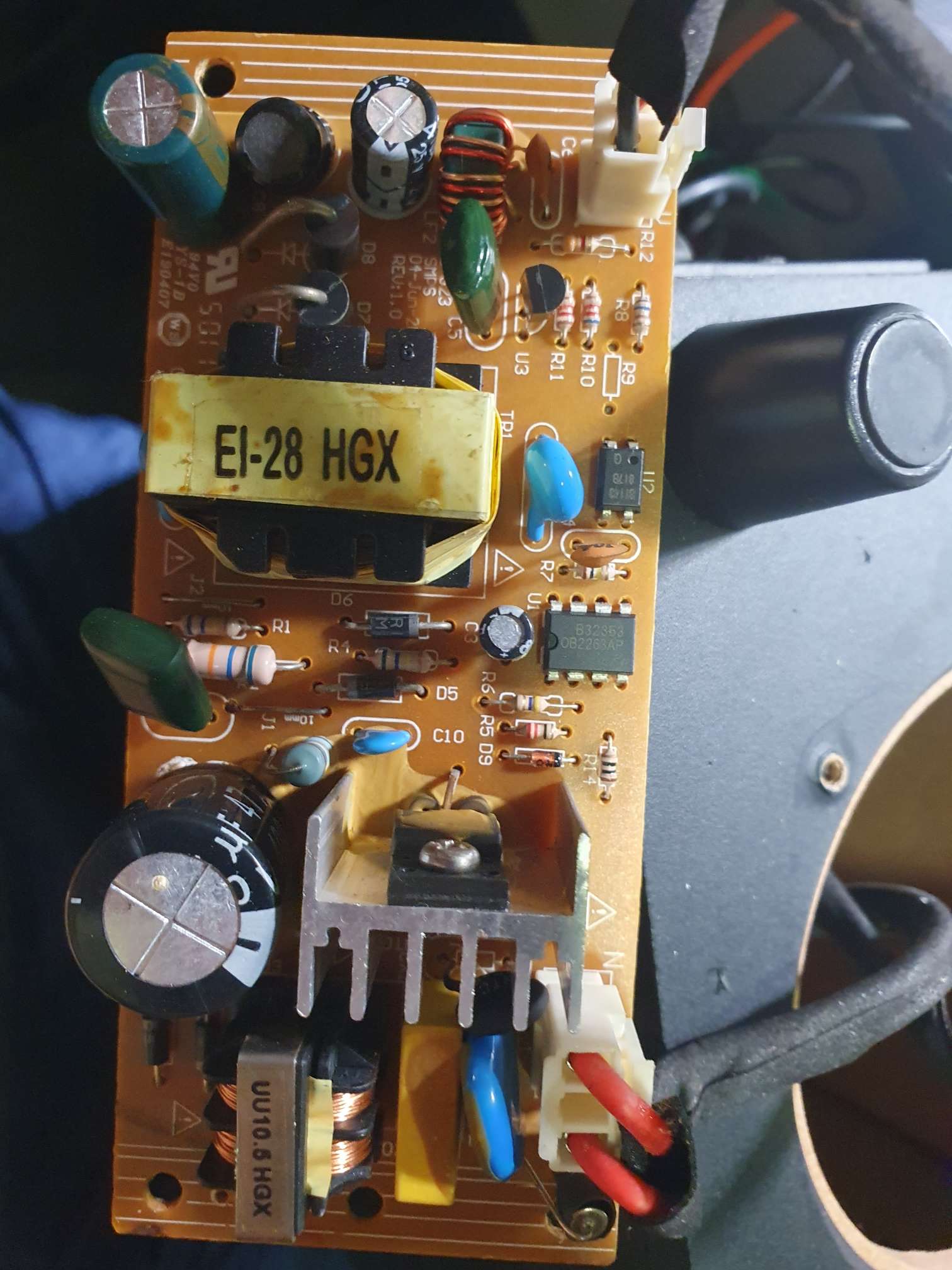

power supply makes a periodic clicking noise, suspect main board has shorted.
turning power knob on (on the right speaker) does nothing
