Item (#112)
| Type | |
|---|---|
| Brand | aerogaz |
| Model | AZ-809PF / 9" air circulator |
| Serial | 201080900848 |
| Colour | metal |
| Description | single speed metal fan |
Other repairs
Repair (#117)
| Status | Repaired |
|---|---|
| Location | Yuhua |
| Date | 25 Aug. 2026 |
Faults
Physically damaged
Physical damage prevents the device from functioning properly.
Problem description

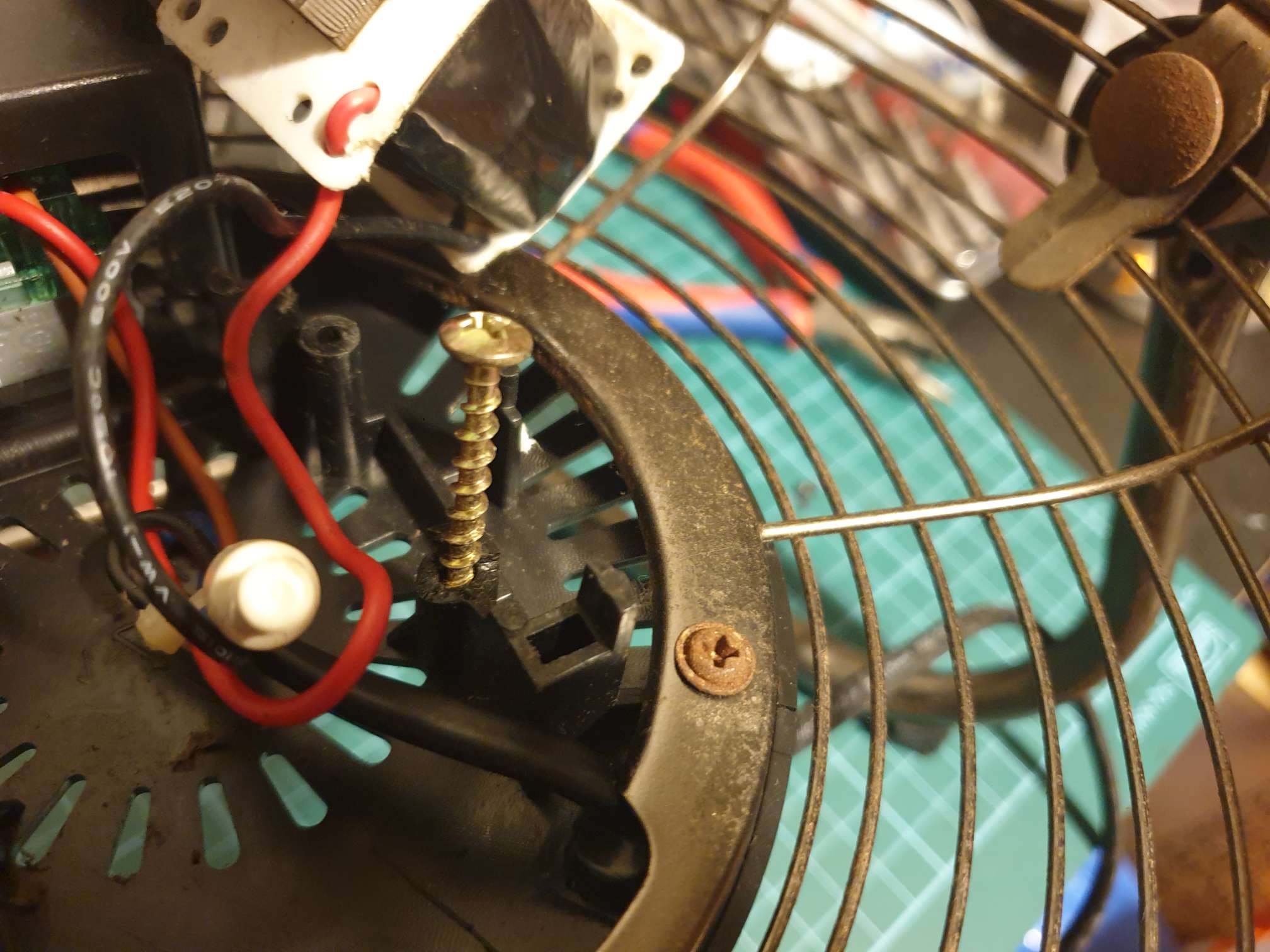

the screws securing motor to housing have sheared off
Photos
Repair Notes
applied super glue to screw tips but they're still loose.

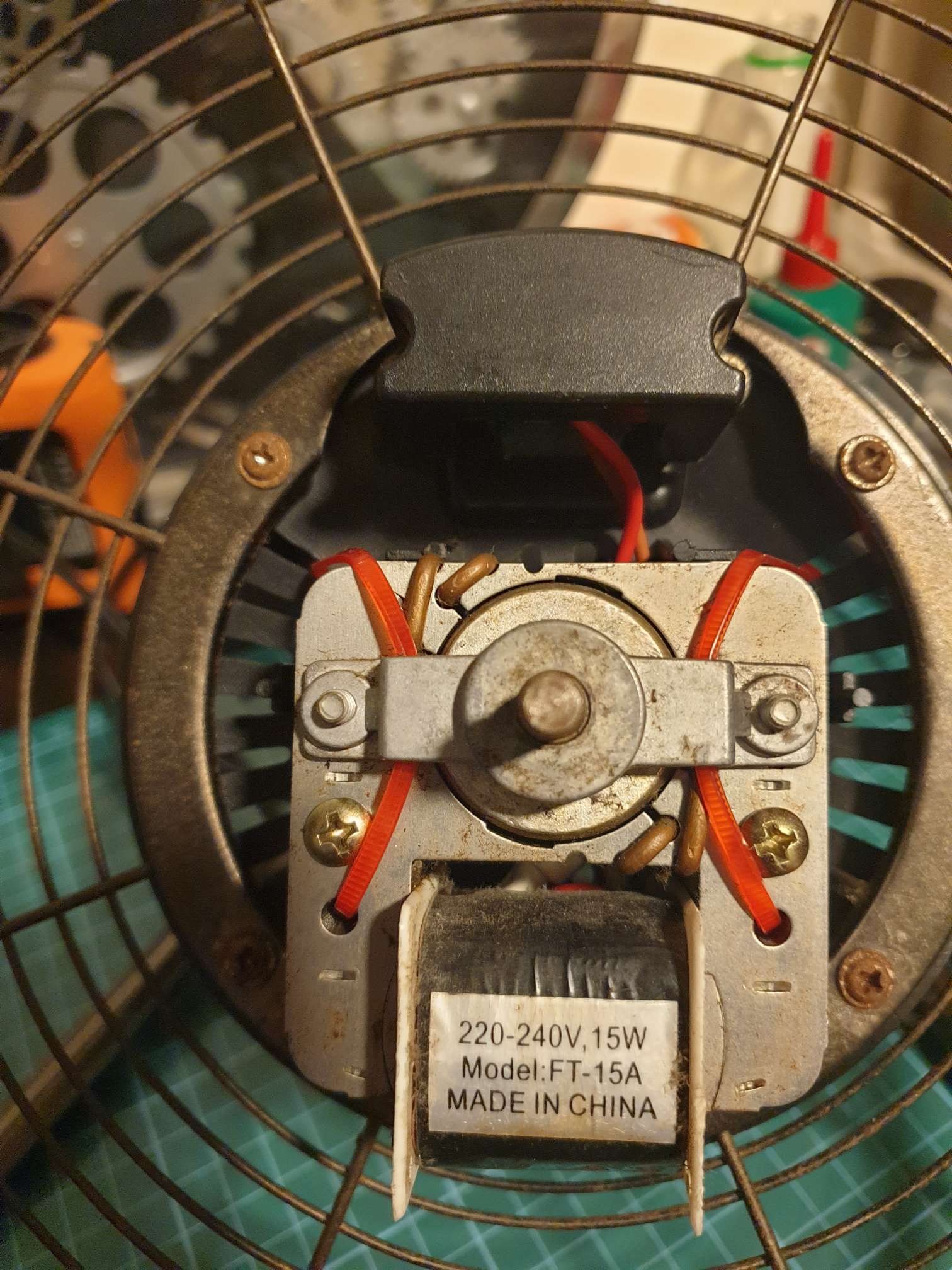

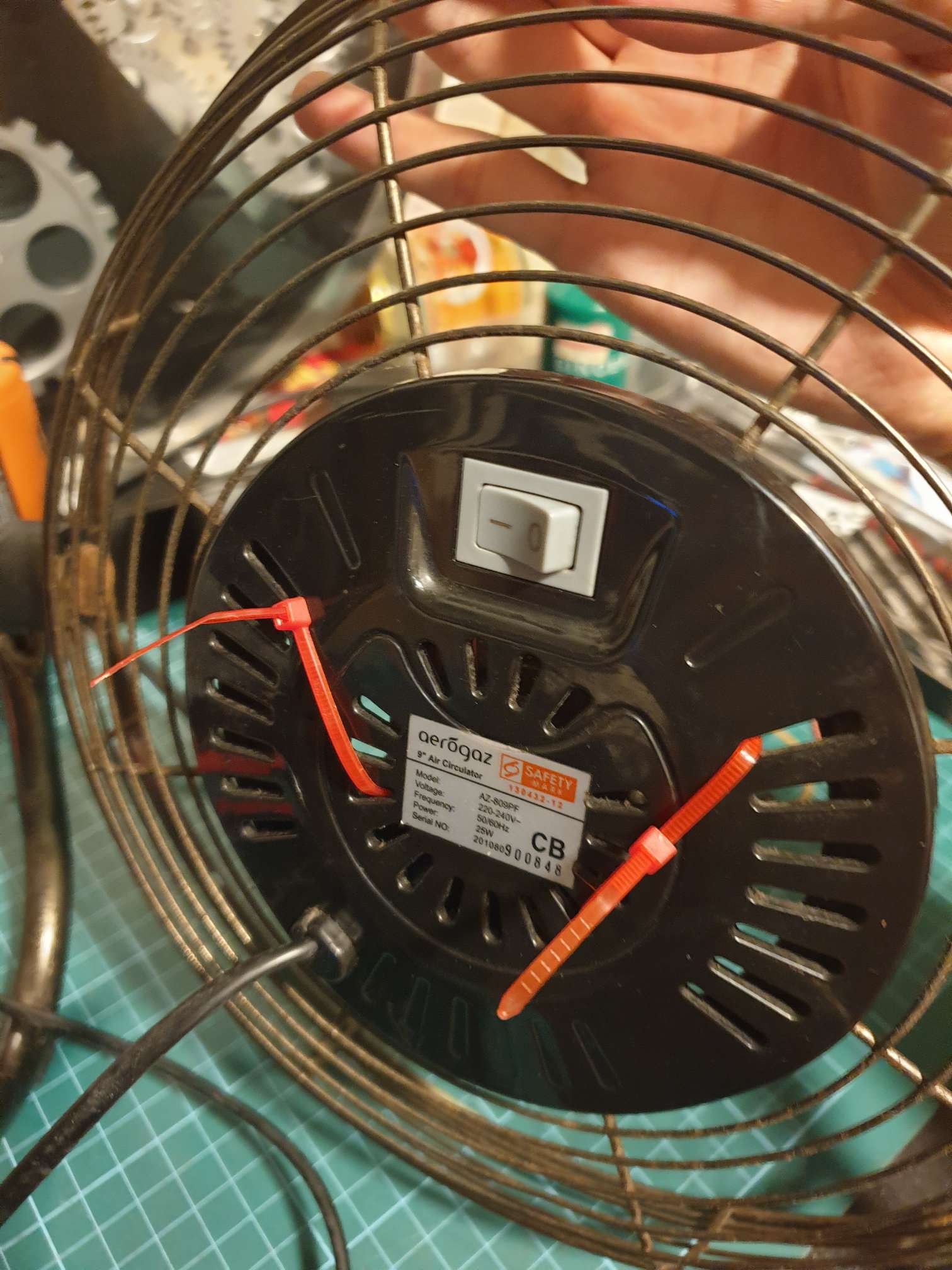

ended up using 4 cable ties to secure the motor.

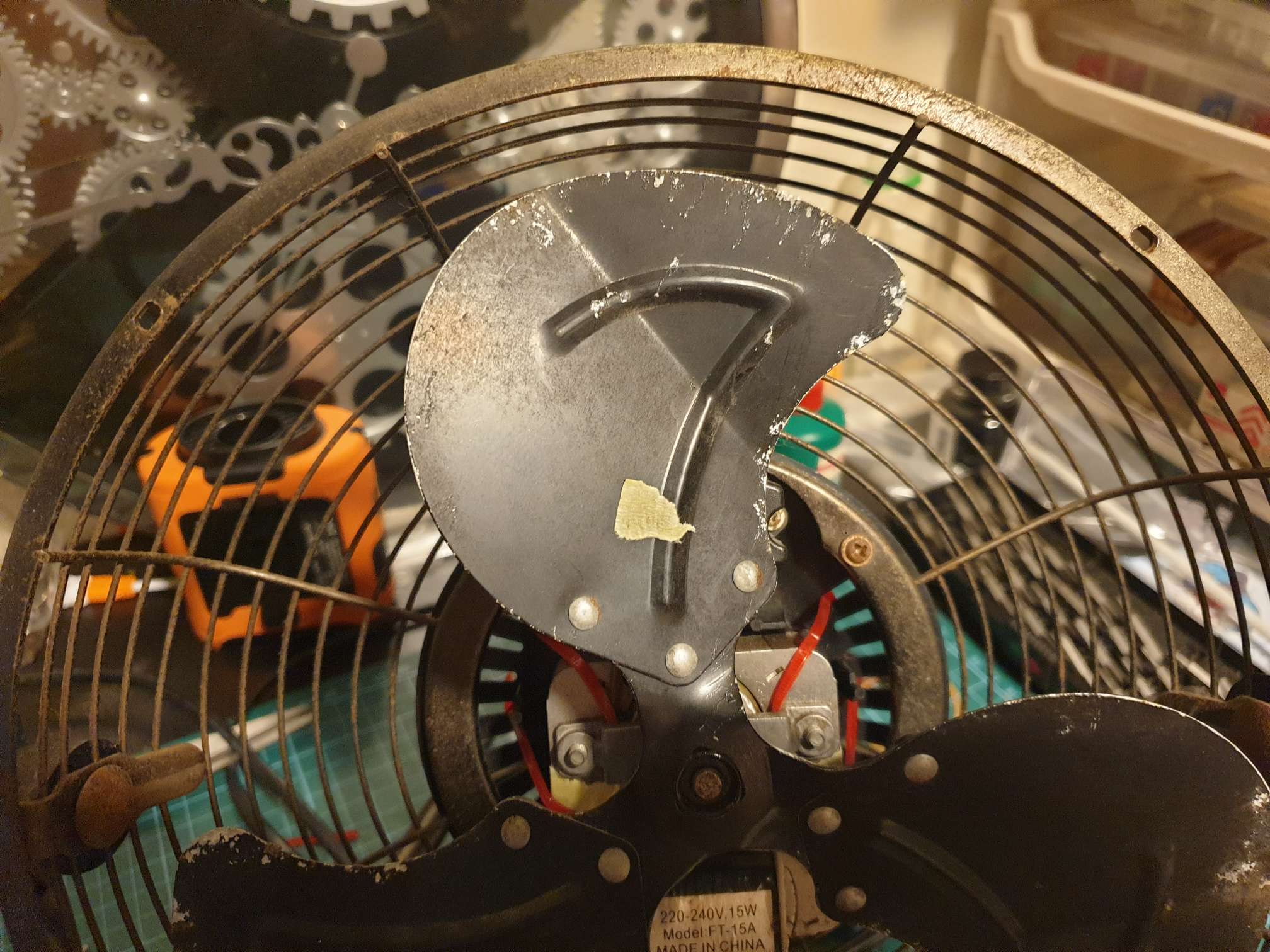

one of the fan blades (marked with masking tape) had deformed when the motor fell after the screws had broke. bent the blade back by eyeballing it with respect to the other 2 blades.
fan now works sort of decently.

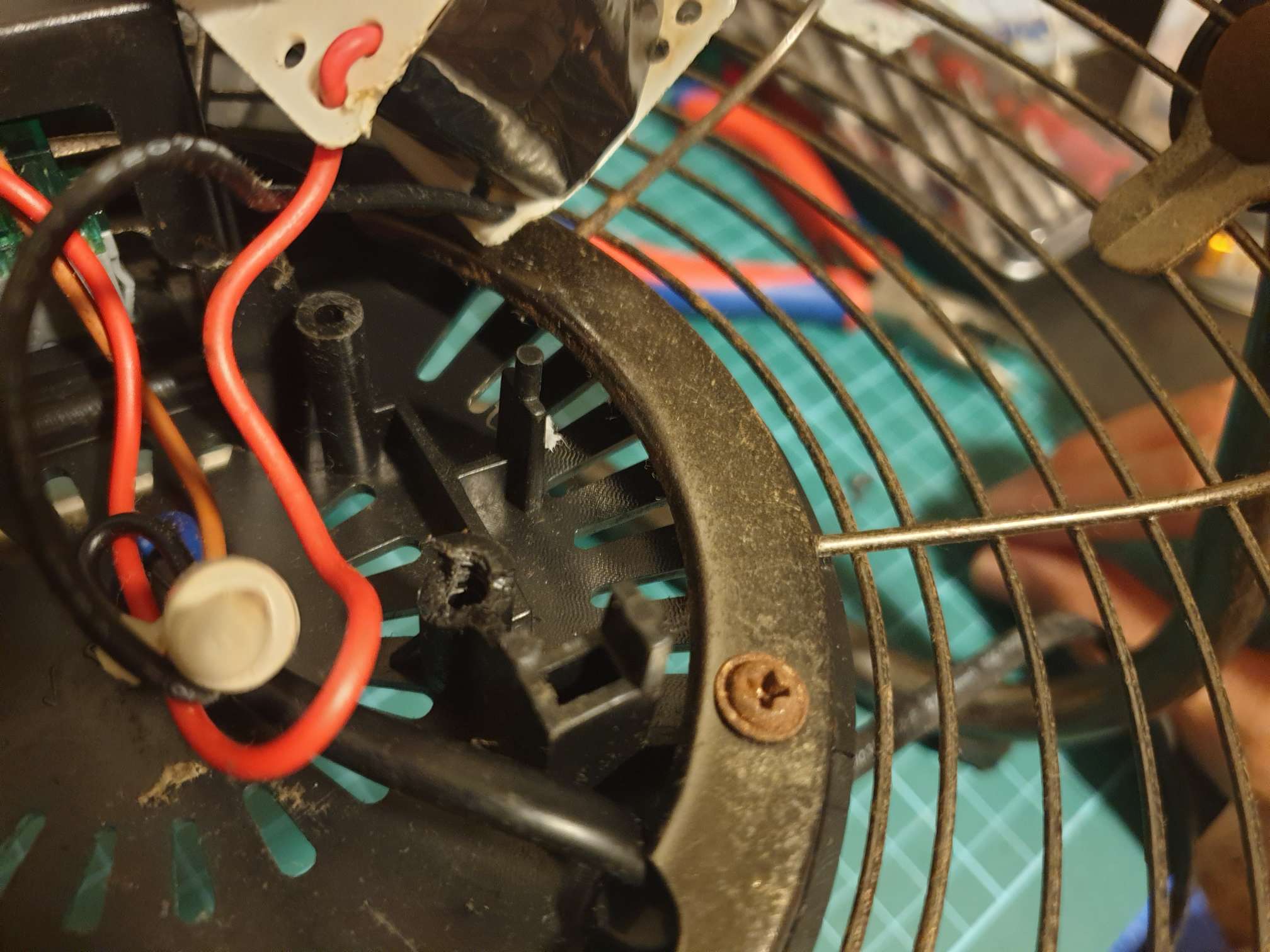

the plastic screw holes have become brittle and broke off. the screw no longer fits properly
