Item (#105)
| Type | |
|---|---|
| Brand | Bodum |
| Model | 11160 / Bistro Electric Blade Grinder |
| Serial | - |
| Colour | Black |
| Description | coffee grinder |
Other repairs
Repair (#110)
| Status | Repair not possible |
|---|---|
| Location | Yuhua |
| Date | 26 June 2026 |
Faults
No power (wall socket)
The device does not show any signs of life when plugged in and turned on.
Problem description
cannot power on
Photos
Repair Notes

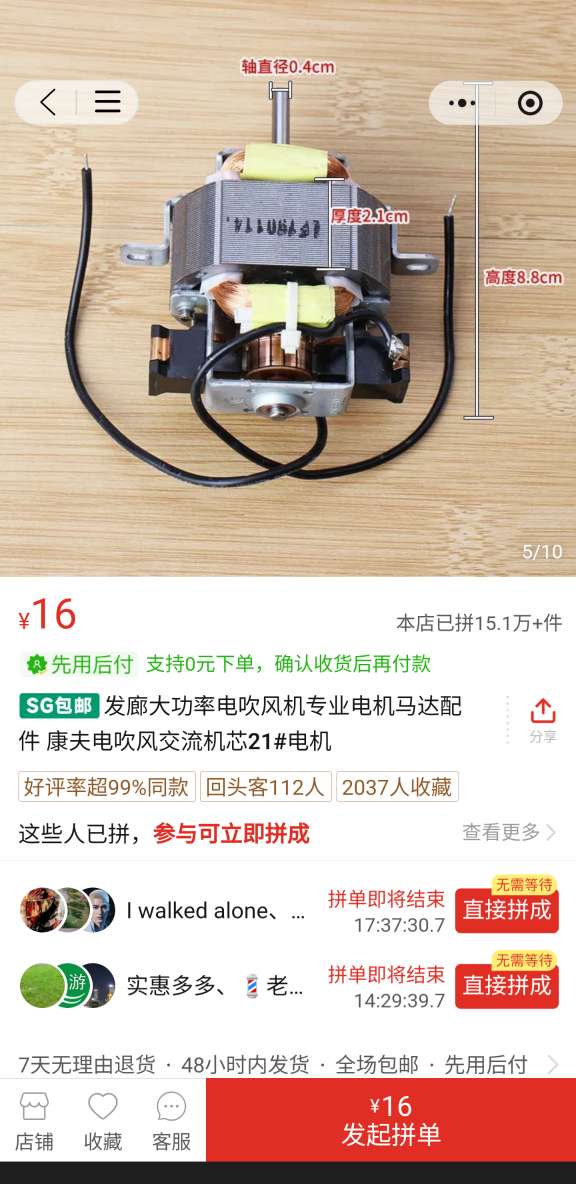

the part from china is not compatible. unable to repair. stripped for parts.
a working universal motor measures about 100 ohms and generates +- dc voltage when spun clockwise/acw

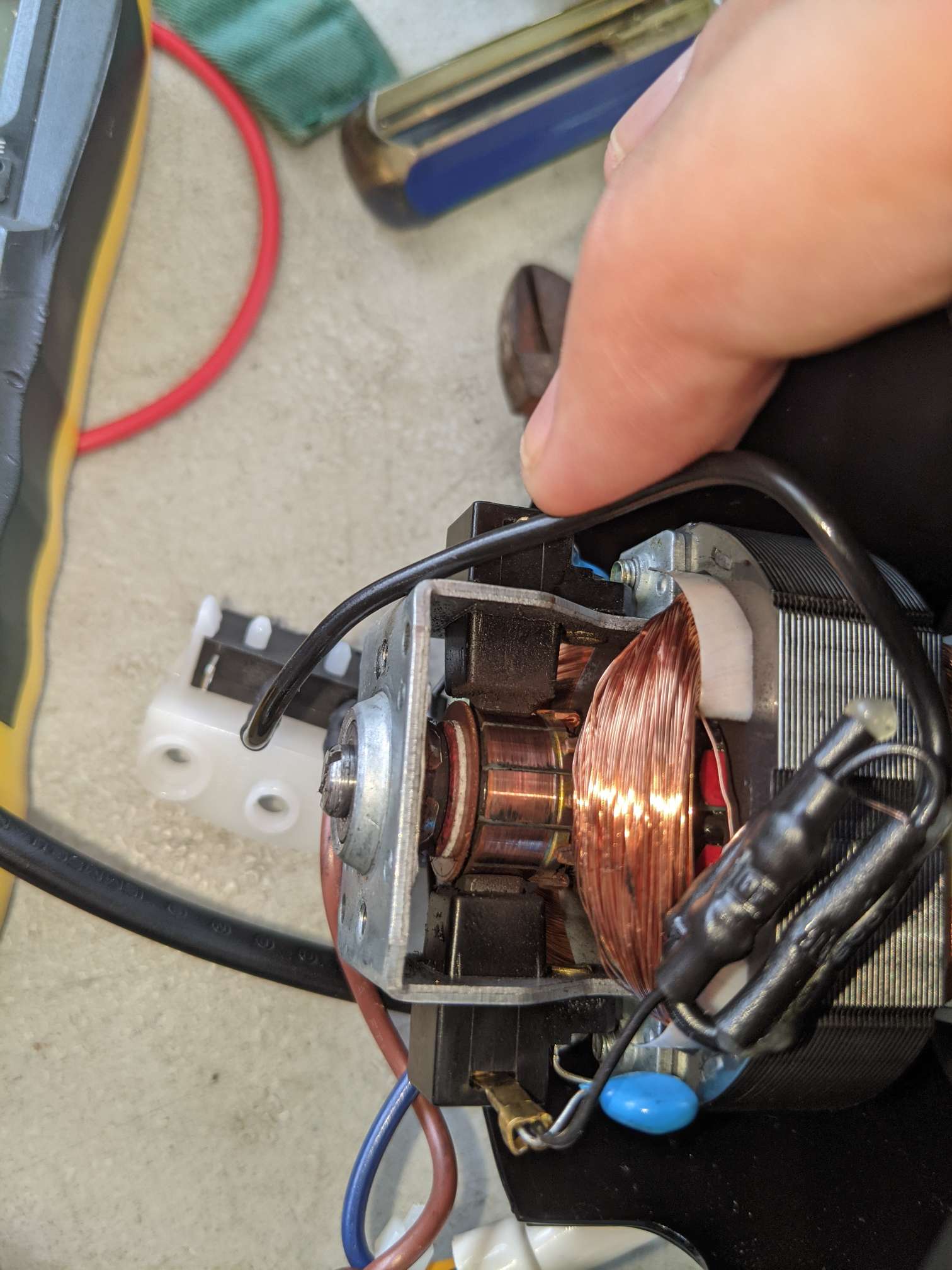

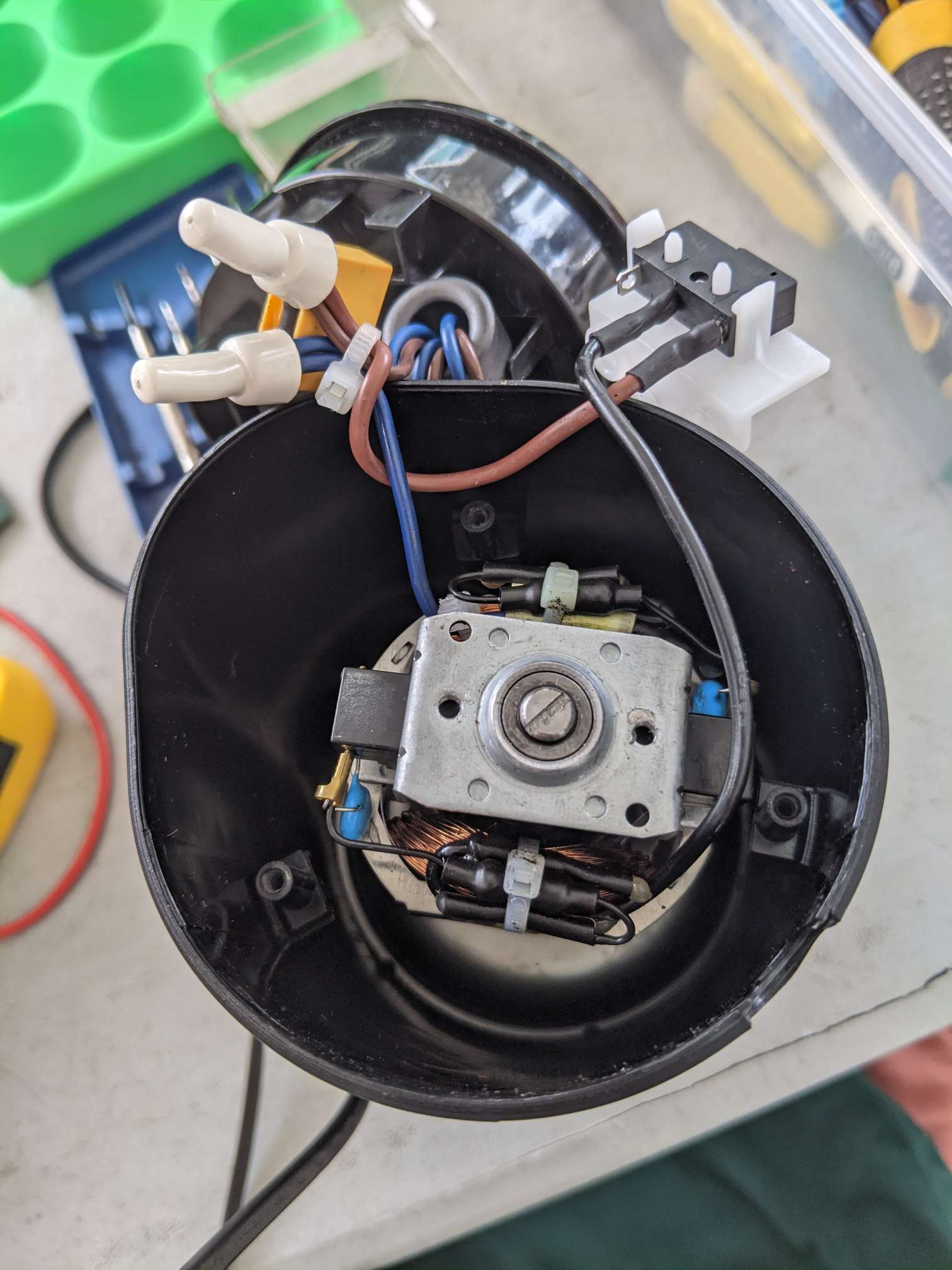

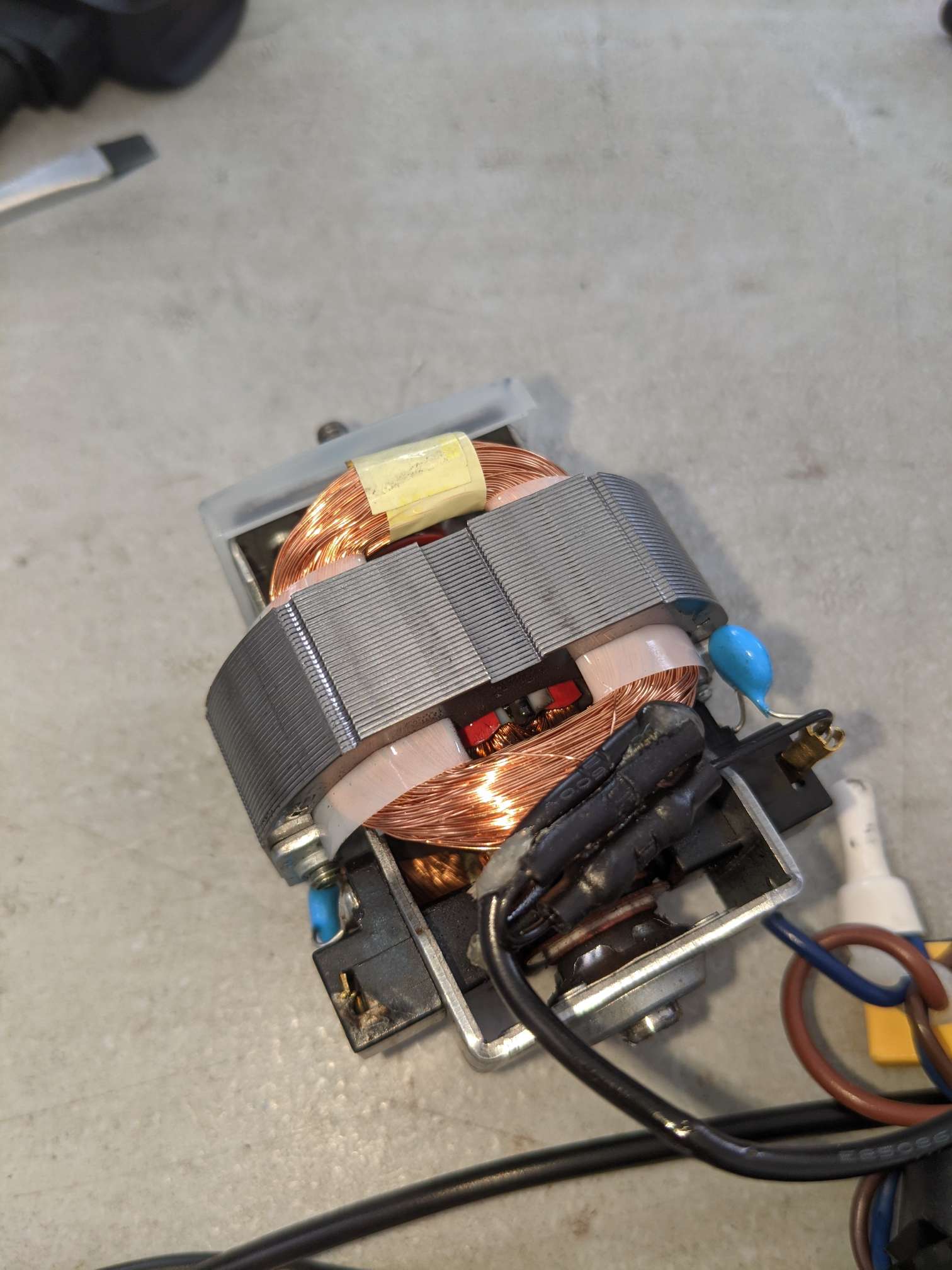

the motor coil has shorted. need to replace. it is a universal motor.

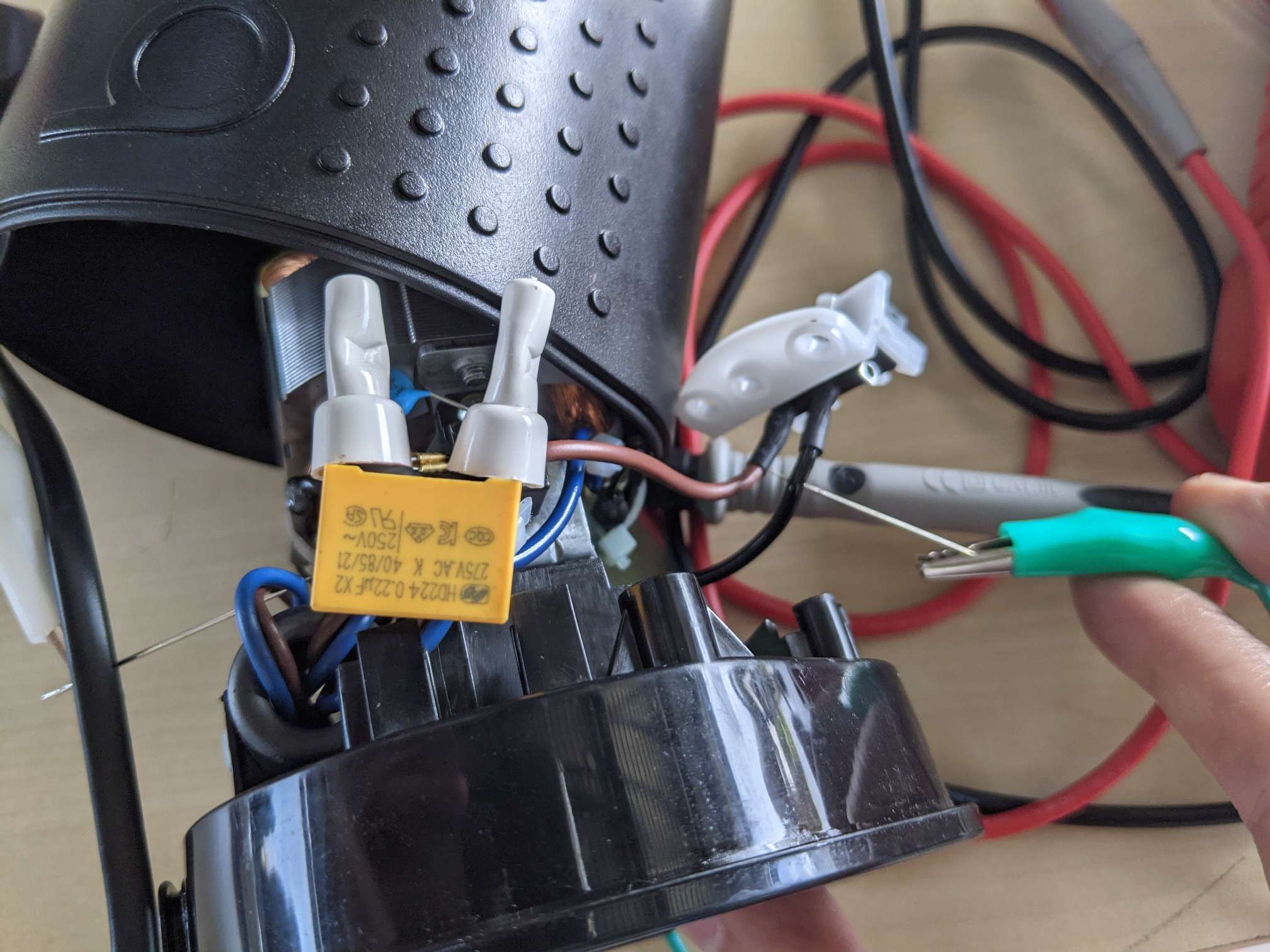

probed the AC feed into motor, it reads 240v when switch is depressed.
now suspect motor coil is faulty.

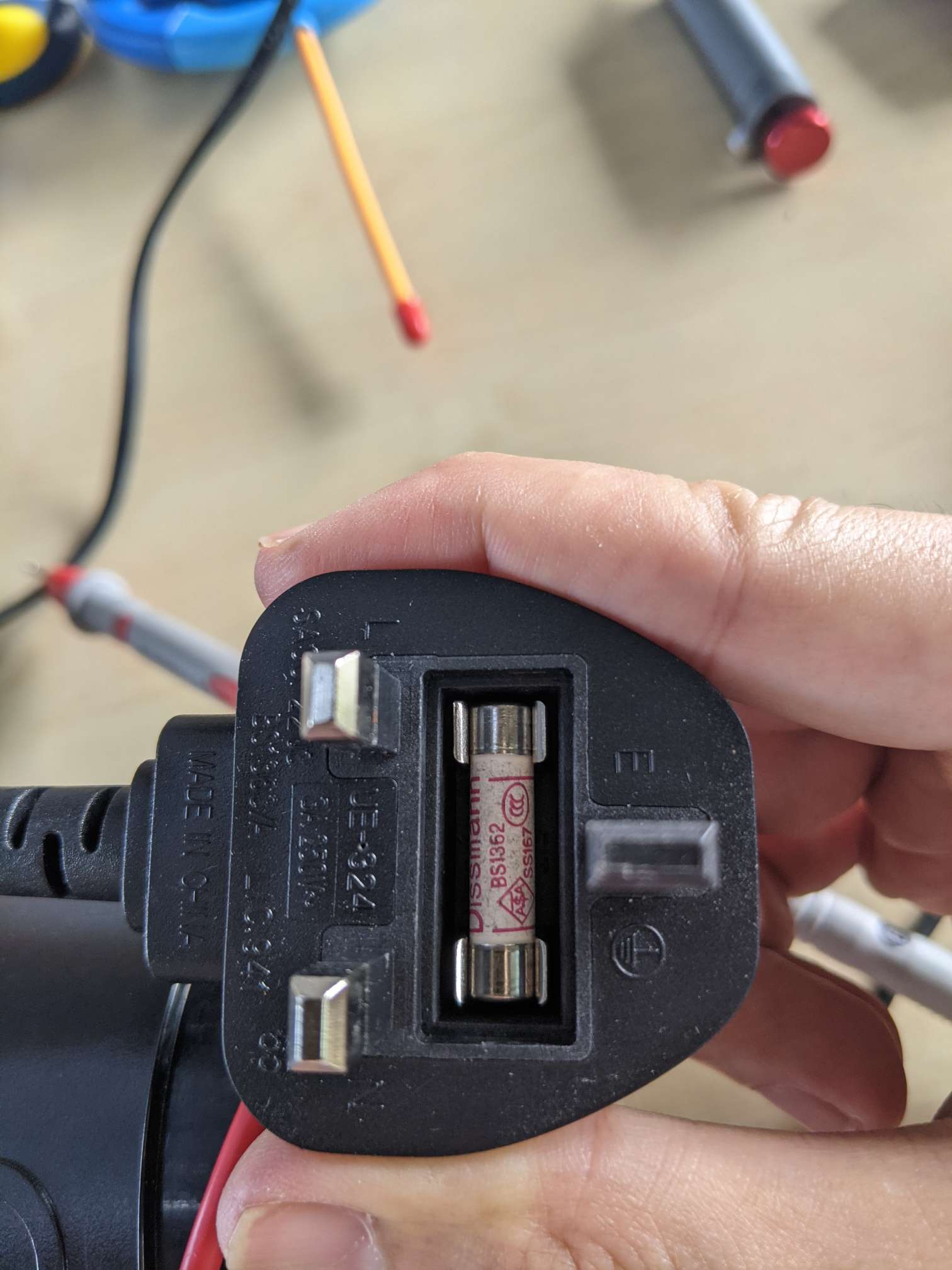

- fuse in plug works

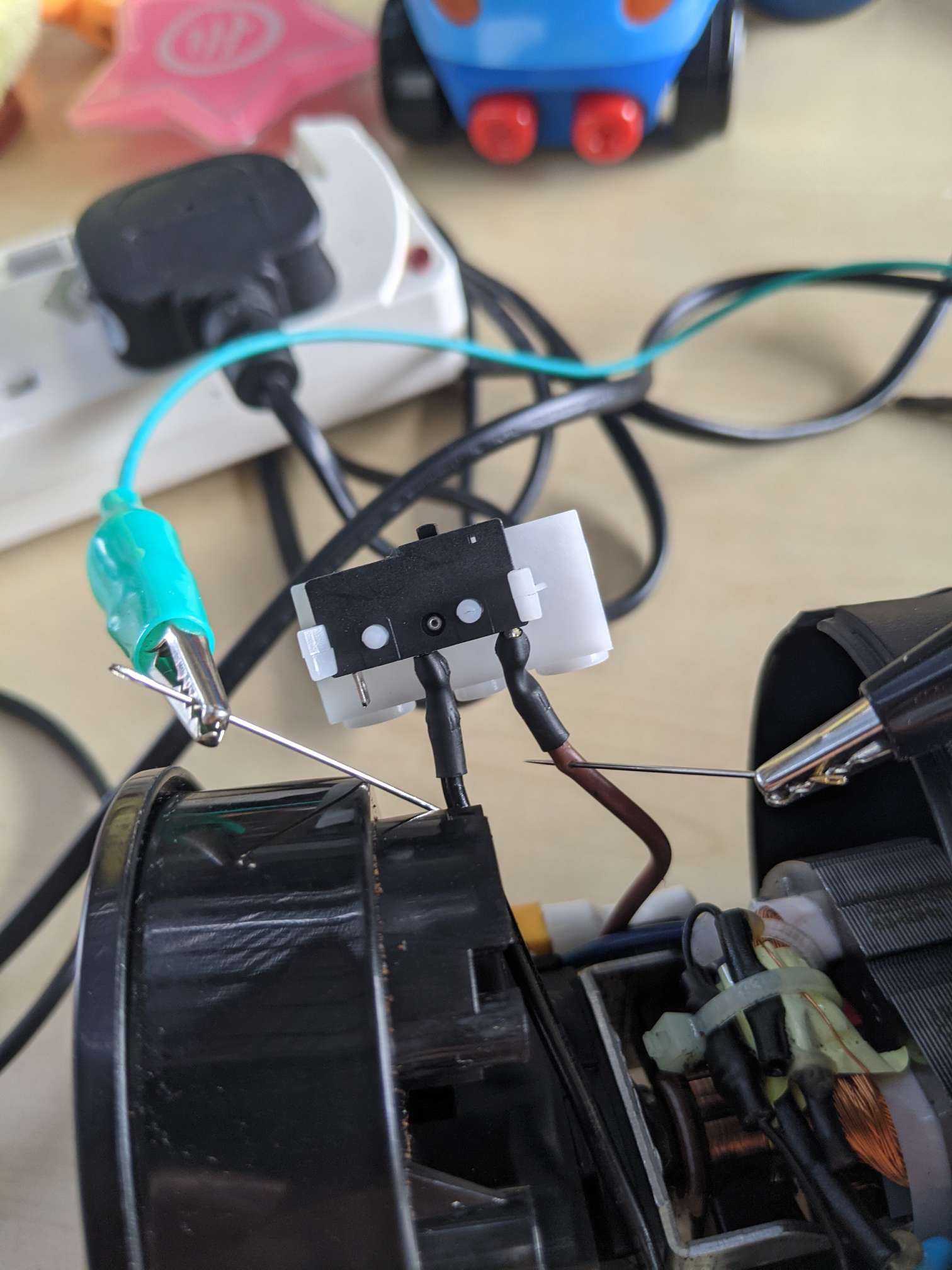

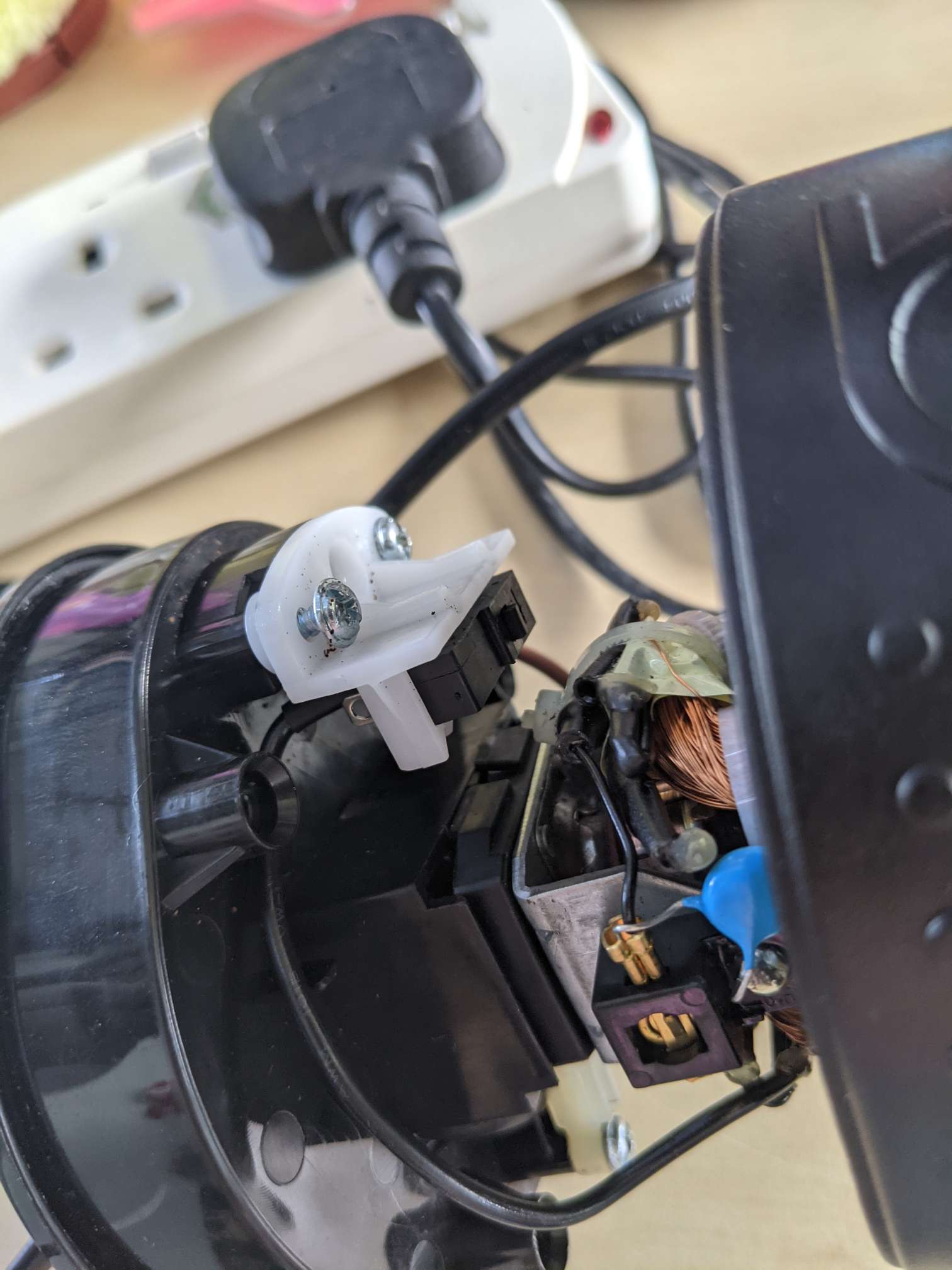

- button switch works
- measured 37v AC across motor inputs, this seems unusual
